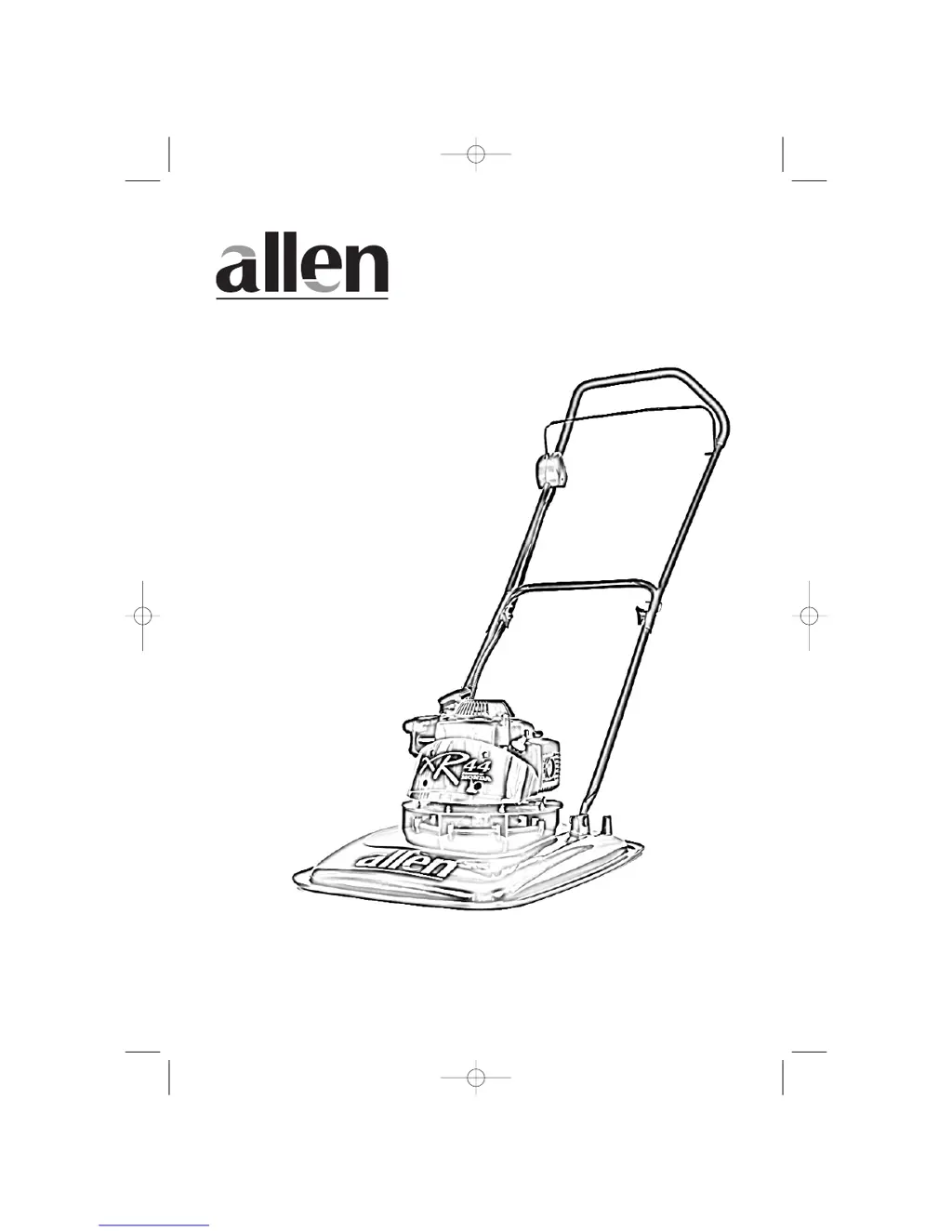

ISSUE 16.03.09 PART NUMBER: 111-1519 (C)
CODE FROM SERIAL NO.
184E 290000001
XR44 Hovertrim
OWNER'S HANDBOOK
Manufactured by Hayter Limited
111-1519 (C) 19/3/09 2:31 pm Page 1.1

Table of Contents

Questions and Answers

  • M
    Michael WhiteheadAug 12, 2025
    Why will my Allen Lawn Mower engine not start?
    • C
      campbellmaryAug 13, 2025
      If your Allen Lawn Mower engine won't start, several factors could be at play. First, ensure the engine isn't under load by raising the height of cut. Next, check the fuel: if it's incorrect or contaminated, drain the tank and refill with the correct fuel. Also, make sure the spark plug lead is securely connected and the engine brake is released by operating the engine brake lever. Inspect the spark plug for faults, cleaning, adjusting the gap, or replacing it if necessary. Confirm the fuel tank is full and the throttle is set to the ‘start’ position.
  • M
    Mr. Robert Gomez DDSAug 16, 2025
    What to do if my Allen Lawn Mower engine runs then stops?
    • K
      Kristen BarnesAug 16, 2025
      If your Allen Lawn Mower engine runs and then stops, the issue might stem from fuel delivery. Ensure the fuel tank is adequately filled to avoid fuel starvation. Check the fuel cap vent to make sure it is not blocked, and clean it if necessary. Also, verify that the fuel tap is open, if your model is fitted with one.
  • L
    Lisa SchmidtAug 20, 2025
    How to fix an Allen Lawn Mower engine that runs rough?
    • H
      hernandezjoshuaAug 20, 2025
      If your Allen Lawn Mower engine is running rough, start by checking the spark plug lead to ensure it hasn't become disconnected during use; reconnect it if necessary. Inspect the spark plug itself for any faults, and clean, adjust the gap, or replace it as needed. Also, see if the air cleaner is blocked and service it if it is. Finally, check the fuel quality; if it's incorrect or contaminated, drain the tank and refill with the correct fuel.
  • J
    James LewisAug 25, 2025
    Why is my Allen Lawn Mower engine smoking?
    • M
      millerelizabethAug 25, 2025
      If your Allen Lawn Mower engine is emitting smoke, it could be due to a couple of reasons. First, verify the oil level, as an excess of oil can cause smoking. Additionally, check the air cleaner cartridge for oil saturation or blockages, and service the air cleaner as needed.
  • T
    Theresa ThomasAug 27, 2025
    How to troubleshoot an Allen Lawn Mower engine that will not turn over?
    • A
      Anthony DavisAug 27, 2025
      If your Allen Lawn Mower engine will not turn over, make sure the engine stop lever is operated. Check to ensure the oil level is correct. Also, inspect the area under the deck for any obstructions and remove them.
  • M
    mreyesAug 31, 2025
    What causes excessive vibration in an Allen Lawn Mower?
    • T
      Tiffany HallAug 31, 2025
      If your Allen Lawn Mower vibrates excessively, check and tighten any loose mounting bolts. Also, inspect the cutterbar bolt and tighten if necessary. If the vibration persists, the cutterbar may be out of balance and require balancing. If these steps do not resolve the issue, it is possible that the crankshaft is bent; in this case, consult your dealer.
  • P
    Patricia JonesSep 4, 2025
    What to do for poor hovering with an Allen Lawn Mower?
    • T
      Thomas DunnSep 4, 2025
      To address poor hovering with your Allen Lawn Mower, first, for the engine running slow consult your dealer. Then, check the impeller air vents for any blockages and unblock them if necessary. Lastly, ensure the underdeck is clean.
  • J
    James MorrowSep 8, 2025
    How to fix an uneven cut with an Allen Lawn Mower?
    • R
      Robert PerrySep 8, 2025
      An uneven cut with your Allen Lawn Mower may be due to the nylon cutting line being out of balance. Replace the nylon cutting line to resolve this issue.

Summary

Main Features and Specifications

Main Features Identification

Visual guide to the main external components and controls of the XR44 Hovertrim.

Technical Specifications

Details key performance and physical attributes of the XR44 Hovertrim machine.

Introduction to the Hovertrim

Warranty Information

Limited Warranty Terms

Details the manufacturer's warranty coverage, exclusions, and claim procedures.

Safety Precautions: Preparation and Training

Safety Alert Symbol and Operator Training

Highlights safety warnings and stresses the importance of proper operator training.

Pre-Operation Safety Checks

Covers essential safety preparations, including attire, area inspection, and refueling precautions.

Safety Precautions: Operation

Operational Safety Guidelines

Provides instructions for safe operation, including handling slopes and general machine use.

Safety Precautions: Maintenance and Storage

Operational Safety Continued

Continues safety instructions for operation, including stopping the engine and handling potential issues.

Maintenance and Storage Safety

Outlines safety precautions for performing maintenance and storing the hovertrim.

Safety Symbols and Information Decals

Understanding Safety Symbols

Explains various safety symbols and their meanings to prevent injury.

Information Decals and Symbols

Details important information conveyed by decals, such as engine stop and noise levels.

Assembling the Hovertrim

Delivery Checklist

Lists items to check upon receiving the machine to ensure all parts are present.

Assembly Steps: Handlebars

Provides step-by-step instructions for assembling the lower and upper handlebars.

Before Starting the Hovertrim

Preventing Engine Damage

Advises on essential steps to prevent engine damage before initial startup.

Checking Oil and Fuel Type

Details procedures for checking the engine oil level and the correct fuel type to use.

Operating the Hovertrim: Footstop Positions

Footstop Position Guide

Illustrates and explains the different positions of the footstop for various operations.

Operating the Hovertrim: Controls and Starting

Control Lever Functionality

Ensures the engine stop lever functions correctly before operation.

Engine Starting Procedure

Guides the user through the steps to start the hovertrim engine, including choke usage.

Operating the Hovertrim: Cutting Techniques

Starting and Warming Up Engine

Details the final steps for starting the engine and warming it up properly.

Cutting Grass on Flat Ground

Provides instructions for cutting grass on level terrain.

Cutting Grass on Slopes and Banks

Offers guidance on safely cutting grass on inclined surfaces.

Operating the Hovertrim: Stopping and Adjustments

Stopping the Engine Safely

Explains how to safely stop the hovertrim engine, including emergency procedures.

Cutting Height and Line Replacement

Details how to adjust cutting height and replace the nylon cutting line.

Pre-Trimming Safety Checks

Emphasizes safety checks of the area before commencing trimming operations.

Hovertrim Maintenance: Engine and Carburetor

Engine Overview and Carburetor Adjustments

Covers basic engine maintenance and carburetor adjustments, recommending dealer service.

Hovertrim Maintenance: Air Cleaner and Spark Plug

Air Cleaner and Spark Plug Service

Provides instructions for servicing the air cleaner and replacing the spark plug.

Hovertrim Maintenance: Cleaning and Checks

Engine Cleaning and Deck Maintenance

Details how to keep the engine and deck housing clean for optimal performance.

Bolt Tightening and Oil Service Checks

Covers checking bolt tightness and performing routine oil checks.

Hovertrim Maintenance: Oil Service and Storage

Engine Oil Change Procedure

Explains the engine oil change procedure and steps for preparing the machine for storage.

Storage Preparation Guidelines

Provides instructions for preparing the hovertrim for long-term storage to prevent damage.

EC Declaration of Conformity

Trouble Shooting Guide

Common Problems and Remedies

Lists common problems, their possible causes, and recommended remedies for the hovertrim.
