PRODUCT DIMENSIONS

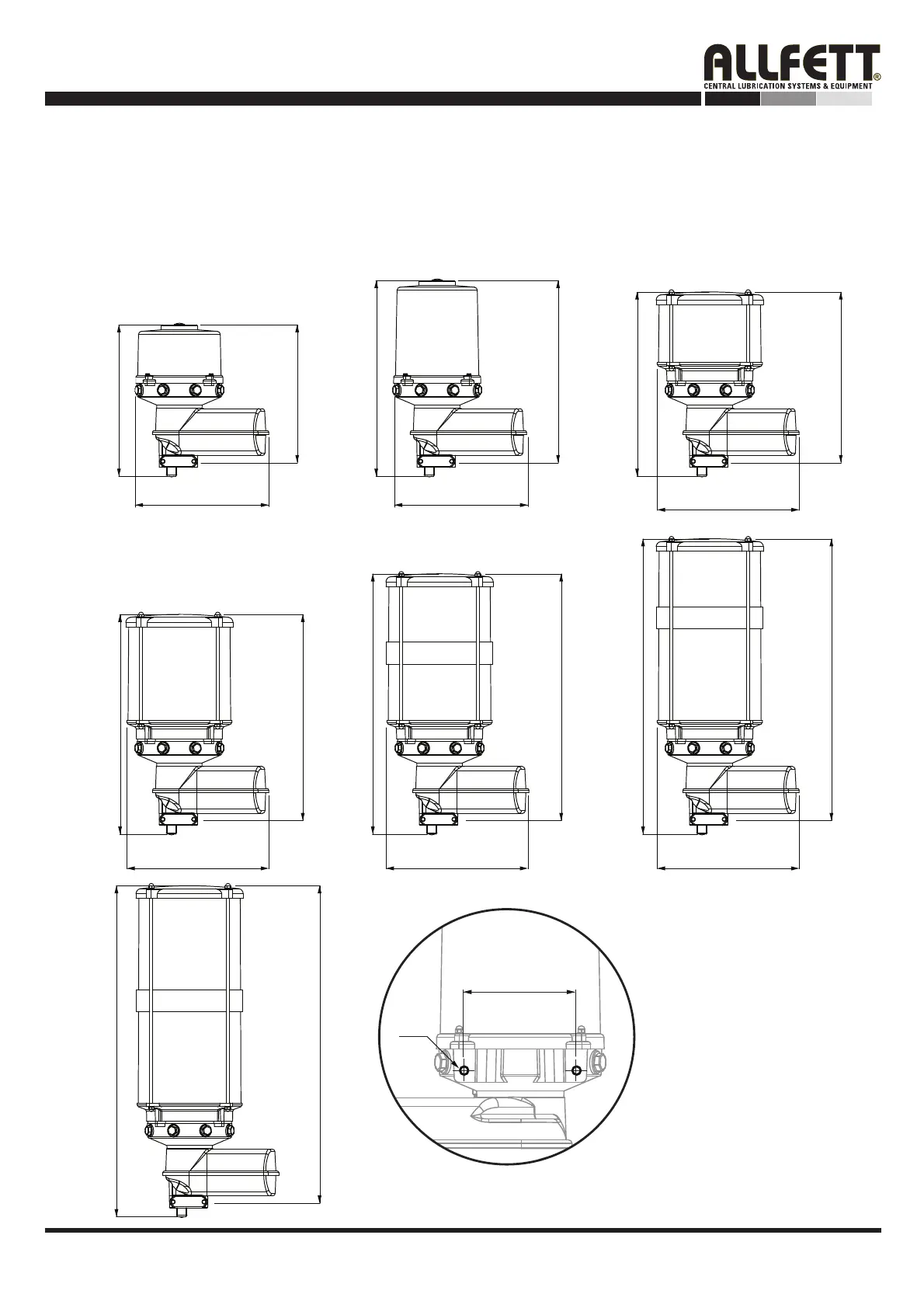

Technical drawings below represents the ALL-1 pump models which has different reservoir capacities.
Dimension unit is milimeter.
Pump body
assembly
holes dimension
12 Liters
658 mm
(With integrated controller)
(Standard)
633 mm
10 Liters
588 mm
(With integrated controller)
(Standard)
563 mm
8 Liters
519 mm
(With integrated controller)
(Standard)
494 mm
6 Liters
440 mm
(With integrated controller)
(Standard)
415 mm
1.5 Liters
(Standard)
283 mm
308 mm
(With integrated controller)
395 mm
(With integrated controller)
(Standard)
370 mm
3.3 Liters
4 Liters
370 mm
(With integrated controller)
(Standard)
345 mm
120 mm
Ø9.1
263 263
280
280 280 280
