Snap Button
UP

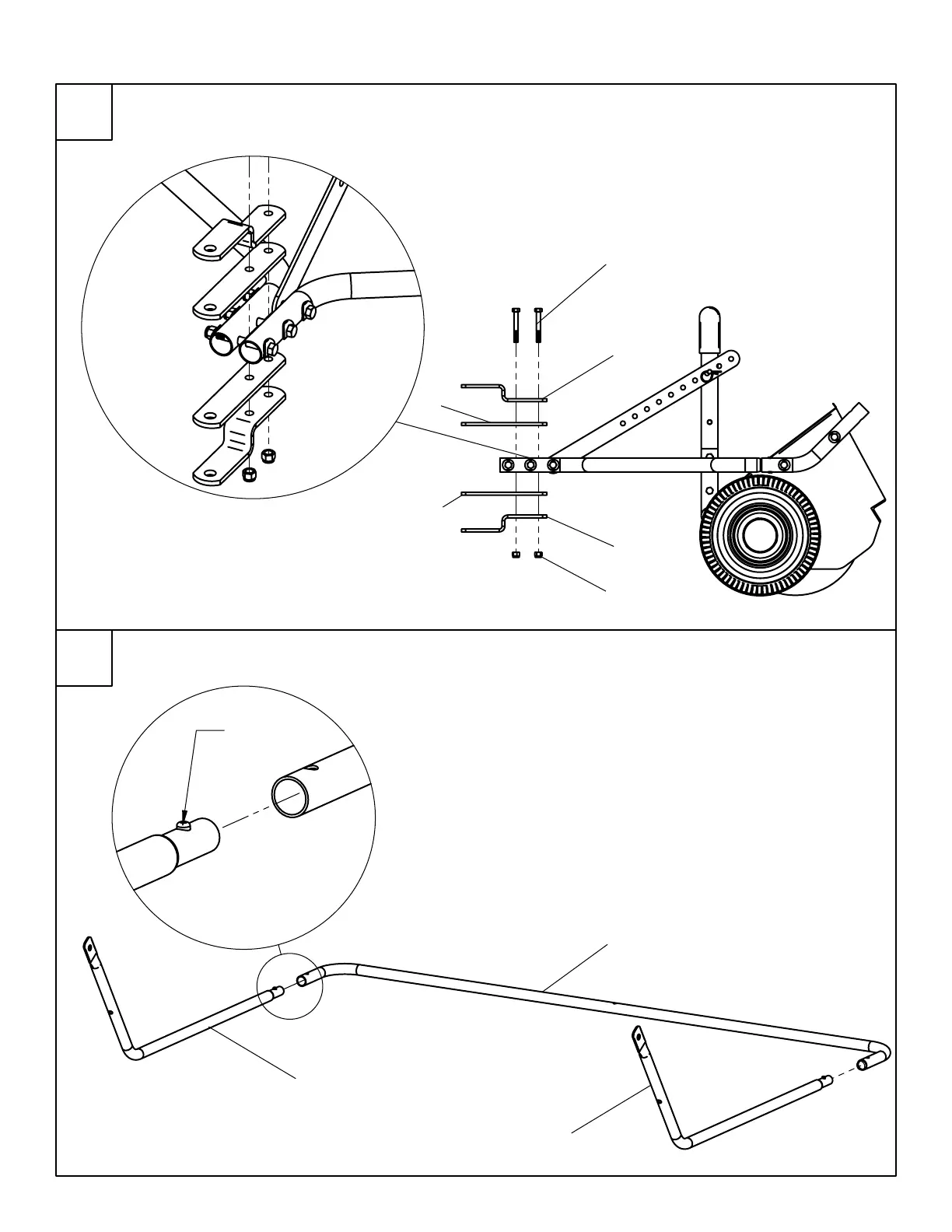

Install Clevis Bars as shown (5 & 6); Clevis bolts (23) pass between Hitch Tube bolts.
Tighten Hitch Tube hardware first, then tighten Clevis hardware.
Insert Bottom Frame Tubes (38) into Center Frame Tube (40) and snap into position.
(Note that snap buttons are oriented up)
