AllFitHD AF-5026LS - Tension Tube and Bag Securing

37
41
40
Velcro Tab
37
DETAIL E
SCALE 1 : 2
40
G
DETAIL G
SCALE 1 : 4
Opening
R
DETAIL R
SCALE 1 : 1
T
DETAIL T
SCALE 1 : 1

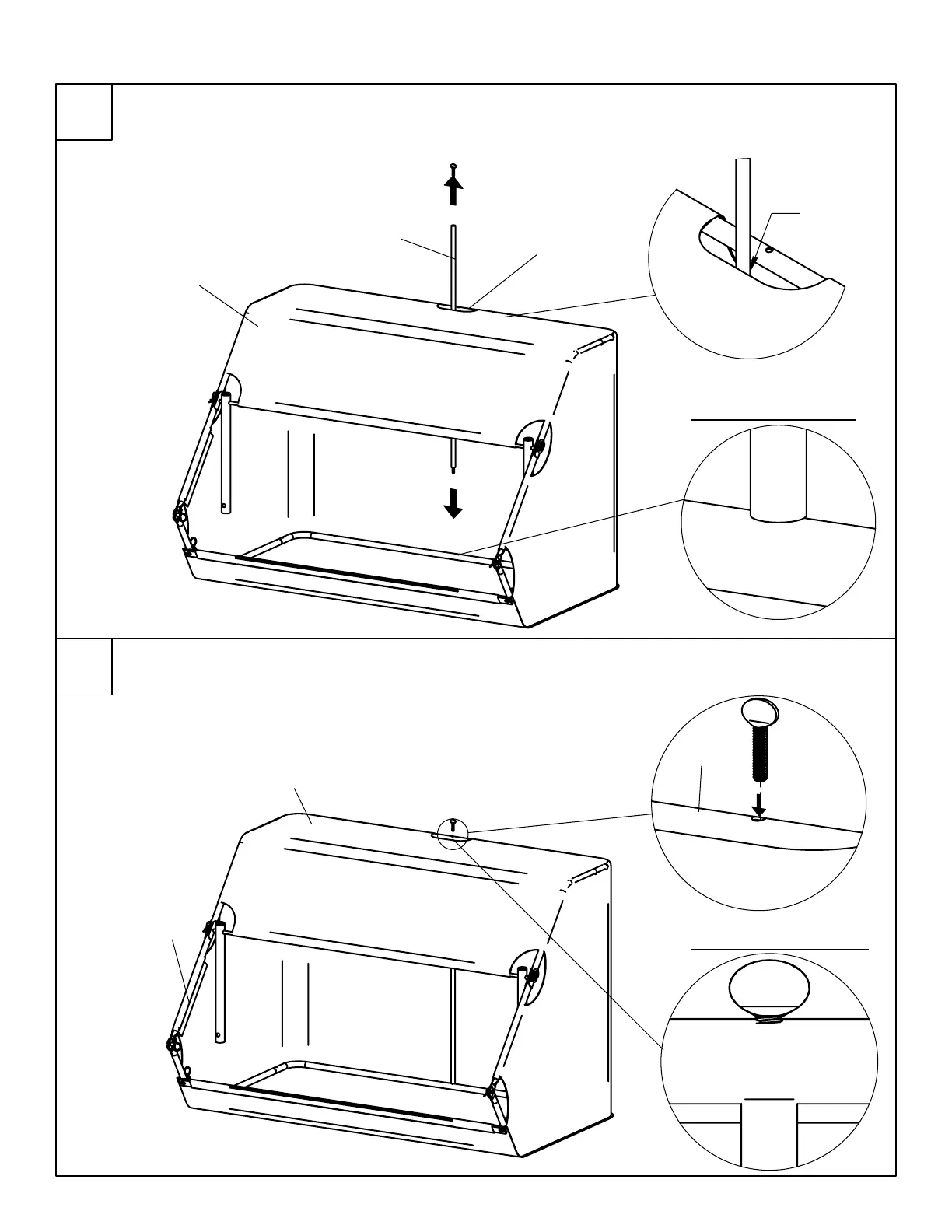

First, unscrew Thumb Screw from Tension Tube Assembly (41). Next, Hold Hopper Bag (37)
open and carefully insert Tension Tube Assembly (41) through opening in Hopper Bag and
into hole in bottom Center Frame Tube (40). Pull top Center Frame Tube over tension tube
and align holes.
Insert thumb screw that came with Tension Tube Assembly through top Center Frame Tube
(40) and screw into top of Tension Tube. Secure Hopper Bag around Top Frame Tubes
with Velcro tabs.
SHOWN INSTALLED
SHOWN INSTALLED
9
Assembly Instructions
13
