AllFitHD AF-5026LS - Hopper Frame and Pivot Installation

N
44
48
37
48
42
46
36 36
48
46
39
37
39
Snap Button
Down
39
DETAIL N
SCALE 1 : 9
44
48
38
39

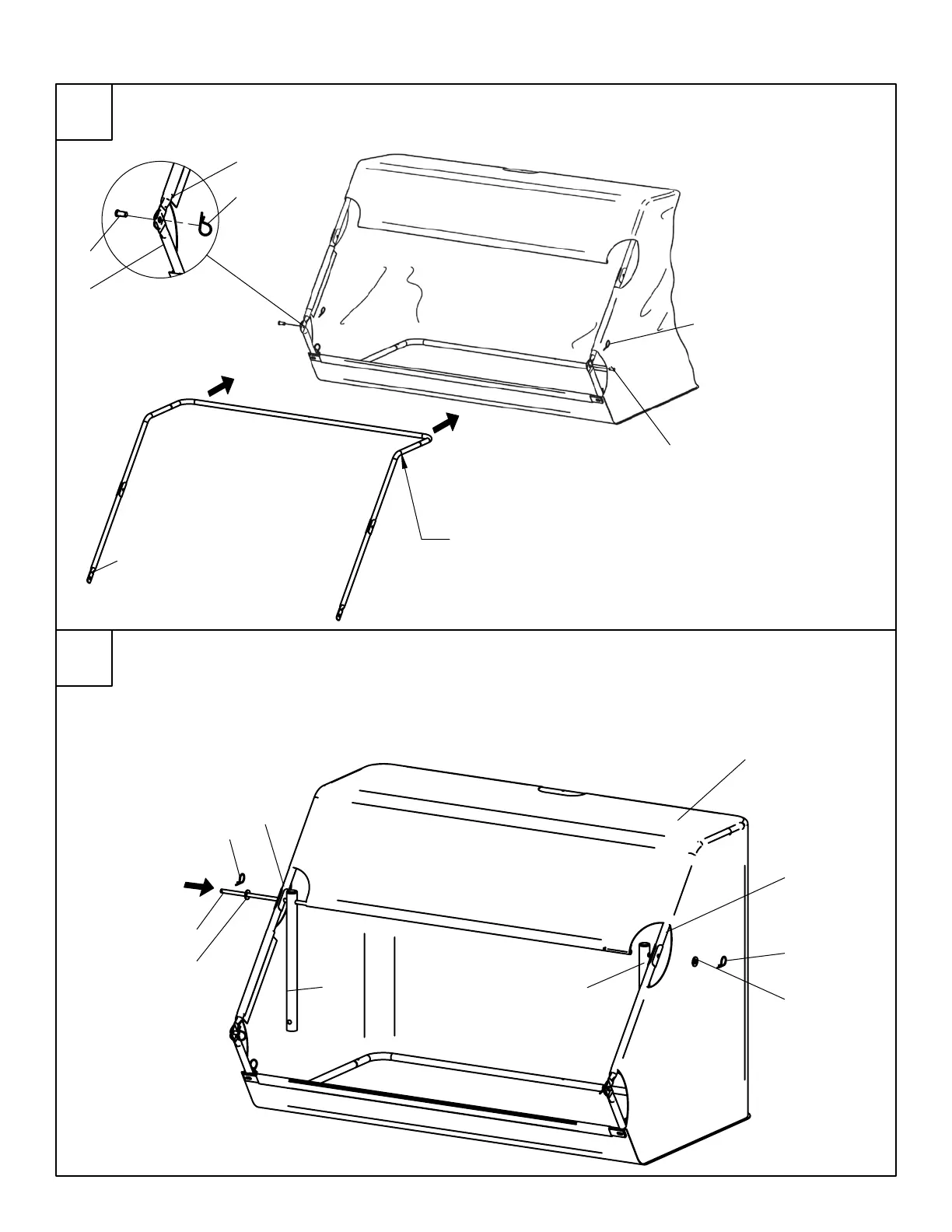

First, Place top frame assembly into Hopper Bag (37). Second, Install Clevis Pins (44)
through Top Frame Tubes (39) and Bottom Frame Tubes (38) and secure with Hairpins (48).
Slide Hopper Pivot Rod (42) through Top Frame Tube (39) and Connecting Tube (36), then
through pocket of Hopper Bag (37), and then through both Connecting Tube (36) and Top
Frame Tube (39) on other side. Secure both ends with Washer (46) and Hairpin (48).
Frame into Hopper
44
48
8
Assembly Instructions
11
12
