37
41
M
45
48
37
40
39
39
DETAIL D
SCALE 1 : 4
Snap Button
DOWN
Snap Button
UP
Frame into Hopper
38
38
DETAIL M
SCALE 1 : 6
45
48

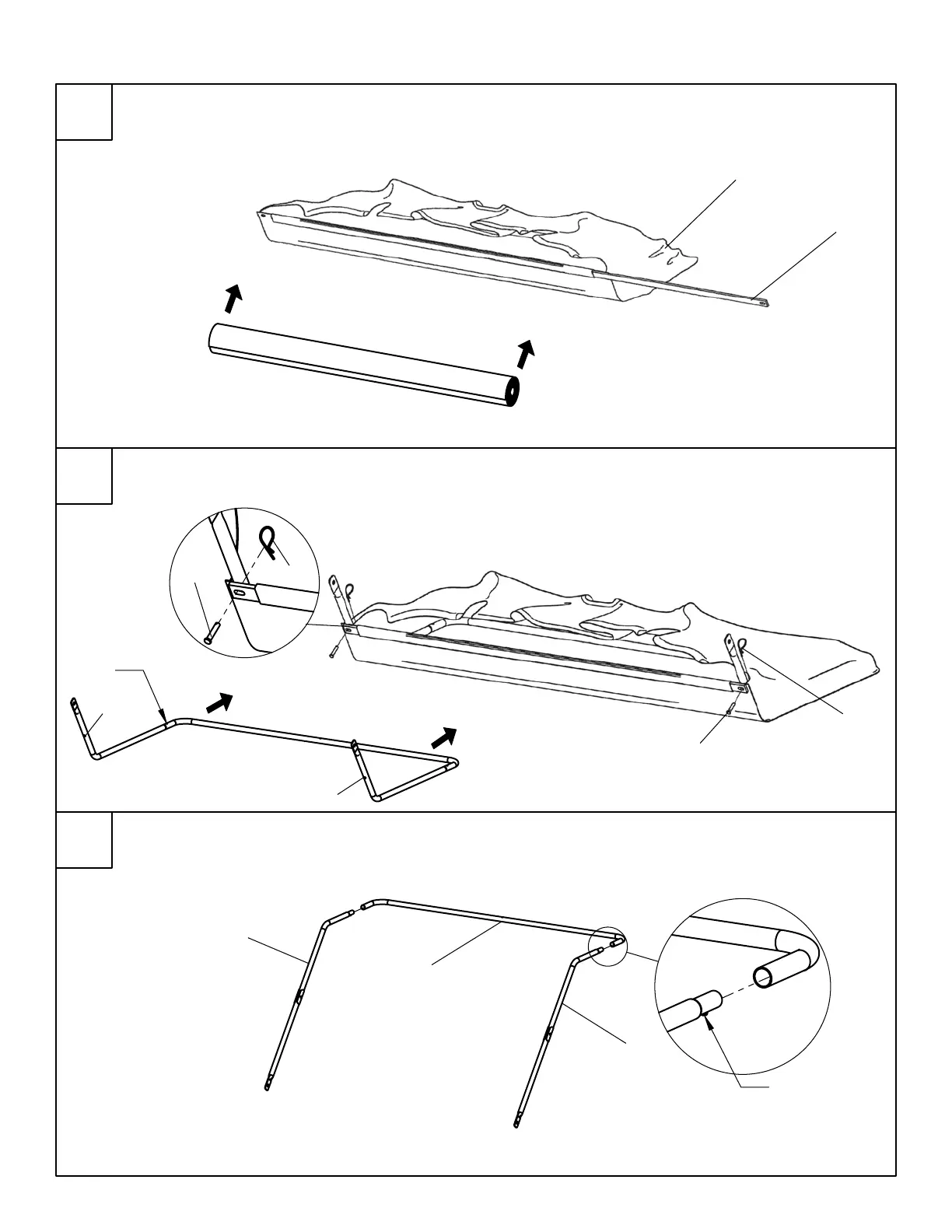

Unroll and flatten hopper bag (37) from shipping state. Then, slide
Hopper Stop Bar (43) into
pocket of Hopper Bag as shown.
Insert Top Frame Tubes (39) into Center Frame Tube (40) and snap into position.
(Note that snap buttons are oriented down)
Unroll Hopper Bag
37
43
First, place bottom frame assembly into bottom of Hopper Bag (37).
Second, Install Clevis
Pins (45) through Hopper Bag (37), Hopper Stop Bar (41), and
Bottom Frame Tubes (38)
then secure with Hairpins(48).
7
Assembly Instructions
8
10
9
