4

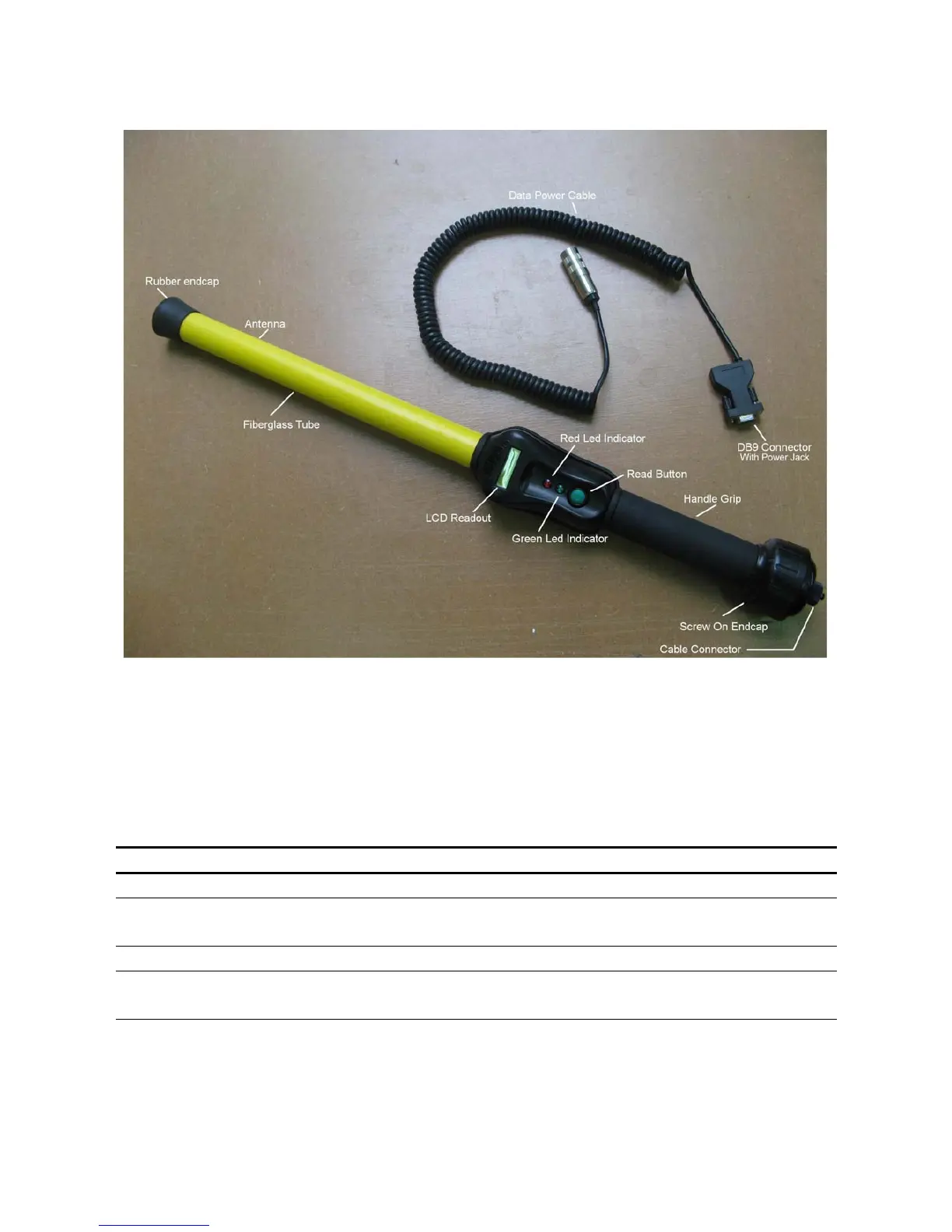

Figure 1 - Stick Reader Features and User Interface
Stick Reader User Interface
Figure 1 illustrates the Stick Reader’s features that comprise the user interface and
that are pertinent to its operation. Each feature and its corresponding functional
description is described in Table 1 below.
Table 1 - Stick Reader Features and Descriptions of Use
Feature Description of Use
Antenna
[1]
Emits activation signal and receives transponder signal
Red LED Indicator Illuminates whenever antenna is emitting activation
signal (when green button is pressed)
Green LED Indicator Illuminates whenever a transponder has been read
Audible Beeper
[1]
Beeps once on first transponder reading and twice for
repeat
[1]
Item is internal to enclosure and cannot be seen.
