Chapter 1: Overview
2
The AT-MC10x Series media converters can be installed on a desktop or
in an AT-MCR12 chassis, AT-WLMT-10 Wallmounting Bracket, or
AT-TRAY4 Rackmount Tray. The AT-MC10x Series media converters are
easy to install and do not require any software configuration or
management.

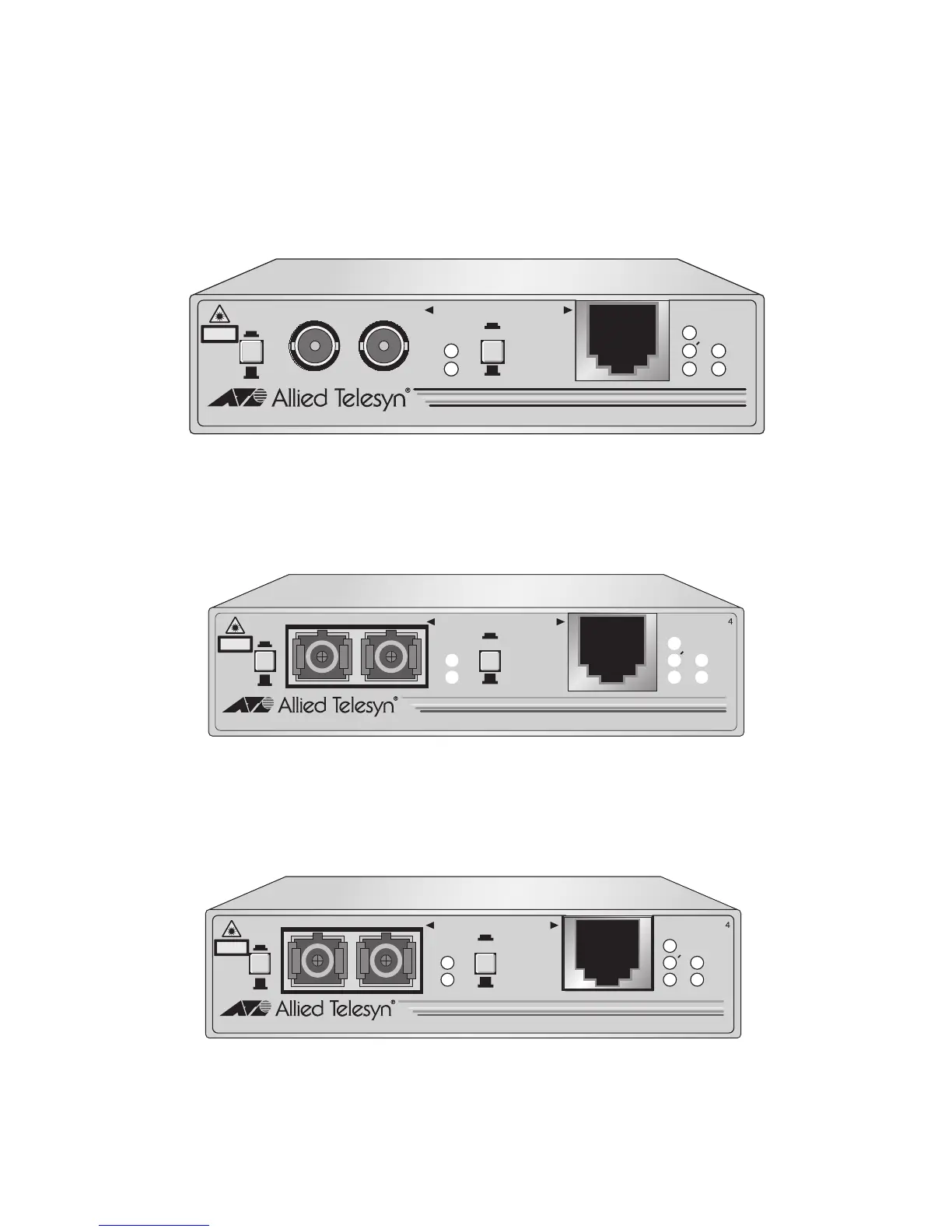

Figure 1 displays an AT-MC101XL Media Converter.
Figure 1. AT-MC101XL Model
Figure 2 displays an AT-MC102XL Media Converter.
Figure 2. AT-MC102XL Model
Figure 3 displays an AT-MC103XL Media Converter.
Figure 3. AT-MC103XL Model
