Allied 895 - Assembly; Hydraulic Cylinder Assembly

38
Assembly
Assembly - 895 & 895TSL

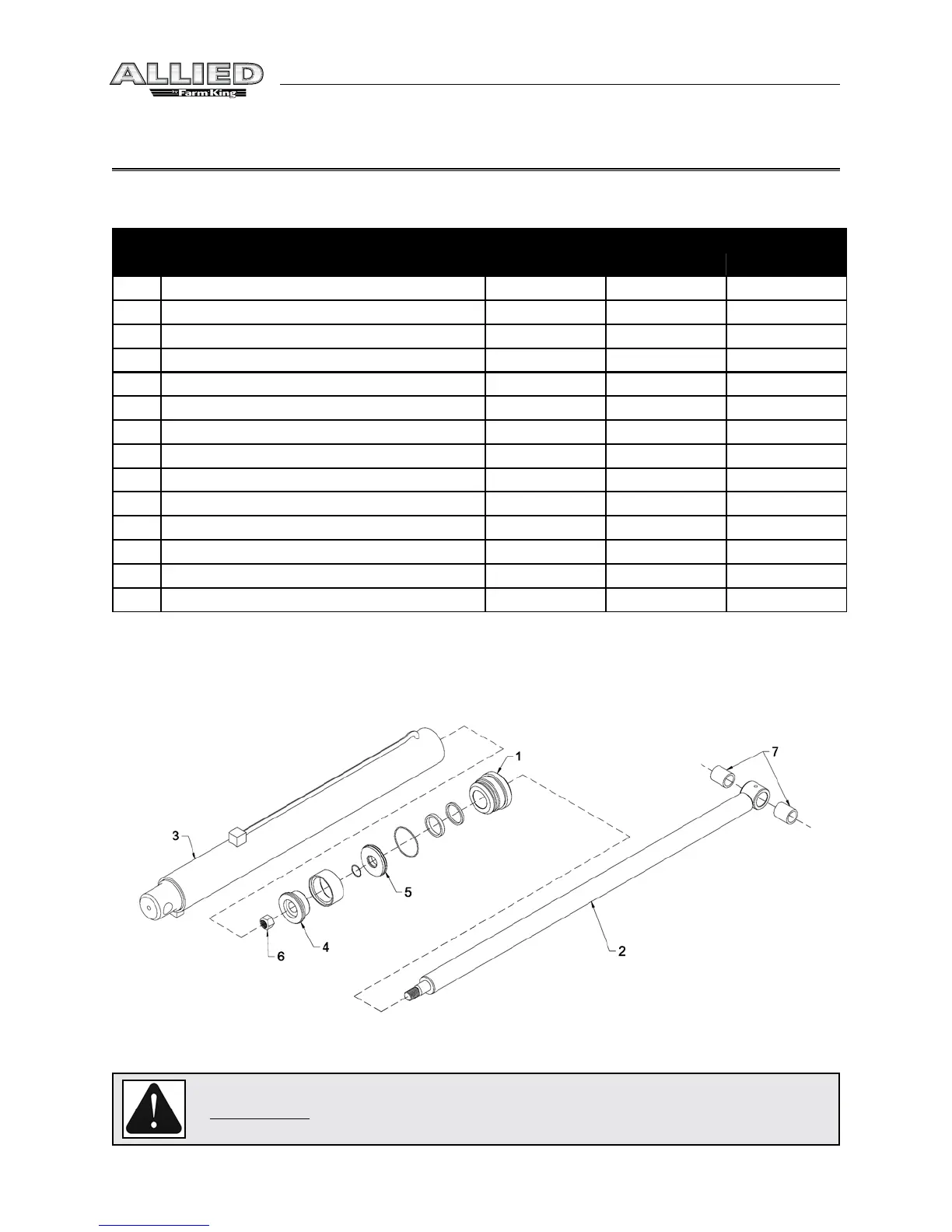

Hydraulic Cylinder Assembly
Item Description Bucket Cylinders Lift Cylinders
Reg TSL
Diameter 3.00" 3.00" 3.50"
Length of Stroke 26.50" 24.75" 32.50"
Retracted Length 39.25" 53.25" 45.25"
Extended Length 65.75" 78.00" 77.75"
Cylinder Assembly No. 24417 24734 24774
Seal Kit No. X1424 X1424 X1425
Shaft Diameter 1.75" 1.75" 2.00"
1 Head Plate 24606 24606 24430
2 Shaft Weldment 113158 114135 114719
3 Cylinder Tube Weld't 24418 24733 24785
4 Piston Half (wide) 112862 112862 112940
5 Piston Half (narrow) 112863 112863 112941
6 Self-Locking Nut 810457 810457 810457
7 Shaft Bushing 113766 113578 113633
1. Bucket cylinder shown.
2. All cylinder seals are contained in corresponding seal kit.
CAUTION
Maximum pressure - 2750 psi
