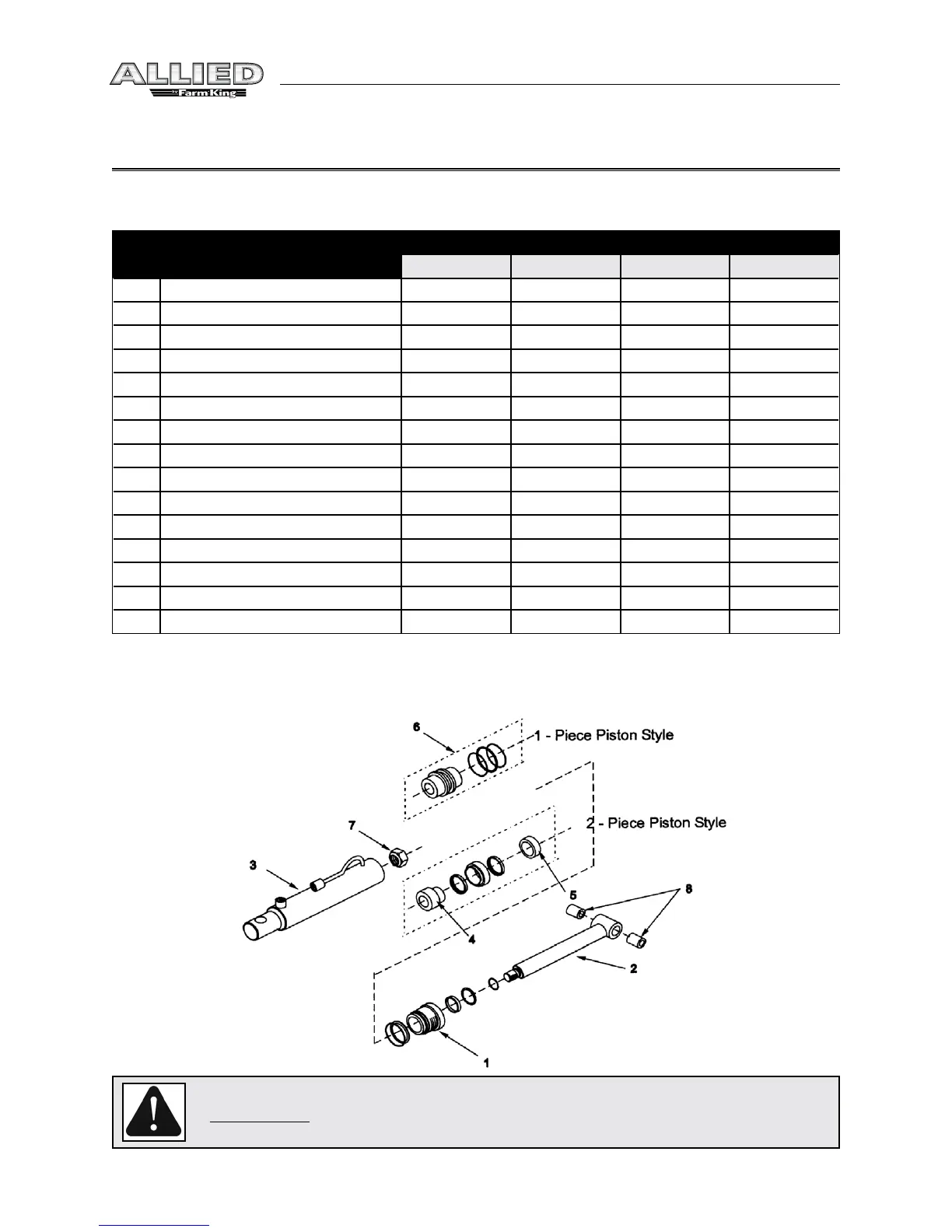

Assembly - 95 & 195 Loader
Hydraulic Cylinder Assembly
Item Description
Bucket Cylinders Lift Cylinders
95 195 95 195
Diameter 1.50 2.00 1.50 2.00
Length of Stroke 13.25 13.38 14.50 15.00
Retracted Length 21.50 23.63 22.50 25.00
Extended Length 34.75 37.00 37.00 40.00
Cylinder Assembly No. 24502 24534 24503 25384
Seal Kit No. X1401 X1348 X1401 X1348
Shaft Diameter 1.0 0 1.25 1.0 0 1.25
1 Head Plate 24517 24516 24517 24516
2 Shaft Weldment 113555 113559 113361 117125
3 Cylinder Tube Weld't 24501 24532 24500 24977
4 Piston Half (wide) 114520 114520
5 Piston Half (narrow) 114521 114521
6 Piston (solid) 113412 113412
7 Self-Locking Nut 81988 812655 81988 812655
8 Shaft Bushing 113576 113576
1. Bucket cylinder shown.
2. All cylinder seals are contained in corresponding seal kit.
CAUTION
Maximum pressure - 2750 psi
