506724-01Page 34 of 57 Issue 1108

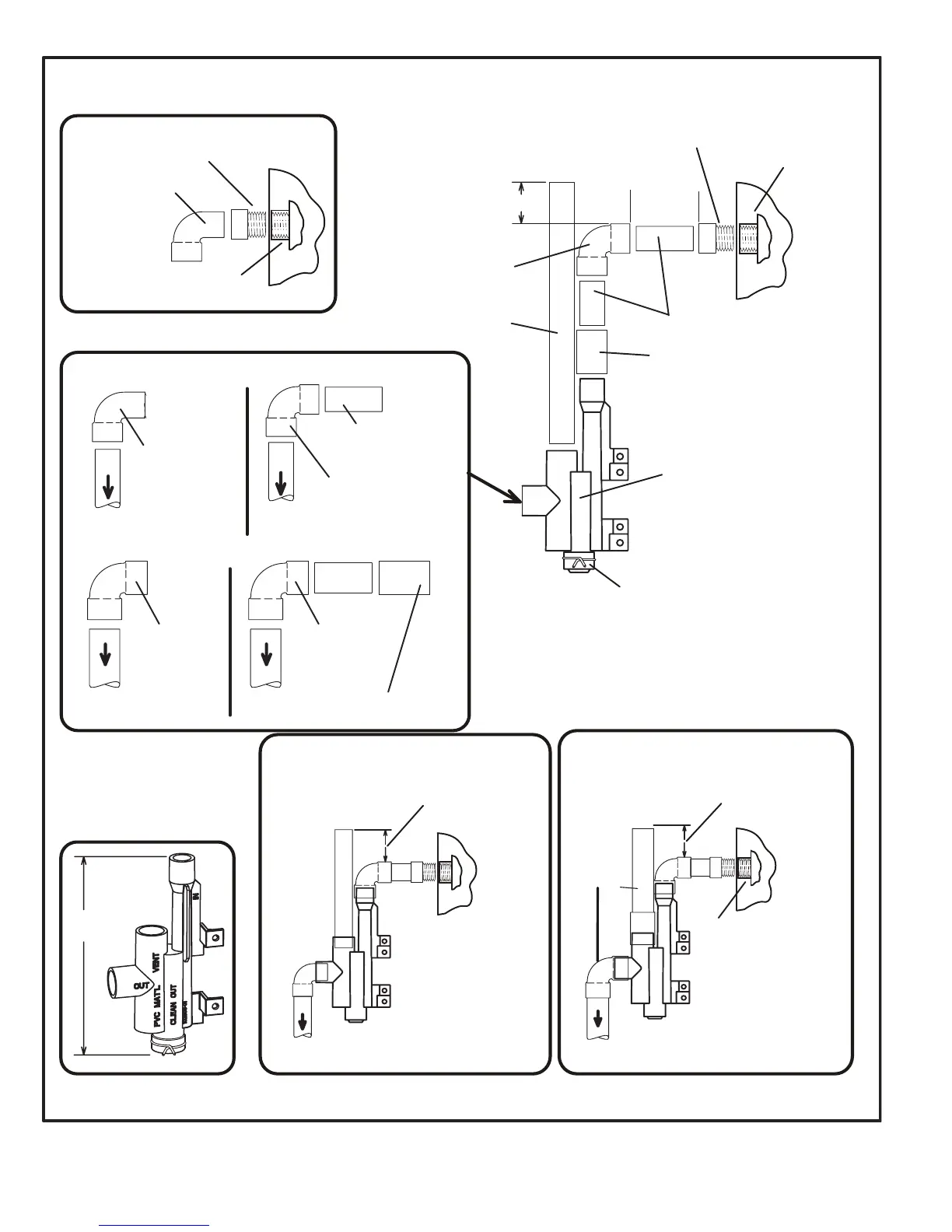

FIGURE 47
Adapter 1/2 inch slip X
1/2 inch mpt (Not Furnished)
Drain Trap
Assembly
(Furnished)
Vent
Drain Trap
Clean Out
5 Feet
Maximum
Coupling 1/2 inch slip X slip
(Not Furnished)
90° Elbow 1/2 inch PVC
(Not Furnished)
1/2 inch PVC Pipe
(Not Furnished)
1/2 inch PVC Pipe
(Not Furnished)
1 (25) Minimum
Above Top of Condensate Drain
Connection In Unit
Condensate Drain
Connection In Unit
7
(178)
Drain Trap Assembly
(Furnished)
Drain Assembly for 1/2 inch Drain Pipe
90° Elbow
3/4 inch PVC
(Not Furnished)
Coupling 3/4 inch slip X slip
(Not Furnished)
To
Drain
To
Drain
90° Elbow
3/4 inch PVC
(Not Furnished)
To
Drain
90° Elbow
1/2 inch PVC
(Not Furnished)
1/2 inch PVC Pipe
(Not Furnished)
Drain Assembly for 3/4 inch Drain Pipe
OPTIONAL Drain Piping
OPTIONAL Condensate Drain Connection
90° Street Elbow
1/2 inch PVC
(Not Furnished)
Condensate Drain
Connection In Unit
Adapter 1/2 inch slip X
1/2 inch mpt (Not Furnished)
1 inch (25mm) Minimum Above Top of
Condensate Drain Connection In Unit
Condensate Drain
Connection In Unit
Drain Trap Assembly with 1/2 inch Piping
Vent
To
Drain
1 inch (25mm) Minimum Above Top of
Condensate Drain Connection In Unit
Condensate Drain
Connection In Unit
Drain Trap Assembly with 3/4 inch Piping
Vent
To
Drain
TRAP / DRAIN ASSEMBLY USING 1/2" PVC OR 3/4" PVC
To
Drain
1/2 inch PVC
(Not Furnished)
3/4 inch
Piping
To Next Page
