Ventilator Connections

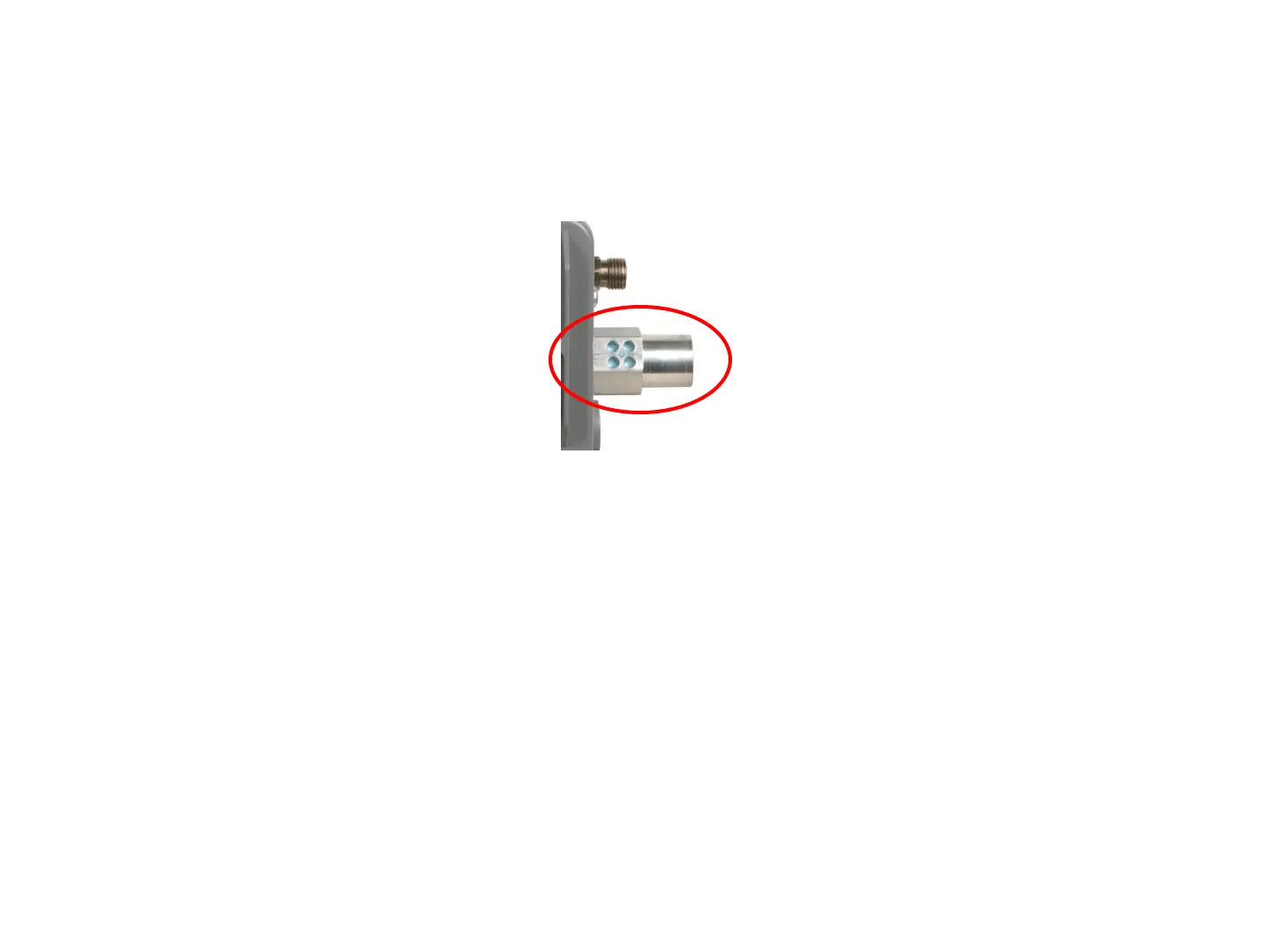

Patient Circuit Connection
• To attach the breathing circuit, press the open end of a three-
foot circuit with one-way valve firmly onto the 22 mm
patient circuit connection.
• The circuit connection will accommodate any standard 22 mm
internal diameter ventilation circuit with one way valve,
although the MCV100(B) has been tested and approved using
the Allied three-foot breathing circuits with one-way valve.
4
