(1)–Breather
(2)–MountingPad
(3)–InputSpeedSensor
(4)–TurbineSpeedSensor
(5)–FillTubeandDipstick
(6)–Nameplate
(7)–FeedthroughHarness
Connector
(8)–CoolerPorts
(9)–OutputSpeedSensor
(10)–MountingPad(BothSides)
(11)–Breather
(12)–CoolerPorts
(13)–Main-PressureT ap

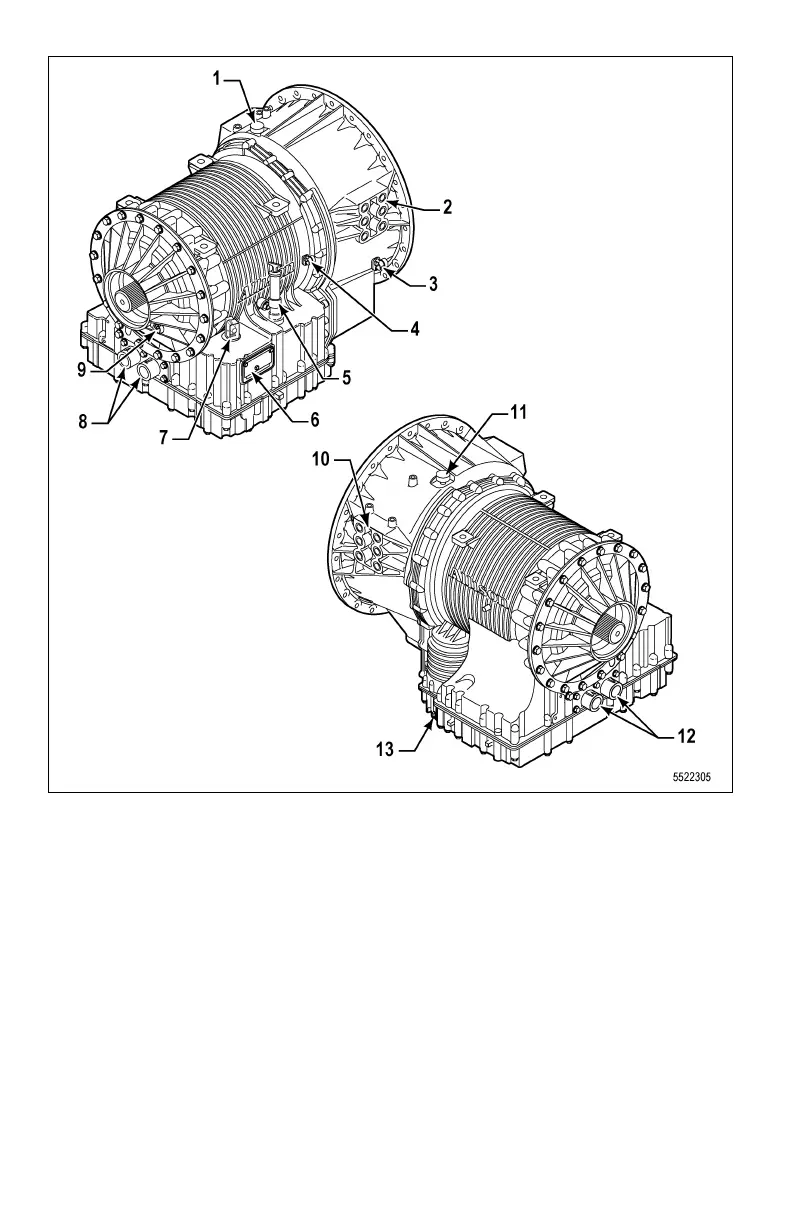

Figure2–2.4000/4200/4430/4440/4500/4600Series
