13 / 16 6-1624982 - rev.1 - 20/05/2021
ENG

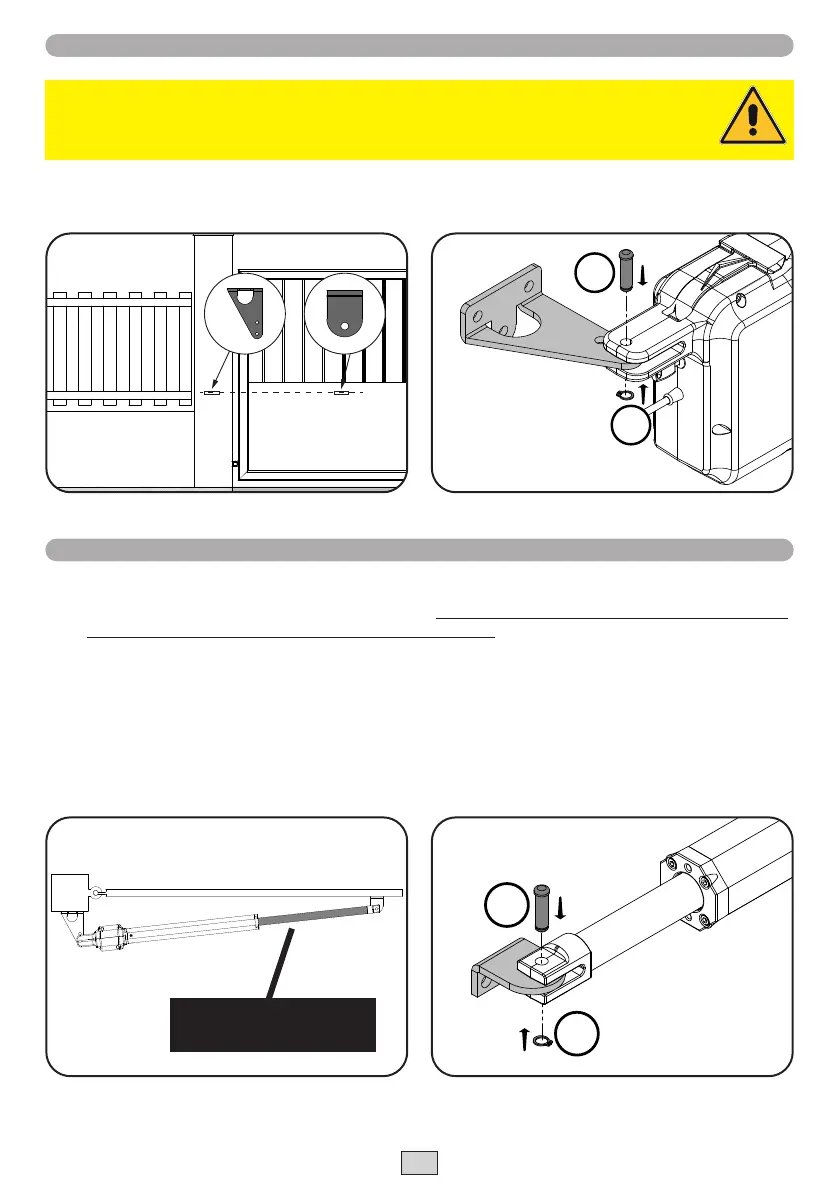

6.3 FASTEN THE REAR BRACKET TO THE COLUMN
6.4 FASTEN THE FRONT BRACKET TO THE GATE
Attach the rear bracket to the column in accordance with the agreed dimensions.
To install the front bracket follow these steps:
1. Unlock the motor.
2. Bring the door of the gate to the position of "CLOSED DOOR". ATTENTION! In case you are installing the motor with opening
to the outside bring the door of the gate in the position of "OPEN DOOR".
3. Attach the front bracket to the motor actuator using the supplied hardware.
4. Stretch the stem completely and bring it back about 1 cm of its run.
5. With the stem in this position, pull the actuator with the bracket already installed to the gate and temporarily fix the bracket
to the gate.
6. Verify that the motor is on level.
7. Carry out some manual opening and closing movements in order to verify that the gate moves smoothly and eortlessly and
that the gear motor does not rub against the gate door.
8. Properly attach the front bracket to the gate and lock the motor.
STROKE USED =
(STROKE AVAILABLE) - 1 cm
WARNING!
In determining the height from the ground to which the bracket is fixed on the pillar, take into account that the brackets
for anchoring the piston to the gate shall be fixed at the same level, and that the motor shall be installed at least
50mm away from the lower edge of the gate door.
After properly fixing the bracket to the column, anchor the back of the gearmotor to the bracket using the supplied hardware as
shown in the figure.
