15 / 16 6-1624982 - rev.1 - 20/05/2021
ENG

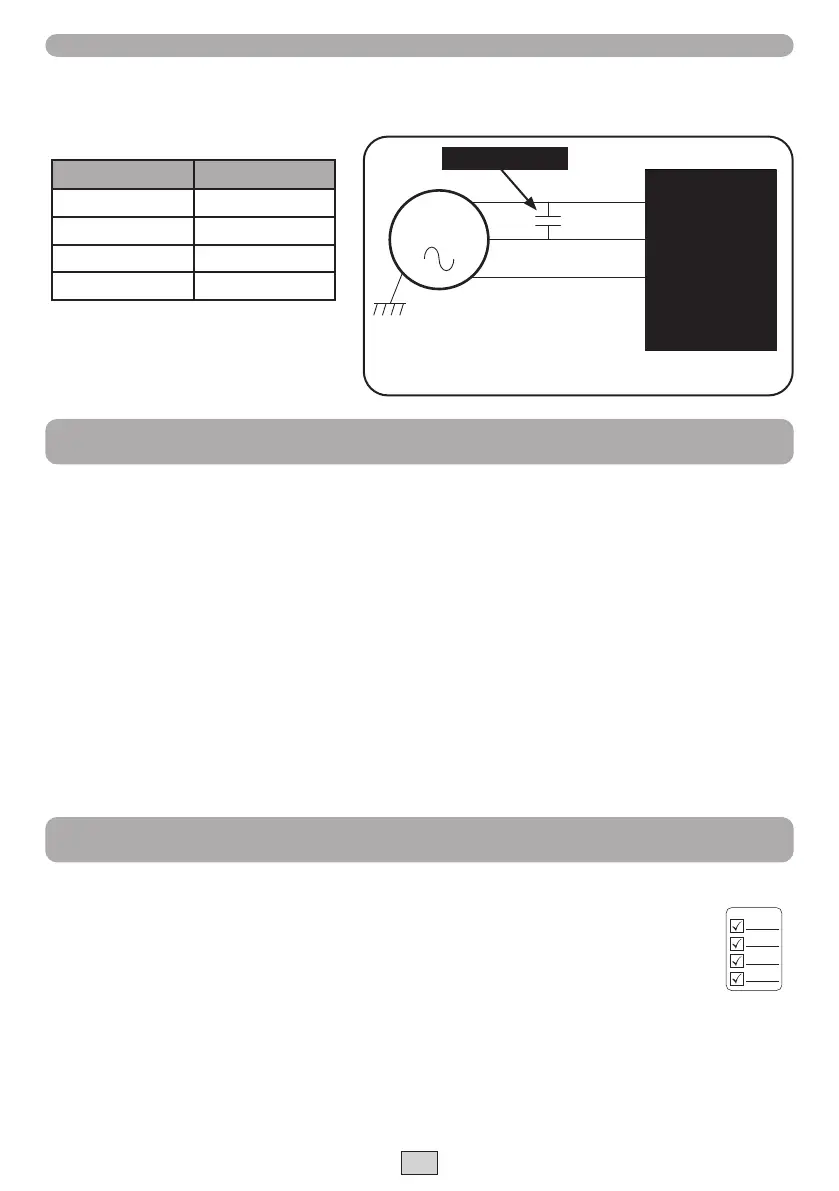

6.6 CONNECTION TO THE CONTROL UNIT
Make connections to the control unit only in the absence of power supply.
For the 230Vac and 120Vac gearmotors, install the capacitor supplied between Phase 1 and Phase 2 of the motor.
Please refer to the installation manual of the control unit for the connection diagram.
TABLE 9 - Cable colour for 230Vac motor
COLOUR
DESCRIPTION
Black
Phase 1
Brown Phase 2
Grey or Blue Neutral
Yellow / Green Ground
M
CONTROL UNIT
PHASE 1
PHASE 2
NEUTRAL
GROUND
CAPACITOR
7. DECLARATION OF CONFORMITY
8. MAINTENANCE
For the correct maintenance of the automation, make sure to perform at least once every 6 months the following steps:
1. Check that all the fixing screws of the brackets are tight.
2. Check that the gate is in good condition and that there are no broken or worn parts.
3. Check the status of the electrical connections and in case of wear of the cables replace them.
4. Unlock the motor and move the gate manually by checking that the movement is fluid. In case it is necessary to
put a layer of lubricating grease on the stem.
Manufacturer: Allmatic srl
Address: Via dell’Artigiano, 1 - 32026 Borgo Valbelluna (BL) Italia
Telephone: +39 0437 751175
E-mail: info@allmatic.com
Web site: www.allmatic.com
Declares that the HYPER product complies with the provisions of Community Directives:
2014/35/EU - Low Voltage Directive
2014/30/EU - Electromagnetic Compatibility Directive
This product cannot work independently and is designed to be integrated into a system with other devices. It is complies with Article
6, paragraph 2, of Directive 2006/42/EC (Machinery) and subsequent amendments, therefore the device cannot be put into opera-
tion before it has not been declared compliant in the total context of use in accordance with the provisions of directive.
This statement is given in a shorter form for graphic reasons.
The full version is available by contacting the manufacturer.
