Allmatic HYPER 600 - Page 5

5 / 16 6-1624982 - rev.1 - 20/05/2021
ENG

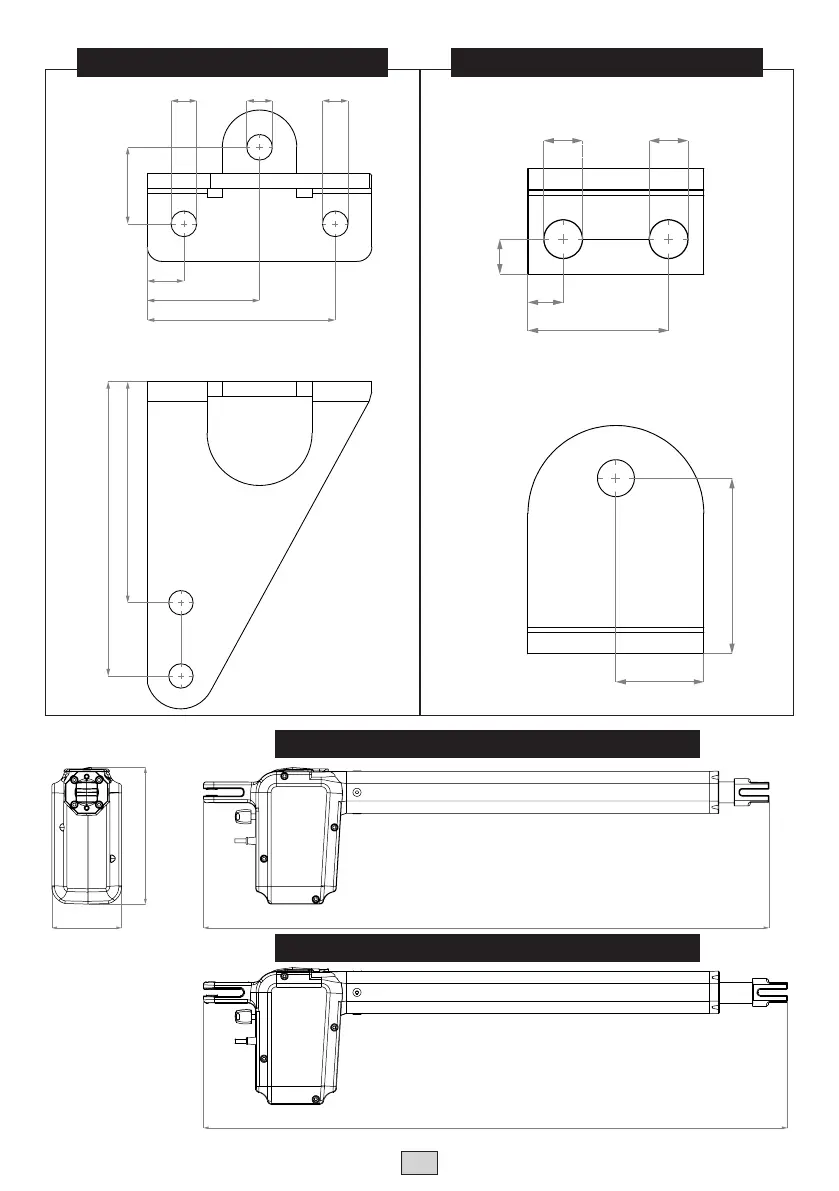

196
100
790 (HYPER 400)
990 (HYPER 600)
810 (HYPER 400)
1010 (HYPER 600)
WITHOUT INTERNAL MECHANICAL STOPPERS
WITH INTERNAL MECHANICAL STOPPERS (1 or 2)
77
31
15
46
ø 10.5 ø 10.5 ø 10.5
90.5
120.5
25
50
ø 11 ø 11
10
10
40
REAR BRACKET FOR FIXING FRONT BRACKET FOR FIXING
