Operating Instructions and Parts Manual
High Pressure Abrasive Blast Cabinet

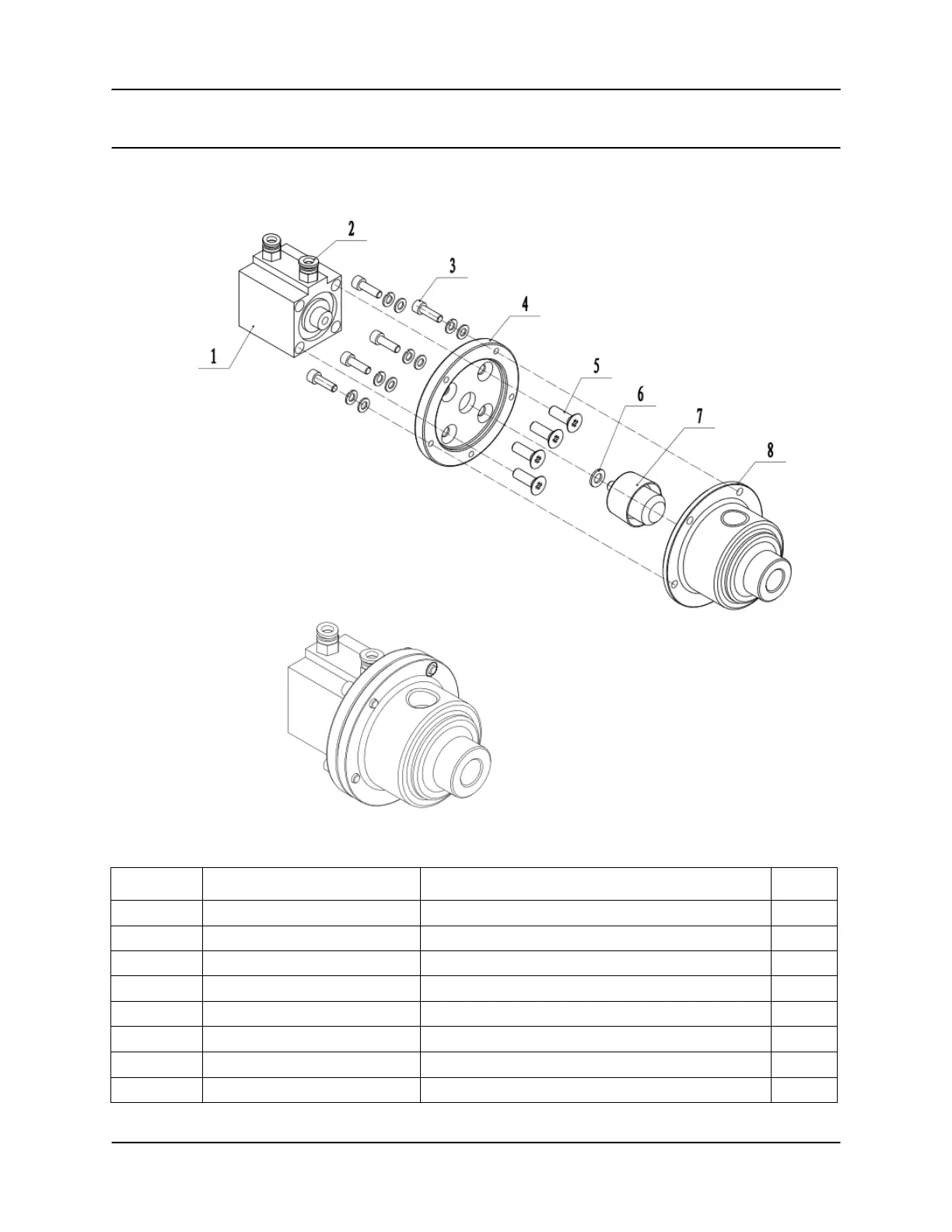

Exploded View of Cylinder Block
Item No.
Part No.
Description
Qty.
12-9-1
Air Cylinder (SDA 40*20)
1
12-9-2
G1/8"-8 Connector
2
12-9-3
M6*25 Screw *1 + Washer *2
5
12-9-4
Cover Plate
1
12-9-5
M8*18 Screw
4
12-9-6
4201296
Flat Gasket (OD 15 x ID 8.2 x 1.5 mm)
1
12-9-7
4201297
Piston Seal
1
12-9-8
4201298
Air Cylinder Seat
1
