Operating Instructions and Parts Manual
High Pressure Abrasive Blast Cabinet
Assembly

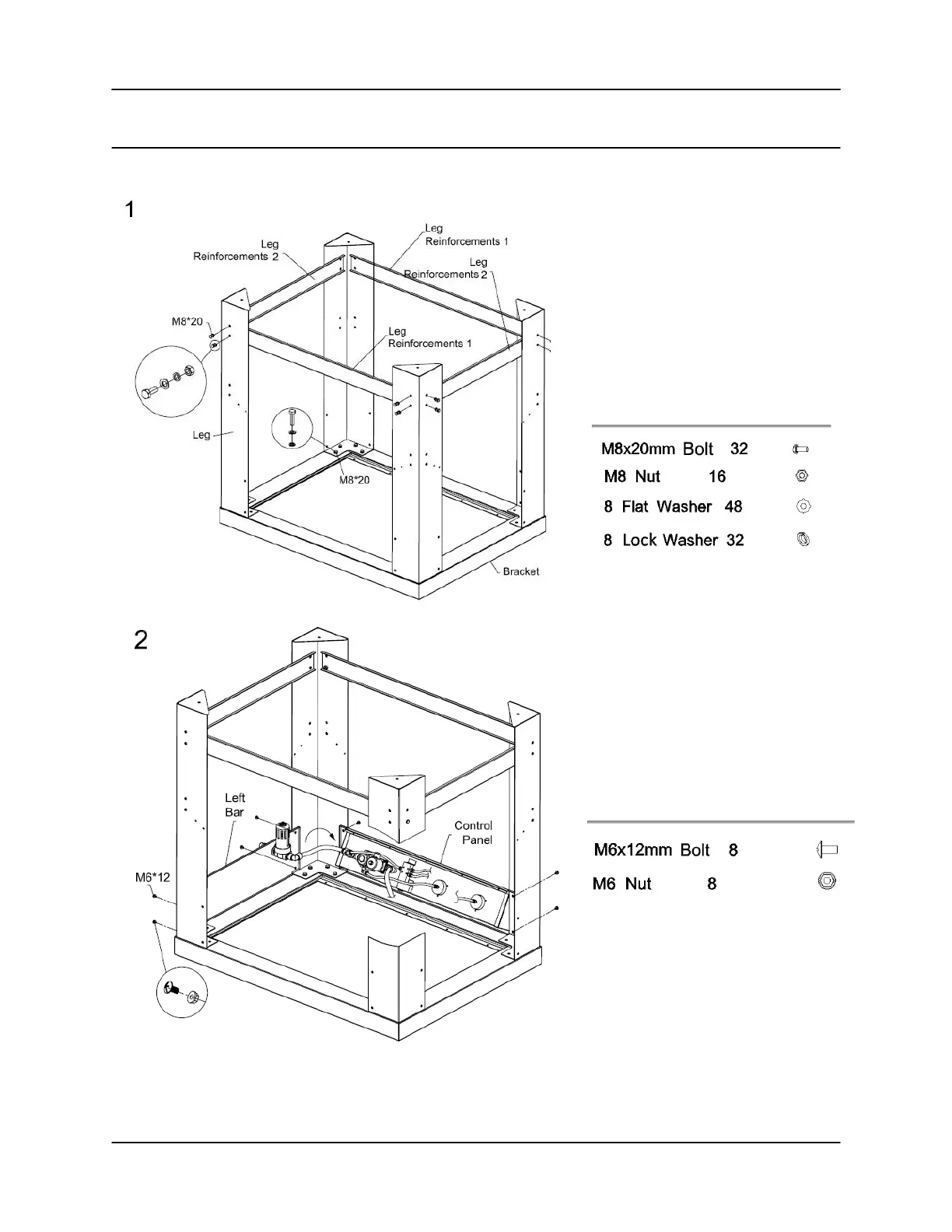

1. Fasten the four legs and the
Leg Reinforcements to the Bracket
by using M8*20mm bolt, Flat
Washer, lock Washer and M8 Nut,
tighten.
Hardware
2. Assemble the Left Bar, Right Bar,
Control Panel and Rear Bar by using
M6*12mm bolt, Flat Washer, and M6
Nut in sequence.
Hardware
