Allsource 42000 - Assembly - Steps 3 & 4

7
42000
Operating Instructions and Parts Manual
High Pressure Abrasive Blast Cabinet

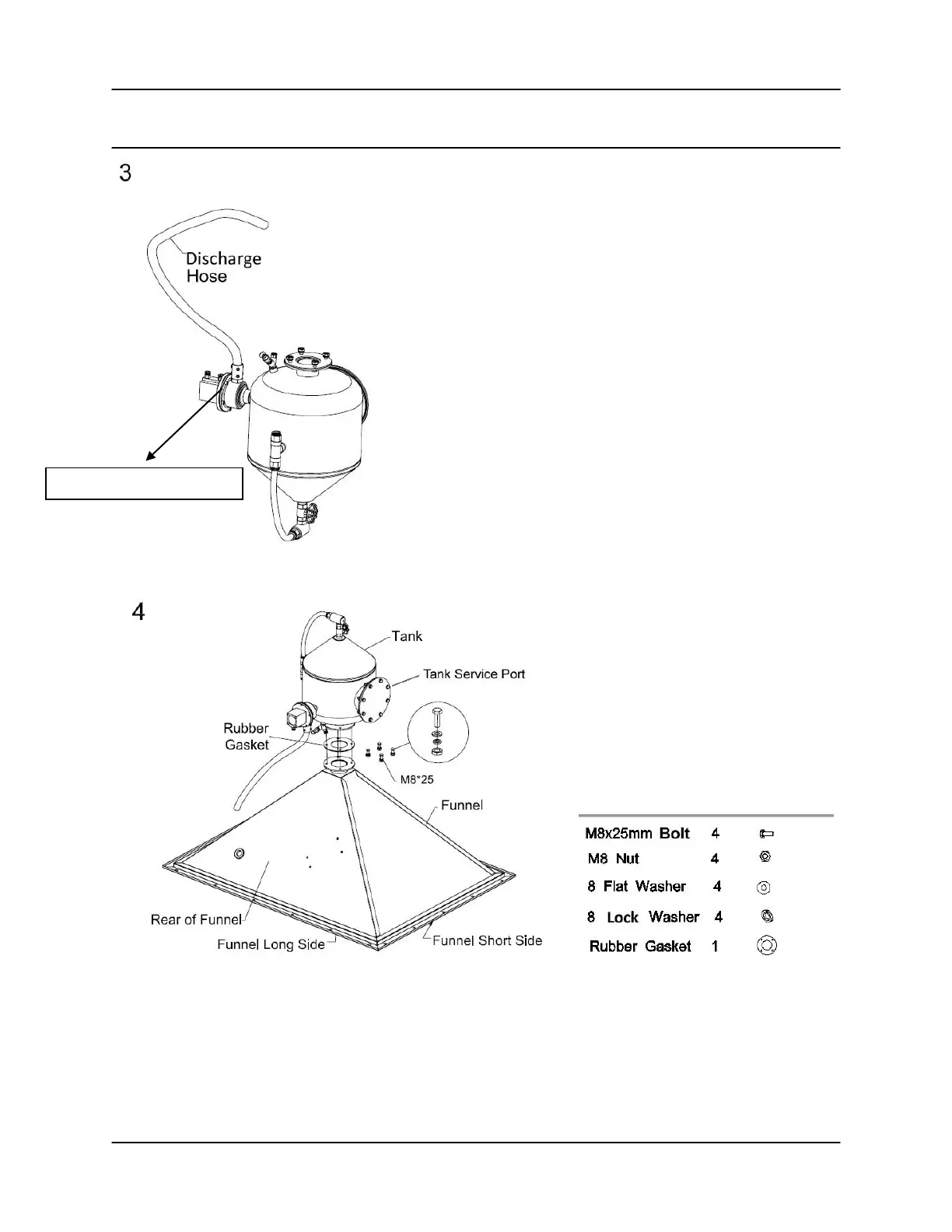

3. Place the funnel as shown in the
diagram. Attach the tank assembly
(including bolt, flat washer, lock
washer, nut) and rubber seal onto
the funnel.
Note: Locate tank service port with
right side funnel on same direction.
Hardware
3: Assemble discharge hose with #9
Cylinder Block for tank
#9 Cylinder Block for tank
