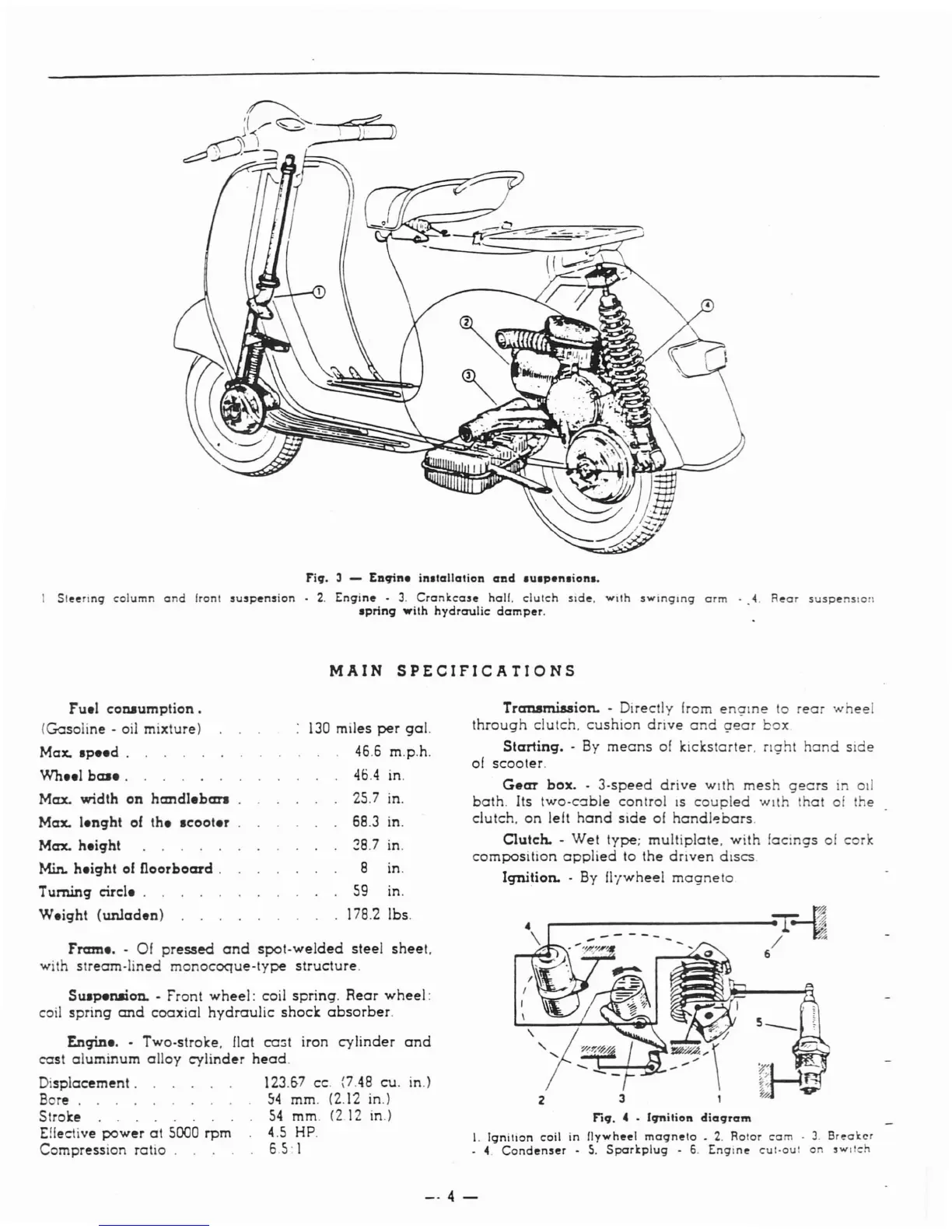

Fiq. 3 - EDqine inalallation aDd auapenaiona.
I Sl~~rtng column and front !u!p~n!ion • 2. Engin~ • 3. Crankca!~ hall. clutch sld~. wIth sWinging arm - 4. R~ar susp~nslon
apring with hydraulic damp~r.
MAIN SPECIFICATIONS
Fram •.• Of pressed and spot.welded steel sheet.
with stream-lined monocoque-type structure.
Suapenaion. • Front wheel: coil spring. Rear wheel:
coil spring and coaxial hydraulic shock absorber.
Engin •.• Two-stroke. flat co:;t iron cylinder and
cast aluminum alloy cylinder head.
Displacement. 123.57 cc. (7.48 cu. in.)
Bore. 54 mm. (2.12 in.)
Stroke 54 mm. (2.12 in.)
Effective
power at 5000 rpm 4.5 HP.
Compression ratio . 6.5: I
Fuel
conaumption.
(Gasoline· oil mixture)
Max. speed.
Wheel ba ...
Max. width on handleban
Max. lenght of the scooter
Max. height
Min. height of floorboard.
Turning circl •.
W.ight (unladen)
130 miles per gal.
46.6 m.p.h.
40.4 in.
25.7 in.
68.3 in.
28.7 in.
8 in.
59 in.
178.2 lbs.
Transmission. - Directly [rom enarne to rear wheel
through clutch. cushion drive and ge'ar box
Starting. - By means of kickstarter. nght hand Side
of scooter.
Gear box. - 3-speed drive with mesh gears in od
bath. Its two-c::Ible control IS coupled with that of the
clutch.
on left hand side of handl~bars.
Clutch. - Wet type; multiplate. with facrngs of corle
composition applied to the dnven dISCS
Iqnition. - By fl'lwheel magneto
...------------erJ~
/~
6
Fiq. 4 - (qnilion diaqram
I. Ignition coil in f1ywh~~1 magn~lo _ 2. Rolor cam . 3. Br~akcr
4. Cond~n!~r - 5. Sporkplug - 6. Engin~ CUI-OU! on !wl!ch
-·4-
