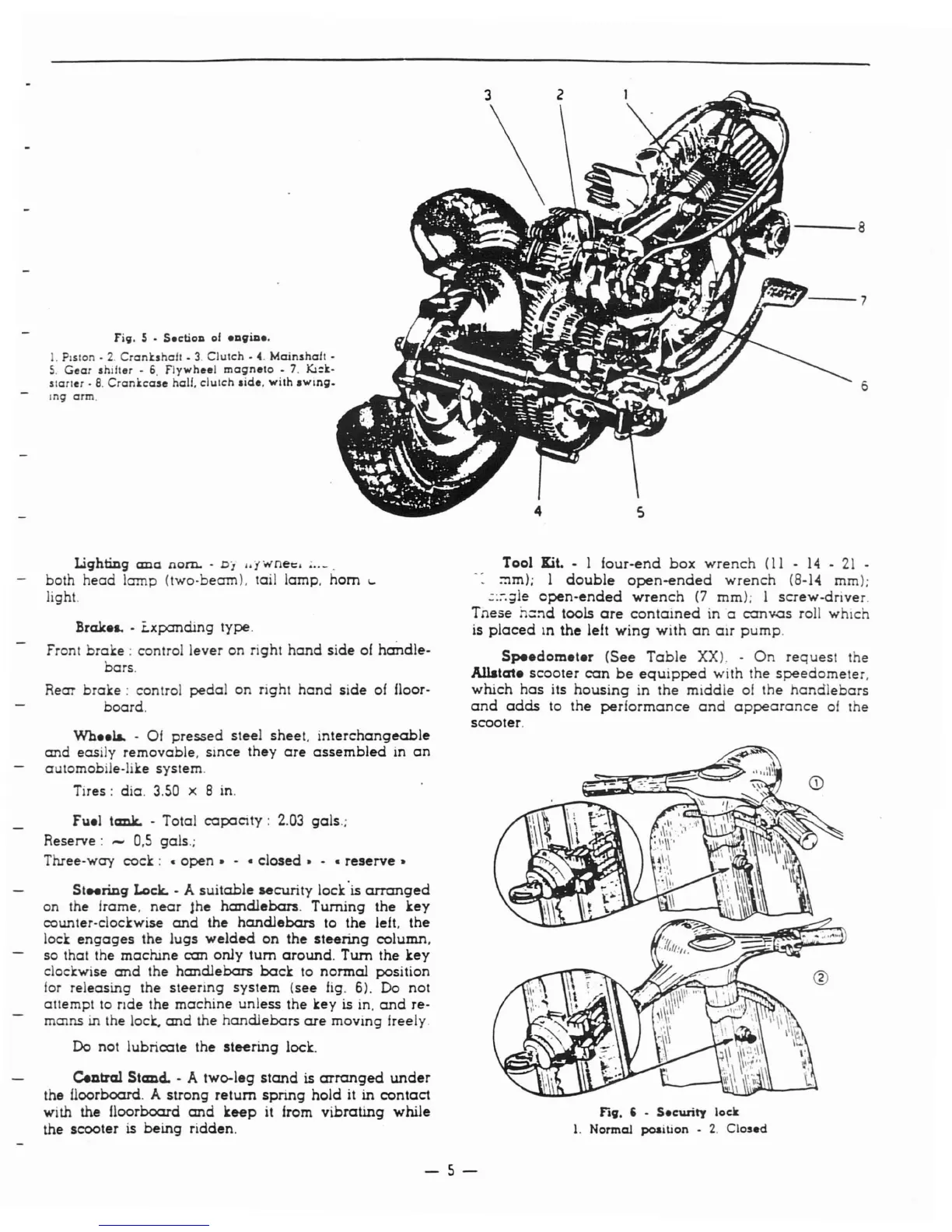

Fi9. 5 • S.c:tiOD 01 .DgiD ••
. PIston· 2. Cranbhafl • 3. Clutch - 4. Mainshafl •
5. Gear shifter· 6. Flywheel magneto. 7. Kl:k-
starter· 8. Crankcase hall. clutch aide. with aWing.
Ing arm.
Lighting ana nom. - 0] •• fwnet. ; .. _.
both
head lamp (two-beam). tail lamp. hom '-
light.
Brake&. - Lxpanding type.
Front
brake: control lever on right hand side of handle-
bars.
Rear brake: control pedal on right hand side of floor·
board.
Wh
•• 1&. • 01 pressed steel sheet. interchangeable
and easily removable. since they are assembled in an
automobile-like system.
Tires: dia.
3.50 x 8 in.
Fuel tank. - Total copacity: 2.03 gals.;
Reserve: -
0,5 gals.;
Three-way
cock: copen. - c closed •. c reserve.
St .. ring Lock. - A suitable security lock'is arranged
on the lrame. near Jhe handlebars. Turning the key
counter-clockwise and the handlebars to the left. the
lock engages the lugs welded on the steering column.
so that the
madune can only tum around. Tum the key
clod:wise and the handlebars beck to normal position
lor releasing the
steering system (see fig. 6). Do not
attempt to
TIde the machine unless the key is in. and re-
mams in the lock. and the handlebars ere moving Ireely.
Do not lubricate the steering lock.
Central Stand. - A two-leg stand is arranged under
the floorboard. A strong return spring hold it in contact
with the floorboard and keep it from vibrating while
the scooter
is being ridden.
---8
·r.r..~---7
6
Tool Kit. • 1 lour-end box wrench (11 - 14 • 21 .
~m); 1 double open-ended wrench (8-14 mm);
.:::-.;lle open-ended wrench (7 mm); I screw-driver.
Tnese n::'ld tools are contained in a canvas roll which
is placed In the left wing with on air pump.
Speedometer (See Table XX). - On request the
Allatate scooter con be equipped with the speedometer.
which has its housing in the middle of the handlebars
and odds to the performance and appearance 01 the
scooter.
Fig. , - Security lock
1. Normal position - 2. Closed
-5-
