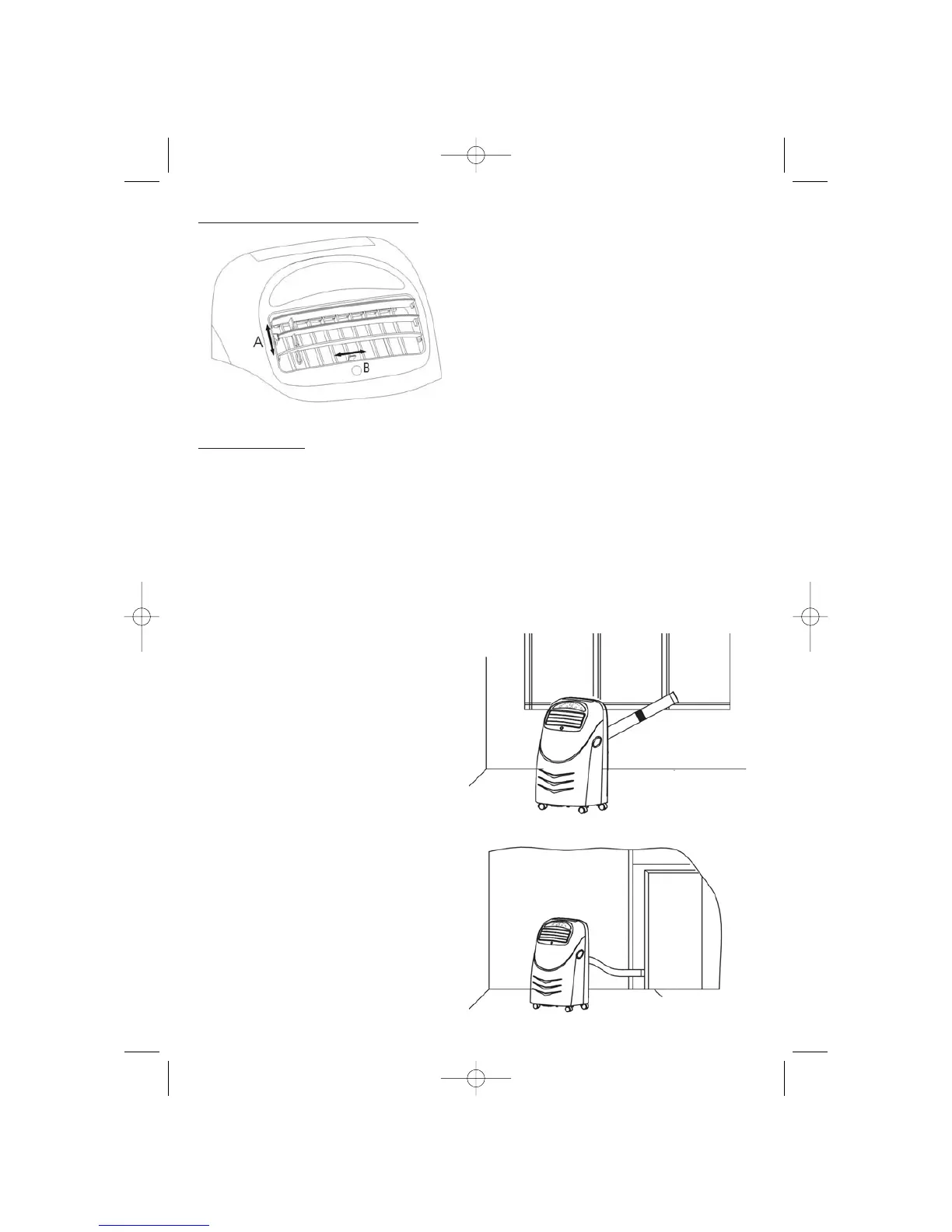

ADJUSTMENT OF THE WIND DIRECTION.
First, open the swing wind direction A.
Flow can be adjusted in both A and B directions.
AIR EXHAUST PIPE.
Assemble extremity 11 on the pipe.
Assemble the pipe on the air conditioner in the exhaust air outlet 7.
- Through a wall:
Make a hole in the wall with diameter adapted to part 12.
Insert part 12 in the hole and exhaust pipe extremity in part 12.
If you do not use the air conditioner, you can close the hole using the cover of part 12.
- Through the window or the door:
Assemble window accessory 10 on exhaust pipe extremity.
Open door or window and put the extremity of the pipe through it. (Fig. 4 and 4bis)
Fig. 4
Fig. 4 bis
