Alpha CB28 - Page 7

7

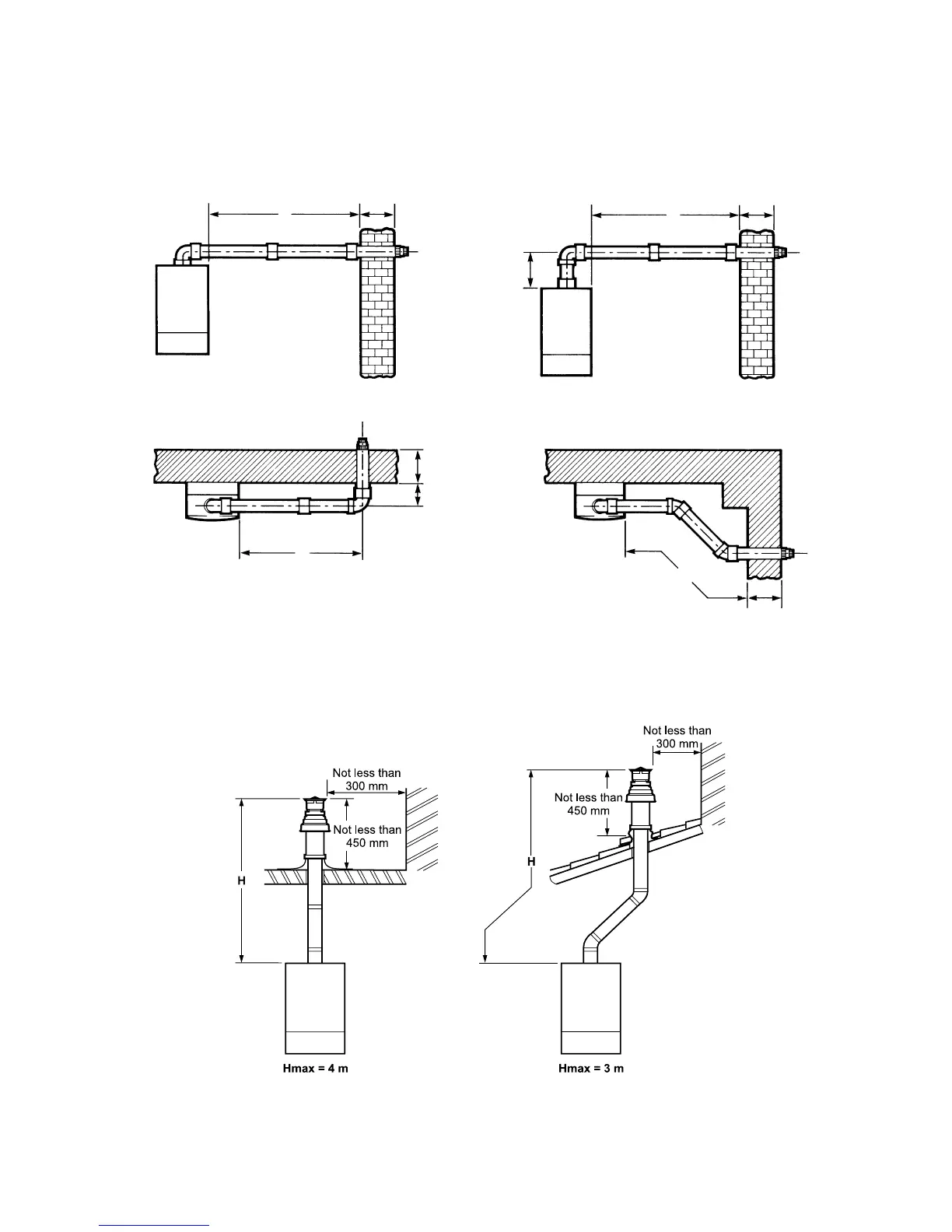

HORIZONTAL FLUE OPTIONS - Lmax = 4 metres
L = B + C + E + 185 mm
Alpha CB24/28 - General Boiler Information
L = B + C + 185 mm
C
B
E
C
B
E
B
F
B
C
L = B + E + F + 185 mm + (90° bend = 1 metre)
L = B + C + 185 mm + (2 x 45° bends = 1 metre)
Fig. 3
VERTICAL FLUE OPTIONS
