Alpha CD32C - Page 7

7

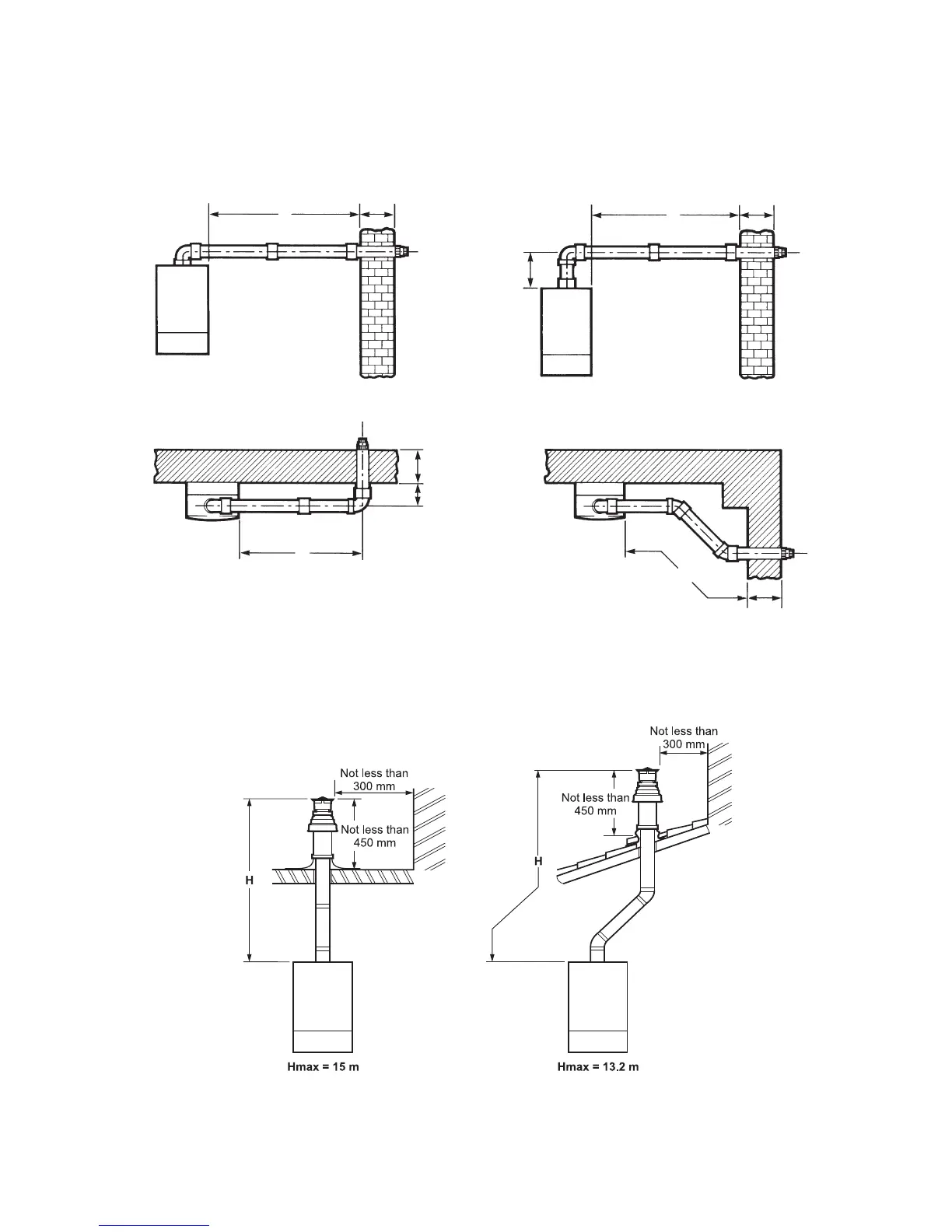

HORIZONTAL FLUE OPTIONS - Lmax = 12 metres
L = B + C + E + 230 mm
Alpha CD24C/32C - General Boiler Information
L = B + C + 230 mm
C
B
E
C
B
E
B
F
B
C
L = B + E + F + 230 mm + (90° bend = 1.3 metre)
L = B + C + 230 mm + (2 x 45° bends = 1.8 metre)
Fig. 3
VERTICAL FLUE OPTIONS
