Alpine Spas Gazebo - Page 9

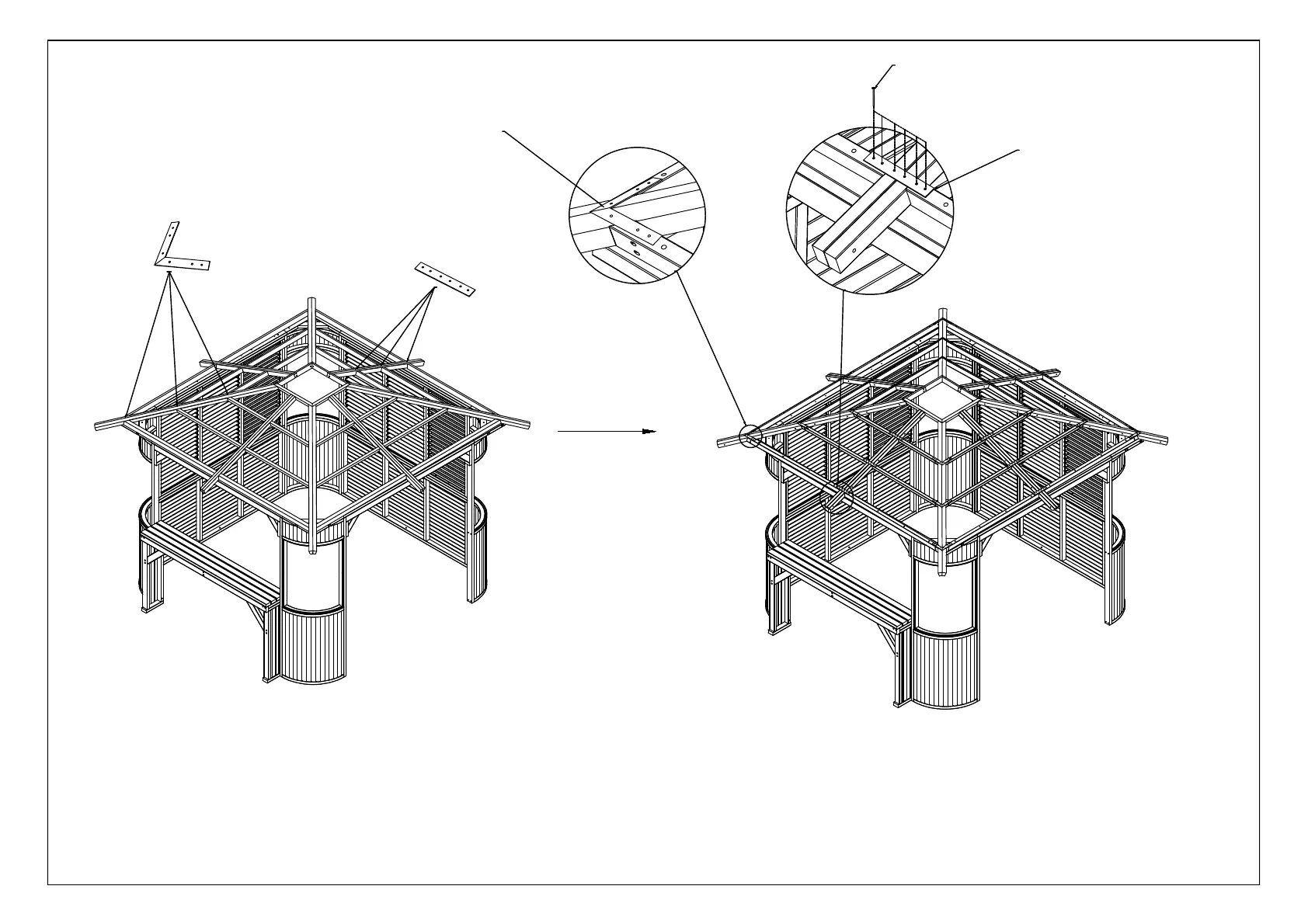

Drawing⑨
1.Put the 90°hardware on the corner connection of
big roof, lock them by screw DB-M4*25.
2.Put the straight hardware on the middle
connection of big roof, lock them by screw big flat
screw DB-M4*25.
screw DB-M4*25
Straight hardware
90°hardware
