HOW TO INSTALL BASE
EXISTING REINFORCED CONCRETE
1. Position baseplate in desired location, square off and make sure it’s level.
2. Mark holes into the concrete using the pre-drilled countersunk holes in the baseplate as guides.
3. Remove the surface plate and drill 16mm holes a minimum of 115mm into the concrete to suit the supplied
masonry sleeve anchor.
4. Clean the holes and mounting area from any masonry dust & dirt.
5. Install the 4 masonry sleeve anchors, place the surface plate on top and secure using a 18mm socket.
6. Once the surface plate is secured to the concrete, follow the ‘INSTALLING THE SPIGOT TO SURFACE
PLATE’ instructions (page 9) to attach the ‘spigot’ to the ‘surface plate’.

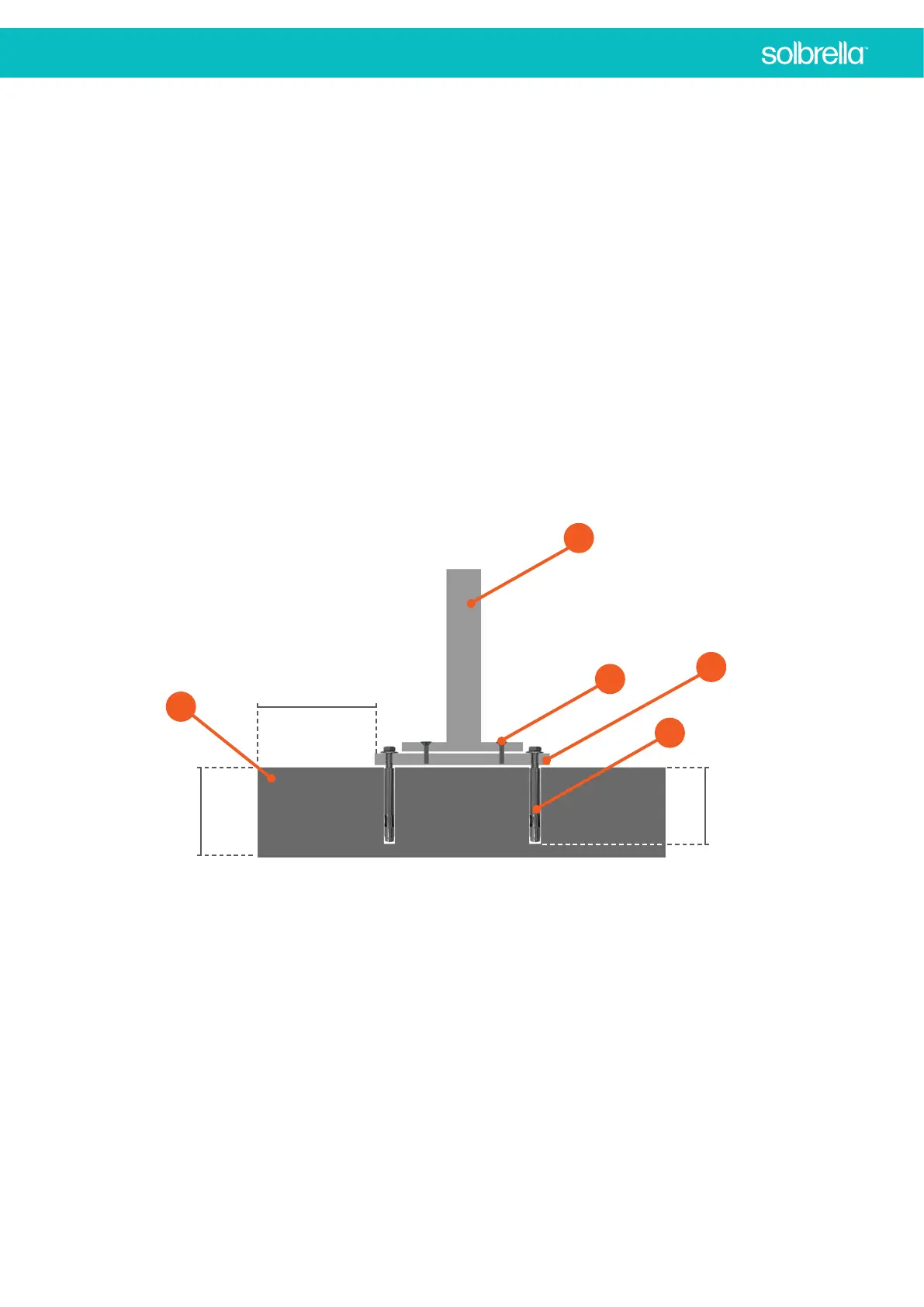

1 ........................................................................ SPIGOT
2 .................................................... SURFACE PLATE
3 ......................... MASONRY SLEEVE ANCHOR
4 ................................. REINFORCED CONCRETE
5 ................ COUNTERSUNK HEX BOLT 25MM
100MM (min) DEPTH CONCRETE ................................. A
300MM OFF WALL OR FENCE ...................................... B
70MM (min) DEEP SCREW FIXING ............................... C
A = 100mm
(MIN)
B = 300mm
(MIN)
C = 70mm
(MIN)
2.
3.
5.
4.
1.
Drawings are not to scale
Gaps in drawing are for illustration purposes only
