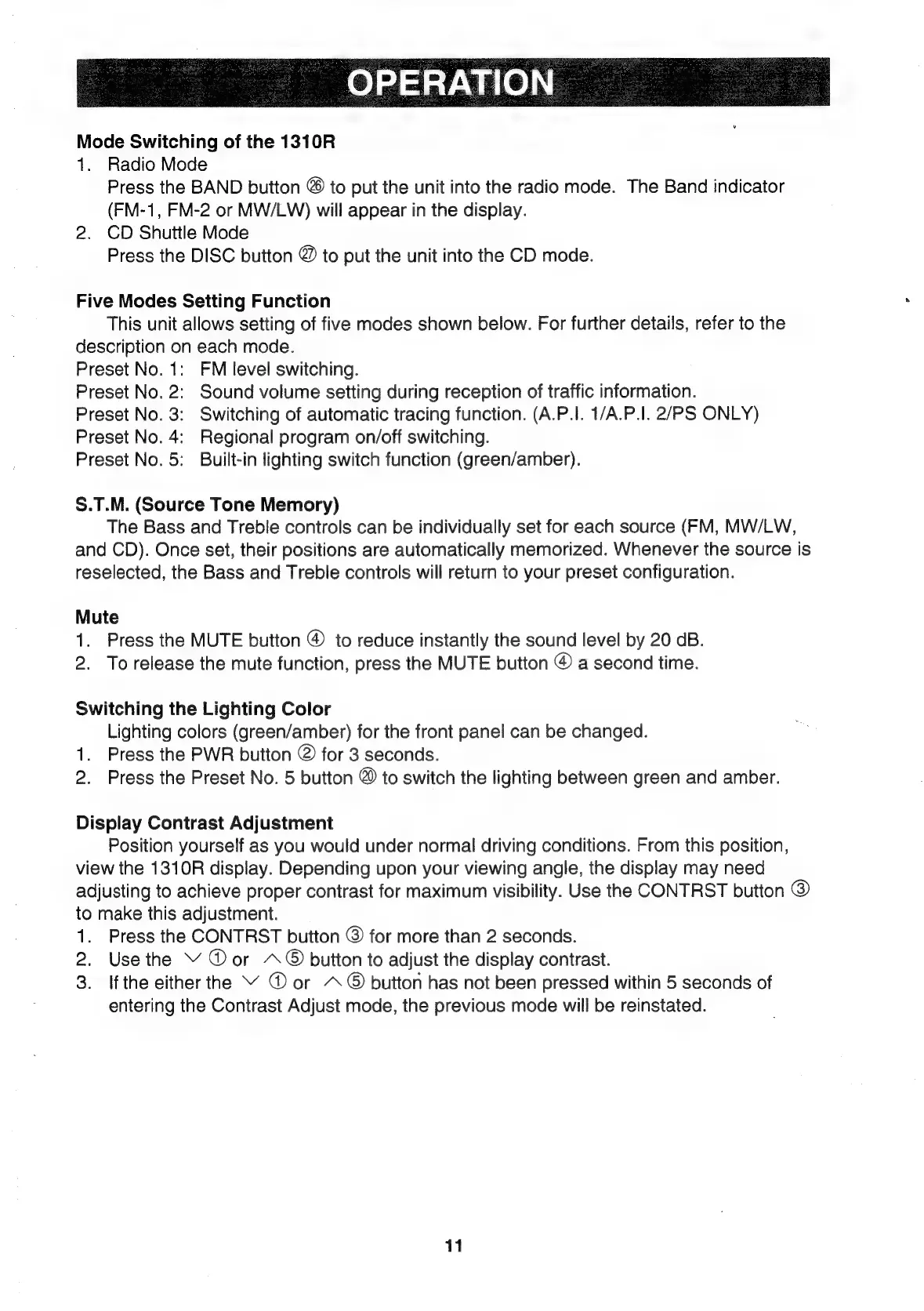

Mode Switching of the 1310R
1. Radio Mode
Press the BAND button @ to put the unit into the radio mode. The Band indicator
(FM-1, FM-2 or MW/LW) will appear in the display.
2. CD Shuttle Mode
Press the DISC button @ to put the unit into the CD mode.
Five Modes Setting Function
This unit allows setting of five modes shown below. For further details, refer to the
description on each mode.
Preset No. 1: FM level switching.
Preset No. 2: Sound volume setting during reception of traffic information.
Preset No. 3: Switching of automatic tracing function. (A.P.1. 1/A.P.1. 2/PS ONLY)
Preset No. 4: Regional program on/off switching.
Preset No. 5: Built-in lighting switch function (green/amber).
S.T.M. (Source Tone Memory)
The Bass and Treble controls can be individually set for each source (FM, MW/LW,
and CD). Once set, their positions are automatically memorized. Whenever the source is
reselected, the Bass and Treble controls will return to your preset configuration.
Mute
1. Press the MUTE button @ to reduce instantly the sound level by 20 dB.
2. To release the mute function, press the MUTE button ® a second time.
Switching the Lighting Color
Lighting colors (green/amber) for the front panel can be changed.
1. Press the PWR button © for 3 seconds.
2. Press the Preset No. 5 button @ to switch the lighting between green and amber.
Display Contrast Adjustment
Position yourself as you would under normal driving conditions. From this position,
view the 1310R display. Depending upon your viewing angle, the display may need
adjusting to achieve proper contrast for maximum visibility. Use the CONTRST button @
to make this adjustment.
1. Press the CONTRST button @ for more than 2 seconds.
2. Usethe “ Mor *~© button to adjust the display contrast.
3. Ifthe either the “ © or *~ © button has not been pressed within 5 seconds of
entering the Contrast Adjust mode, the previous mode will be reinstated.
