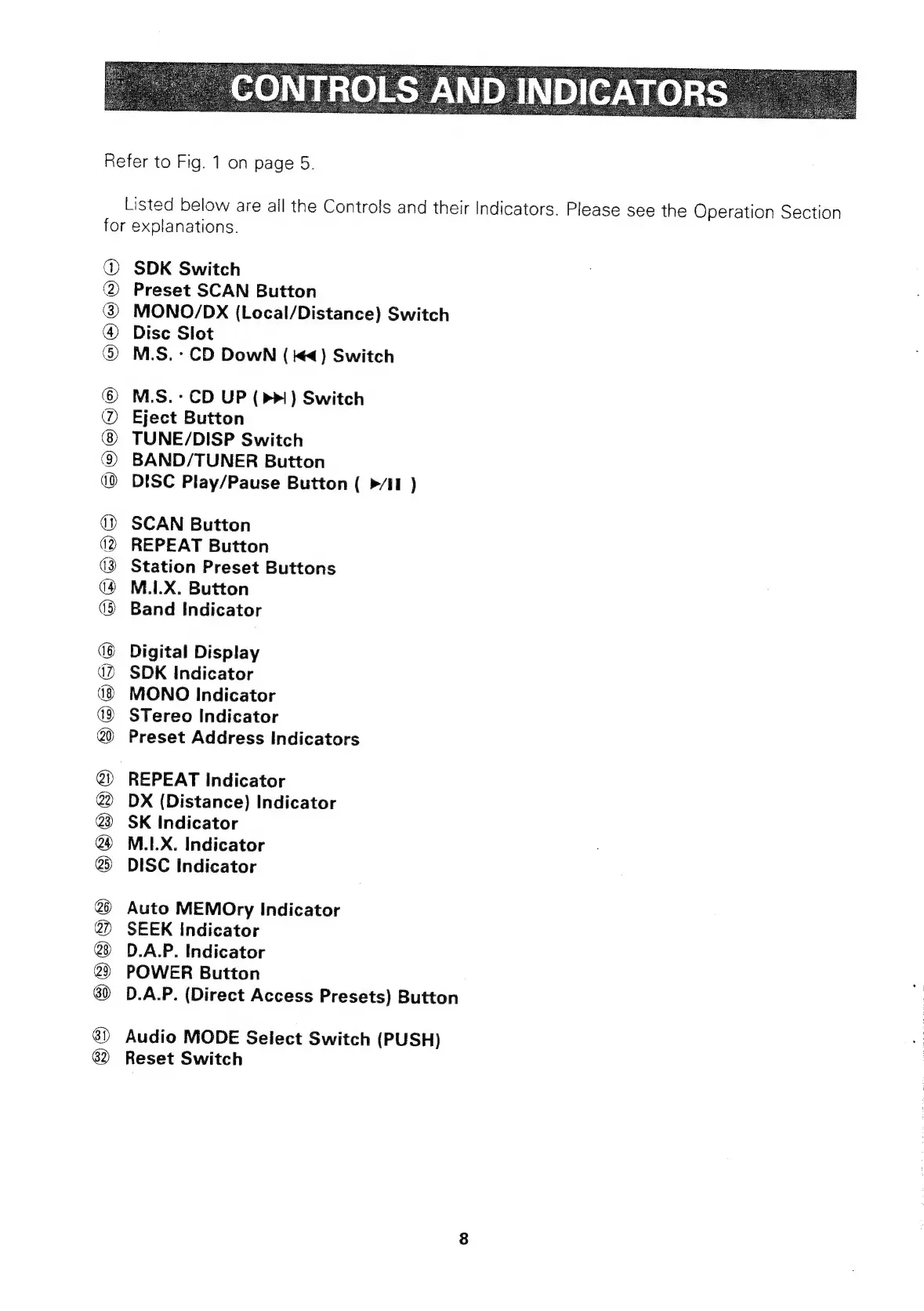

Refer to Fig. 1 on page 5.
Listed
below
are
all
the
Controls
and
their
Indicators.
Please
see
the
Operation
Section
for explanations.
GOCB® E8000
QBOOSS
SES88 SOH88 86566
8S
SDK Switch
Preset SCAN Button
MONO/DxX
(Local/Distance)
Switch
Disc
Slot
M.S. - CD DowN ( i€4) Switch
M.S. -CD UP (>) Switch
Eject Button
TUNE/DISP Switch
BAND/TUNER Button
DISC Play/Pause Button ( >/II )
SCAN Button
REPEAT Button
Station Preset Buttons
M.I.X. Button
Band Indicator
Digital Display
SDK Indicator
MONO Indicator
STereo Indicator
Preset Address Indicators
REPEAT Indicator
DX (Distance) Indicator
SK Indicator
M.LX. Indicator
DISC Indicator
Auto MEMOry Indicator
SEEK Indicator
D.A.P. Indicator
POWER Button
D.A.P.
(Direct
Access
Presets)
Button
Audio
MODE
Select
Switch
(PUSH)
Reset
Switch
