1. Drive unit disassembly
(i)
Remove
the
five
screws
@).
(See
Figures
1,
2,
and
3)
<Assembly note>
@ Move the Holder-rack assembled fully in the
direction
indicated
by
the
arrow.
(See
Figure
3)
Drive unit

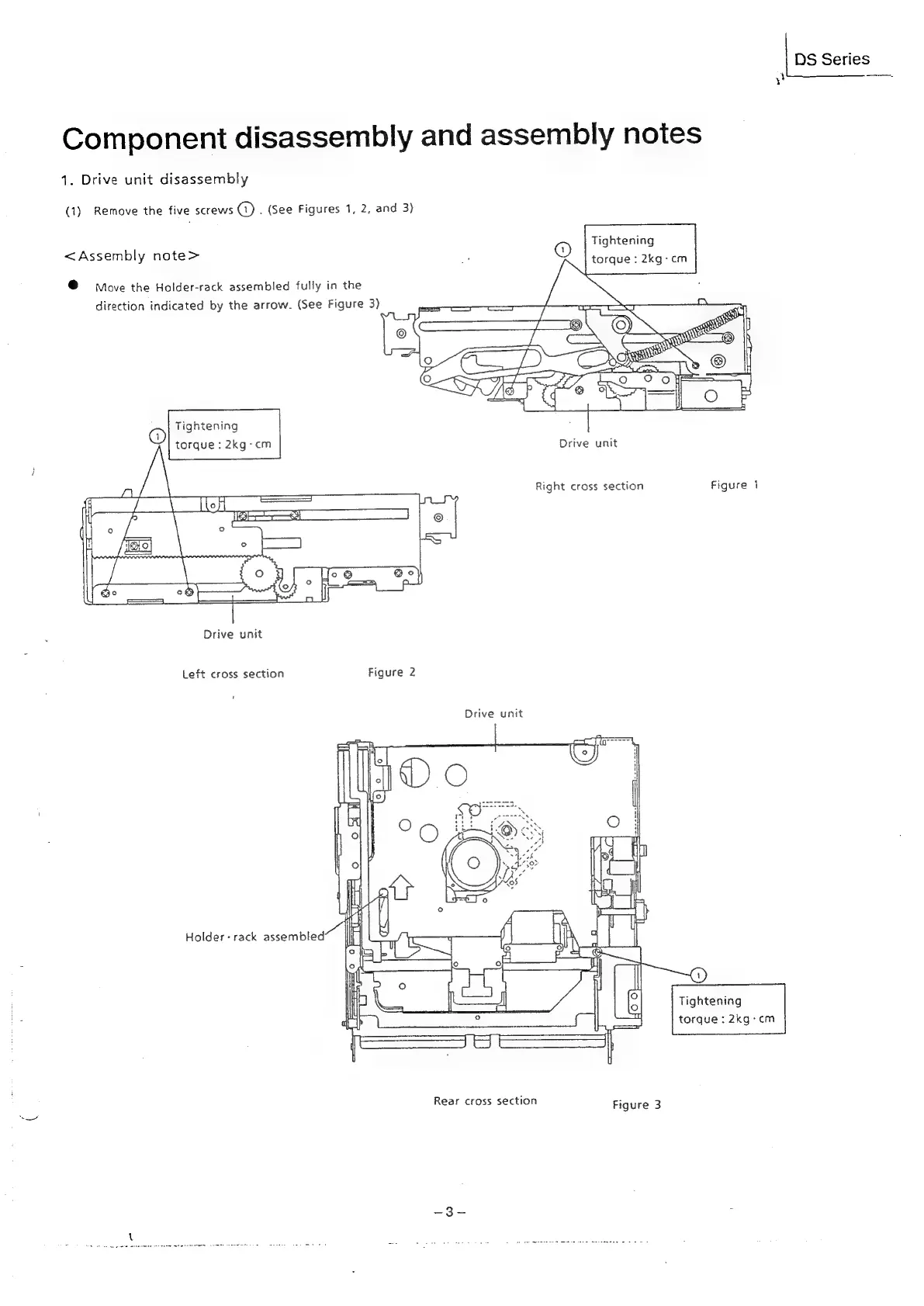

Right cross section Figure 1
Drive unit
Left cross section Figure 2
Drive unit
Holder- rack assembled
Q@)
Tightening
torque: 2kg-cm
Rear cross section
Figure 3
