2. Tray motor (M103) disassembly
(1)
Remove
the
four
springs
@and
the
three
screws
@.
rer
Disassemble
the
Loading
tray
assembled.
(See
Figure
4)
(2) Remove the two screws @). Disassemble the Gear
bracket assembled. (See Figure 4)
(3)
Remove
the
two
screws
(S),
the
Tray
motor
(M103)
can
be
removed.
(See
Figure
4)
<Assembly notes >
@
When
the
Gear
bracket
assembled
and
Riveting
bracket-camper
assembled
are
assembled,
move
the
Riveting
holder-rack
assembled
of
the
Riveting
damper-bracket
assembled
fully
in
the
direction
Drive
unit
indicated
by
the
arrow.
(See
Figure
5)
@
Mount
the
Tray
motor
(M103)
so
the
label
position
is
correct.
(See
Figure
4)
@®
Use
the
correct
springs
for
mounting
the
drive
unit
because
the
springs
Q)
differ
in
size.
(Spring
@2)-2
is
larger
than
spring
@
-1)
Tightening
torque: 2kg-cm
Tightening
torque: 2kq-cm
Tightening
torque: 1.5~2kg-cm
Lower chassis assembled
Riveting bracket -
damper assembled
|
|
i
|
Loading tray assembled -——
{
|
Gear bracket
assembled
Tray
motor
(M103)
Tightening
Label surface
torque: 1.5kg-cm

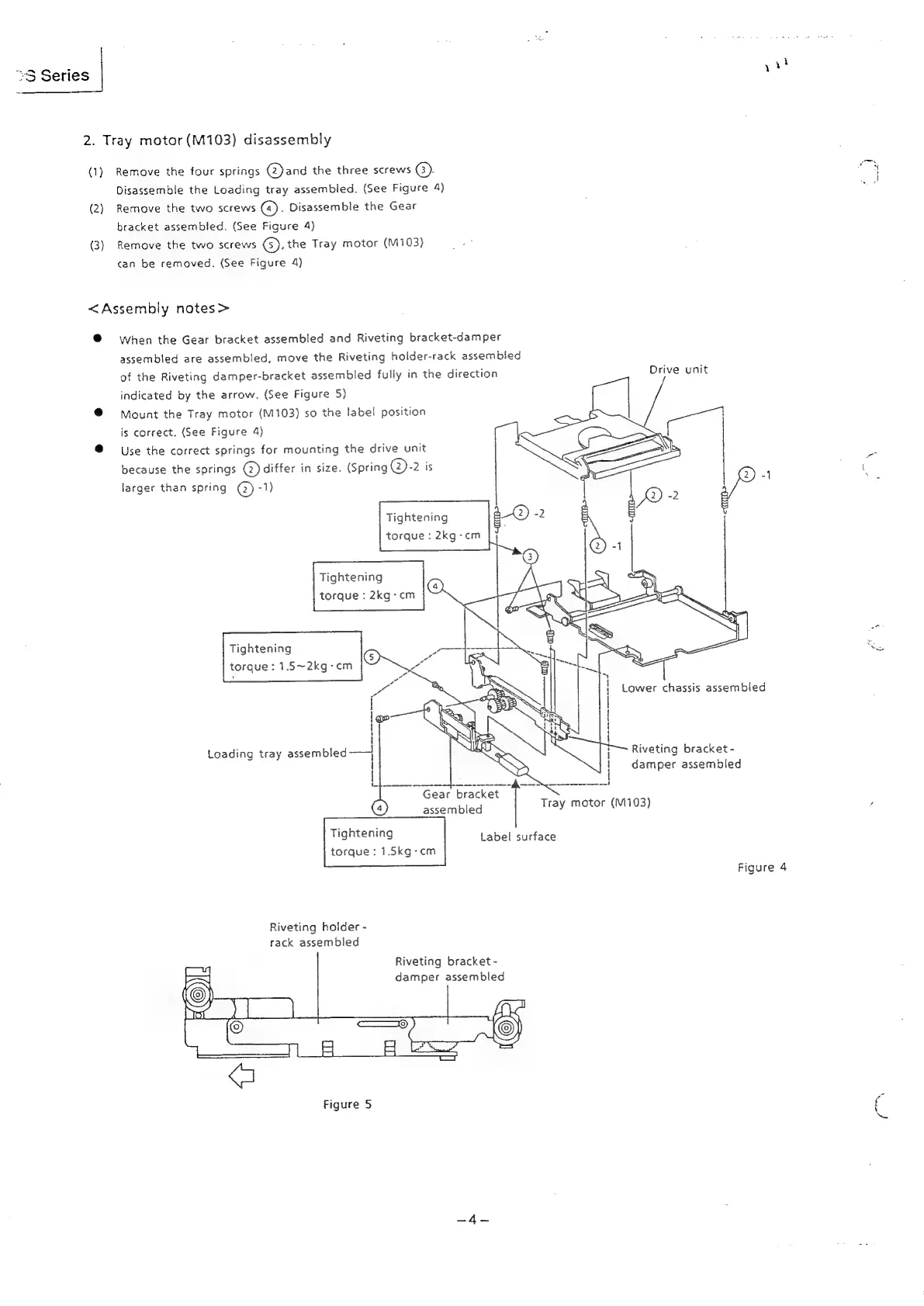

Figure 4
Riveting holder -
rack assembled
Riveting bracket-
damper assembled
Figure
5
