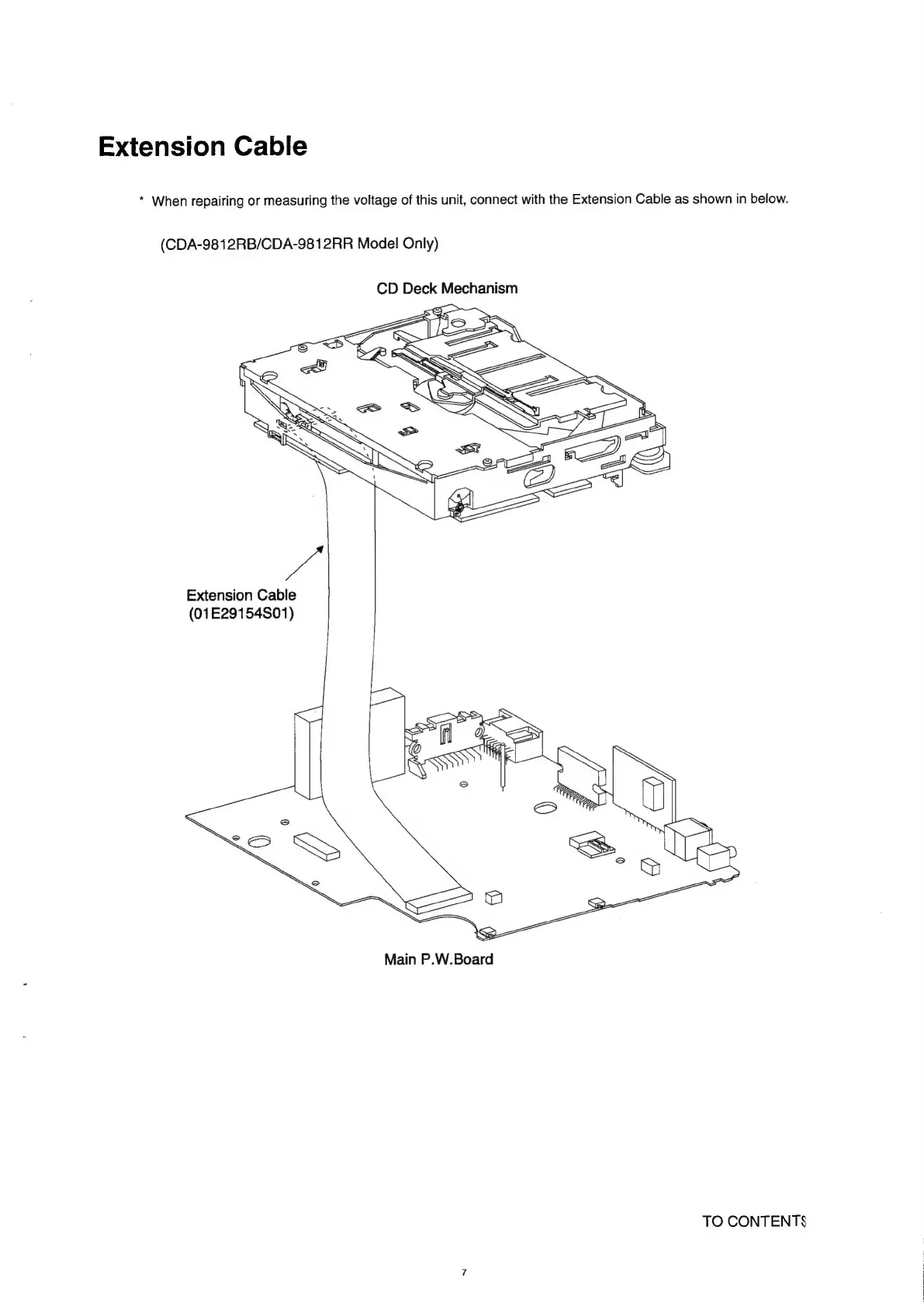

Extension
Cable
*
When
repairing
or
measuring
the
voltage
of
this
unit,
connect
with
the
Extension
Cable
as
shown
in
below.
(CDA-9812RB/CDA-9812RR
Model
Only)
CD
Deck
Mechanism
Extension
Cable
(01E29154S01)
Main
P.W.Board
TO
CONTENTS
