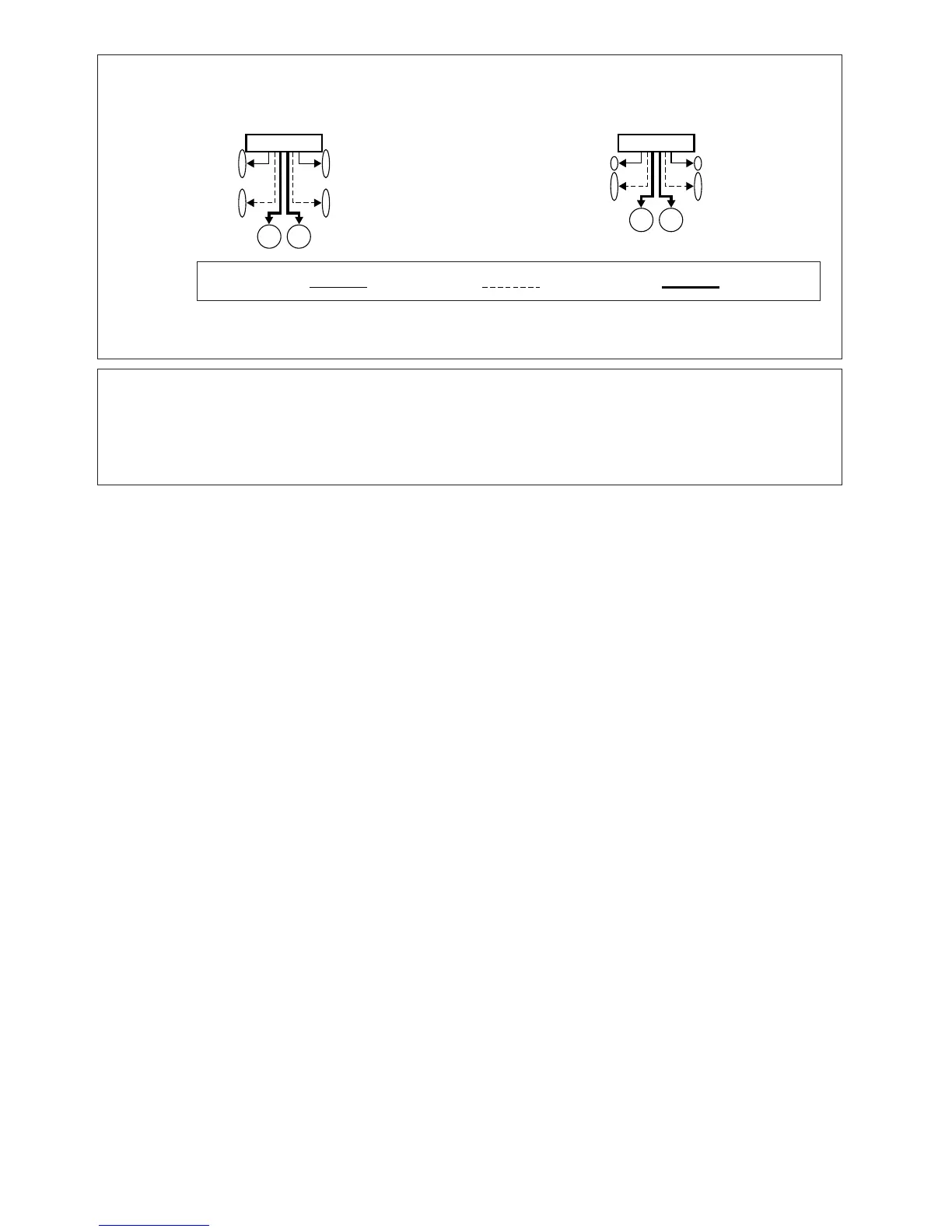

The X-Over Switch position for a two-way system
(frequency range is divided between highs for front/rear and
lows for the Subwoofer).
The X-Over Switch position for a three-way system whose
frequency range is divided among the highs (Front), mids
(Rear), and lows (Subwoofer).
•Use the Sub-W output cord to connect the unit to the low range speaker.
•You can use the built-in amplifier to output the front output/rear output.
•You cannot adjust the fader when set to 3WAY.
The position of the X-Over switch : F/R/Sub-W The position of the X-Over switch: 3WAY
Output of this unit :
Front output Rear output SUB-W output
High range
speaker (L)
Mid range
speaker (L)
High range
speaker (R)
Mid range
speaker (R)
Low range
speaker (L)
Low range
speaker (R)
Front high range
speaker (L)
Rear high range
speaker (L)
Front high range
speaker (R)
Rear high range
speaker (R)
Low range
speaker (L)
Low range
speaker (R)
To prevent noise/interference in the audio system.
• Locate the unit and route the leads at least 10 cm away from the car harness.
• Keep the battery power leads as far away from other leads as possible.
• Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis.
• If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various noise
suppressors, contact them for further information.
• Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.
