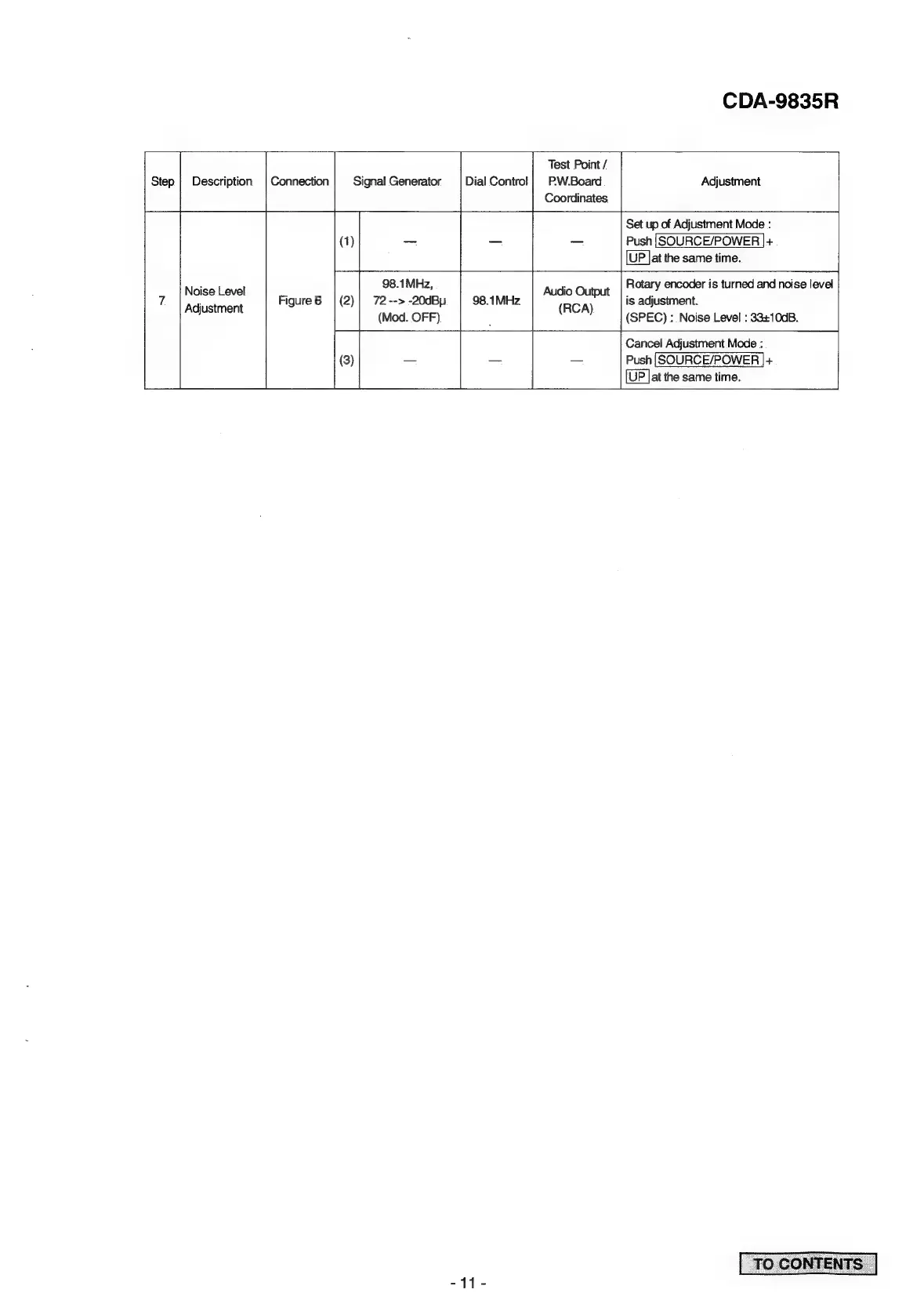

Alpine CDA-9835R - Page 11

Step | Description
Noise Level
Adjustment
Connection
Figure 6
CDA-9835R
Test Point /
Signal Generator Dial Control} PW.Board Adjustment
Coordinates
Set up of Adjustment Mode :
_ _ Push [SOURCE/POWER |+
[UP Jat the same time.
98.1MHz : Rotary encoder is turned and noise level
: Audio Out
(2)| 72-->-20dBy | 98.1MHz 7s : i is adjustment.
(Mod. OFF) (SPEC) :. Noise Level : 33z10dB.
(3)
Cancel Adjustment Mode :
Push |SOURCE/POWER |+
[UP lat the same time.
-11-
