Parts
Layout
on
P.W.Boards
and
Wiring
Diagram
(3/6)
|
CDA-9835R
TO CONTENTS.

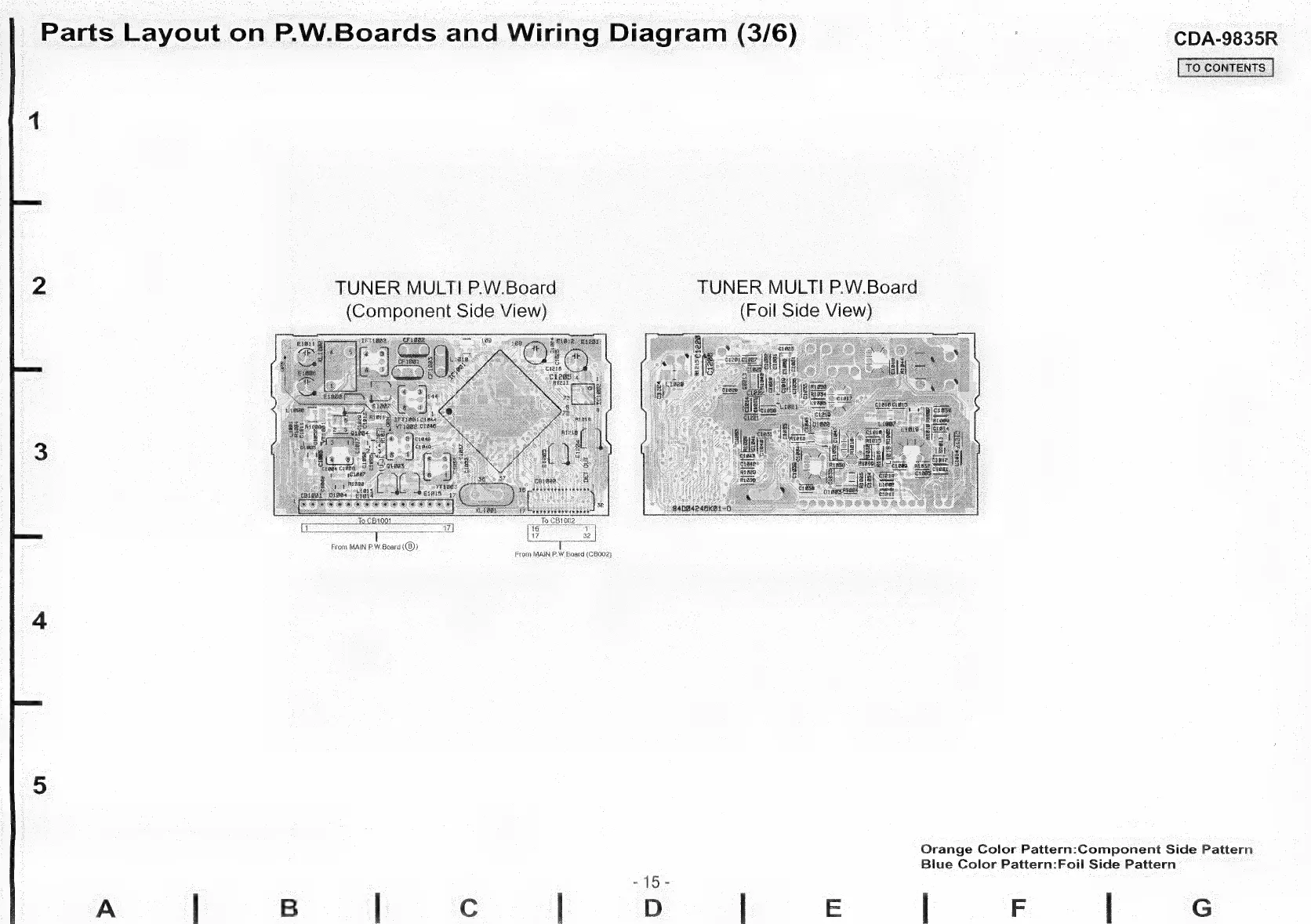

2 TUNER MULTI P.W.Board TUNER MULTI P.W.Board
(Component Side View) (Foil Side View)
pineeevananes
To CB1002
16 4
17 32
From MAIN P.W.Board (®)
From MAIN P.W. Board (CB002)
Orange Color Pattern:Component Side Pattern
Blue Color Pattern:Foil Side Pattern
A | B Cc D E F G
