Alpine CDE-1338T - Wiring and Connection Guide

35-EN

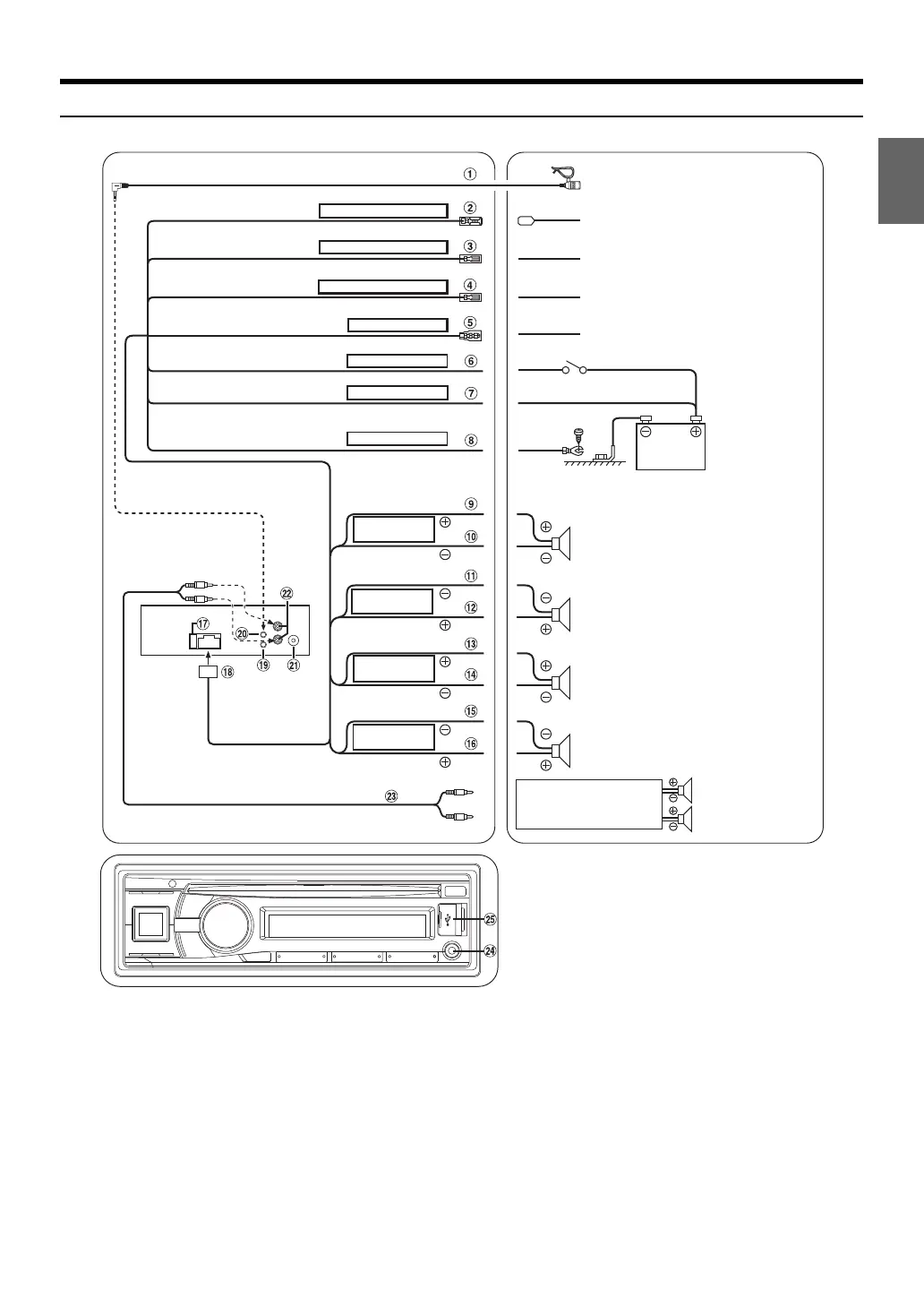

Connections
* When Subwoofer is OFF: Output is for Front speakers. When Subwoofer is ON: Output is for Subwoofer.
For details on how to set the Subwoofer to ON/OFF, refer to “Turning Subwoofer ON/OFF” on page 15.
ILLUMINATION
GND
BATTERY
REMOTE TURN-ON
AUDIO INTERRUPT IN
IGNITION
POWER ANT
Amplier
Microphone
(Blue)
To power antenna
(Blue/White)
To amplier
(Pink/Black)
Not used
(Orange)
To the instrument cluster illumination
lead
(Red)
Ignition Key
(Yellow)
(Black)
Battery
(Gray)
Speakers
SPEAKER
RIGHT FRONT
Front Right
(Gray/Black)
(Violet/Black)
SPEAKER
RIGHT REAR
Rear Right
(Violet)
(Green)
SPEAKER
LEFT REAR
Rear Left
(Green/Black)
(White/Black)
SPEAKER
LEFT FRONT
Front Left
Speakers
(White)
Front or Subwoofers*
