Alpine CDE-173EBT User Manual

32-EN
ALPINE CDE-170E 68-40368Z02-A (EN) 128x182

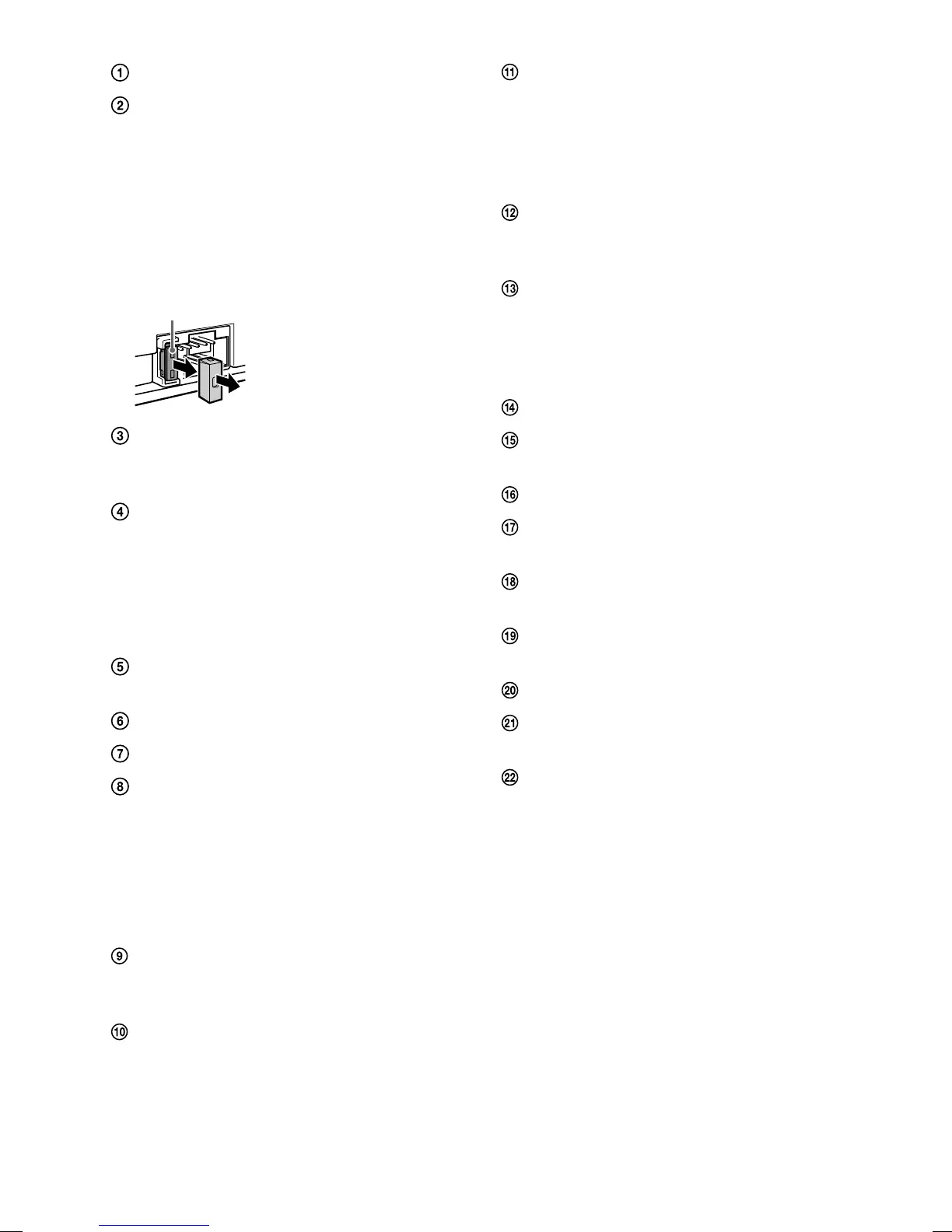

Power Supply Connector
Fuse Holder (10A)
Fuse replacement:
When replacing the fuse, be sure to use one
matching the amperage rating stated on the
original fuse. If the fuse blows, check the
power connection and replace the fuse. If the
fuse blows again after replacement, there
may be an internal malfunction. In such a
case, consult your nearest Alpine dealer.
Fuse (10 A)
MIC Input Connector (CDE-173EBT/ UTE-
73EBT only)
To Microphone.
Steering Remote Control Interface
Connector
To steering remote control interface box.
You can operate this unit from the vehicle’s
control unit when an Alpine Steering Remote
Control Interface Box (optional) is connected.
For details, contact your Alpine dealer.
Front Output RCA Connectors
RED is right and WHITE is left.
Subwoofer Output RCA Connectors
Antenna Receptacle
Power Antenna Lead (Blue)
Connect this lead to the +B terminal of your
power antenna, if applicable.
• This lead should be used only for controlling
the vehicle’s power antenna. Do not use this
lead to turn on an amplifier or a signal
processor, etc.
Remote Turn-On Lead (Blue/White)
Connect this lead to the remote turn-on lead
of your amplifier or signal processor.
Illumination Lead (Orange) (CDE-173EBT/
UTE-73EBT only)
This lead may be connected to the vehicle’s
instrument cluster illumination lead.
This will enable the vehicle’s dimmer control
to dim the backlighting of the unit.
Switched Power Lead (Ignition) (Red)
Connect this lead to an open terminal on the
vehicle’s fuse box or another unused power
source which provides (+) 12V only when the
ignition is turned on or in the accessory
position.
Battery Lead (Yellow)
Connect this lead to the positive (+) post of
the vehicle’s battery.
Ground Lead (Black)
Connect this lead to a good chassis ground
on the vehicle. Make sure the connection is
made to bare metal and is securely fastened
using the sheet metal screw provided.
Right Front (+) Speaker Output Lead (Gray)
Right Front (−) Speaker Output Lead (Gray/
Black)
Left Front (+) Speaker Output Lead (White)
Left Front (−) Speaker Output Lead (White/
Black)
Right Rear (+) Speaker Output Lead
(Violet)
Right Rear (−) Speaker Output Lead
(Violet/Black)
Left Rear (+) Speaker Output Lead (Green)
Left Rear (−) Speaker Output Lead (Green/
Black)
RCA Extension Cable (not supplied)
To preve
the aud
• Locate
10 cm
a
• Keep th
from ot
• Connec
metal s
if neces
• If you a
connec
possibl
noise s
inform
• Your A
l
preven
for furt
