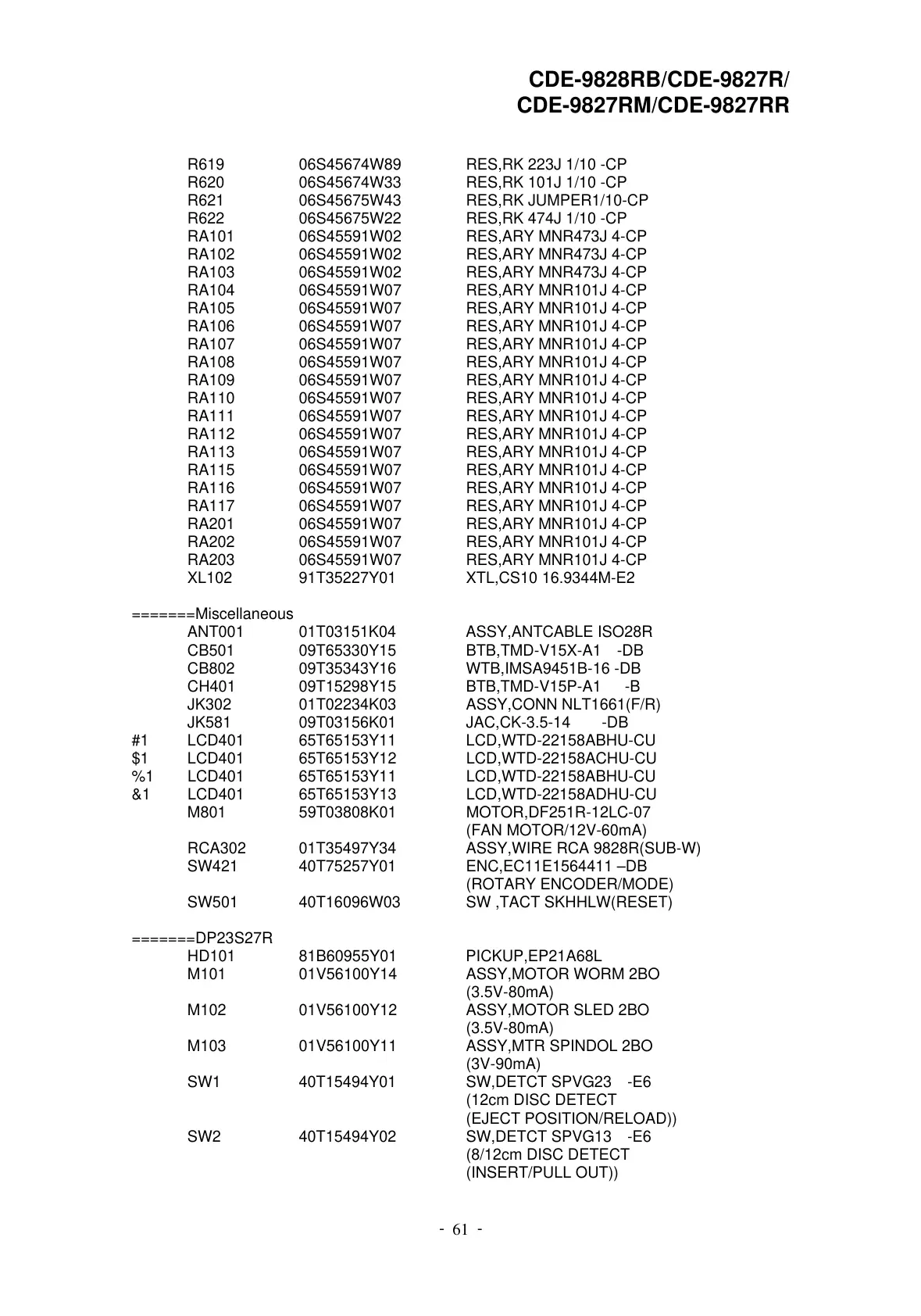

CDE-9828RB/CDE-9827R/
CDE-9827RM/CDE-9827RR
R619 06S45674W89 RES,RK 223J 1/10 -CP
R620 06S45674W33 RES,RK 101J 1/10 -CP
R621 06S45675W43 RES,RK JUMPER1/10-CP
R622 06S45675W22 RES,RK 474J 1/10 -CP
RA101 06S45591W02 RES,ARY MNR473J 4-CP
RA102 06S45591W02 RES,ARY MNR473J 4-CP
RA103 06S45591W02 RES,ARY MNR473J 4-CP
RA104 06S45591W07 RES,ARY MNR101J 4-CP
RA105 06S45591W07 RES,ARY MNR101J 4-CP
RA106 06S45591W07 RES,ARY MNR101J 4-CP
RA107 06S45591W07 RES,ARY MNR101J 4-CP
RA108 06S45591W07 RES,ARY MNR101J 4-CP
RA109 06S45591W07 RES,ARY MNR101J 4-CP
RA110 06S45591W07 RES,ARY MNR101J 4-CP
RA111 06S45591W07 RES,ARY MNR101J 4-CP
RA112 06S45591W07 RES,ARY MNR101J 4-CP
RA113 06S45591W07 RES,ARY MNR101J 4-CP
RA115 06S45591W07 RES,ARY MNR101J 4-CP
RA116 06S45591W07 RES,ARY MNR101J 4-CP
RA117 06S45591W07 RES,ARY MNR101J 4-CP
RA201 06S45591W07 RES,ARY MNR101J 4-CP
RA202 06S45591W07 RES,ARY MNR101J 4-CP
RA203 06S45591W07 RES,ARY MNR101J 4-CP
XL102 91T35227Y01 XTL,CS10 16.9344M-E2
=======Miscellaneous
ANT001 01T03151K04 ASSY,ANTCABLE ISO28R
CB501 09T65330Y15 BTB,TMD-V15X-A1 -DB
CB802 09T35343Y16 WTB,IMSA9451B-16 -DB
CH401 09T15298Y15 BTB,TMD-V15P-A1 -B
JK302 01T02234K03 ASSY,CONN NLT1661(F/R)
JK581 09T03156K01 JAC,CK-3.5-14 -DB
#1 LCD401 65T65153Y11 LCD,WTD-22158ABHU-CU
$1 LCD401 65T65153Y12 LCD,WTD-22158ACHU-CU
%1 LCD401 65T65153Y11 LCD,WTD-22158ABHU-CU
&1 LCD401 65T65153Y13 LCD,WTD-22158ADHU-CU
M801 59T03808K01 MOTOR,DF251R-12LC-07
(FAN MOTOR/12V-60mA)
RCA302 01T35497Y34 ASSY,WIRE RCA 9828R(SUB-W)
SW421 40T75257Y01 ENC,EC11E1564411 –DB
(ROTARY ENCODER/MODE)
SW501 40T16096W03 SW ,TACT SKHHLW(RESET)
=======DP23S27R
HD101 81B60955Y01 PICKUP,EP21A68L
M101 01V56100Y14 ASSY,MOTOR WORM 2BO
(3.5V-80mA)
M102 01V56100Y12 ASSY,MOTOR SLED 2BO
(3.5V-80mA)
M103 01V56100Y11 ASSY,MTR SPINDOL 2BO
(3V-90mA)
SW1 40T15494Y01 SW,DETCT SPVG23 -E6
(12cm DISC DETECT
(EJECT POSITION/RELOAD))
SW2 40T15494Y02 SW,DETCT SPVG13 -E6
(8/12cm DISC DETECT
(INSERT/PULL OUT))
- -
61
