CDE-9828RB/CDE-9827R/
CDE-9827RM/CDE-9827RR

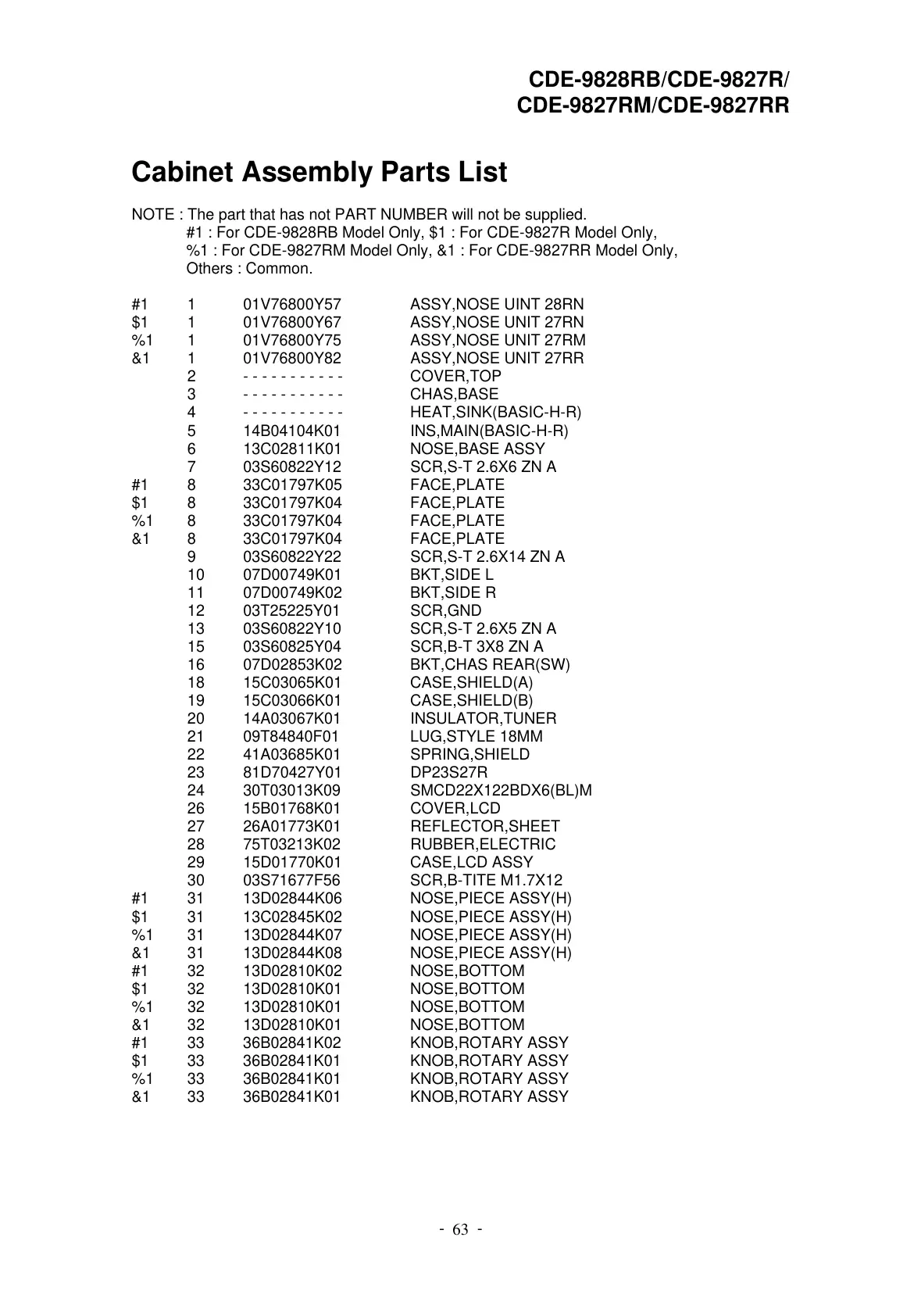

Cabinet Assembly Parts List
NOTE : The part that has not PART NUMBER will not be supplied.
#1 : For CDE-9828RB Model Only, $1 : For CDE-9827R Model Only,
%1 : For CDE-9827RM Model Only, &1 : For CDE-9827RR Model Only,
Others : Common.
#1 1 01V76800Y57 ASSY,NOSE UINT 28RN
$1 1 01V76800Y67 ASSY,NOSE UNIT 27RN
%1 1 01V76800Y75 ASSY,NOSE UNIT 27RM
&1 1 01V76800Y82 ASSY,NOSE UNIT 27RR
2 - - - - - - - - - - - COVER,TOP
3 - - - - - - - - - - - CHAS,BASE
4 - - - - - - - - - - - HEAT,SINK(BASIC-H-R)
5 14B04104K01 INS,MAIN(BASIC-H-R)
6 13C02811K01 NOSE,BASE ASSY
7 03S60822Y12 SCR,S-T 2.6X6 ZN A
#1 8 33C01797K05 FACE,PLATE
$1 8 33C01797K04 FACE,PLATE
%1 8 33C01797K04 FACE,PLATE
&1 8 33C01797K04 FACE,PLATE
9 03S60822Y22 SCR,S-T 2.6X14 ZN A
10 07D00749K01 BKT,SIDE L
11 07D00749K02 BKT,SIDE R
12 03T25225Y01 SCR,GND
13 03S60822Y10 SCR,S-T 2.6X5 ZN A
15 03S60825Y04 SCR,B-T 3X8 ZN A
16 07D02853K02 BKT,CHAS REAR(SW)
18 15C03065K01 CASE,SHIELD(A)
19 15C03066K01 CASE,SHIELD(B)
20 14A03067K01 INSULATOR,TUNER
21 09T84840F01 LUG,STYLE 18MM
22 41A03685K01 SPRING,SHIELD
23 81D70427Y01 DP23S27R
24 30T03013K09 SMCD22X122BDX6(BL)M
26 15B01768K01 COVER,LCD
27 26A01773K01 REFLECTOR,SHEET
28 75T03213K02 RUBBER,ELECTRIC
29 15D01770K01 CASE,LCD ASSY
30 03S71677F56 SCR,B-TITE M1.7X12
#1 31 13D02844K06 NOSE,PIECE ASSY(H)
$1 31 13C02845K02 NOSE,PIECE ASSY(H)
%1 31 13D02844K07 NOSE,PIECE ASSY(H)
&1 31 13D02844K08 NOSE,PIECE ASSY(H)
#1 32 13D02810K02 NOSE,BOTTOM
$1 32 13D02810K01 NOSE,BOTTOM
%1 32 13D02810K01 NOSE,BOTTOM
&1 32 13D02810K01 NOSE,BOTTOM
#1 33 36B02841K02 KNOB,ROTARY ASSY
$1 33 36B02841K01 KNOB,ROTARY ASSY
%1 33 36B02841K01 KNOB,ROTARY ASSY
&1 33 36B02841K01 KNOB,ROTARY ASSY
- -
63
