Alpine CDE-9874R User Manual

28-EN

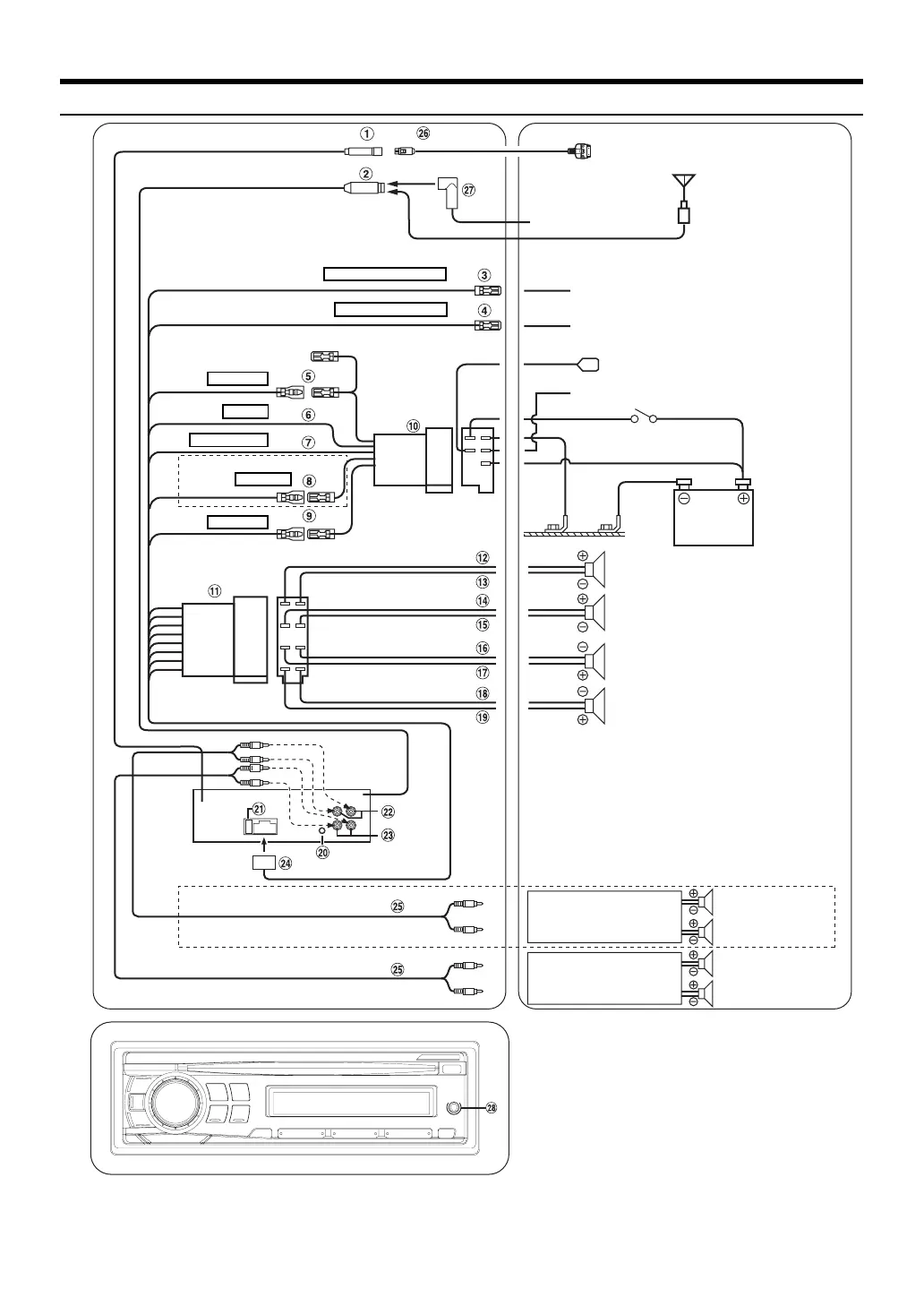

Connections
*
1
When Subwoofer is OFF: Output is for Rear speakers. When Subwoofer is ON: Output is for Subwoofer.
*
2
When Subwoofer is OFF: Output is for Front speakers. When Subwoofer is ON: Output is for Subwoofer.
For details on how to set the Subwoofer to ON/OFF, see “Subwoofer On and Off” on page 17.
Antenna
(Pink/Black) AUDIO INTERRUPT IN
(Blue/White) REMOTE TURN-ON
(Orange) DIMMER
(Red) IGNITION
(Black) GND
(Blue) POWER ANT
BATTERY
(Green)
(Green/Black)
(Grey/Black)
(White/Black)
(Grey)
(Violet/Black)
(Violet)
JASO Antenna Plug
ISO Antenna Plug
To vehicle phone
To amplifier or equalizer
To the instrument cluster illumination lead
To power antenna
Ignition Key
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
(White)
(Yellow)
To iPod
CDE-9874 Series:
Rear or Subwoofers
*
1
Amplifier
Amplifier
Front Left
Front Right
Speakers
CDE-9874 Series only
CDE-9872 Series:
Front or Subwoofers
*
2
CDE-9874 Series only
CDE-9874RB only
