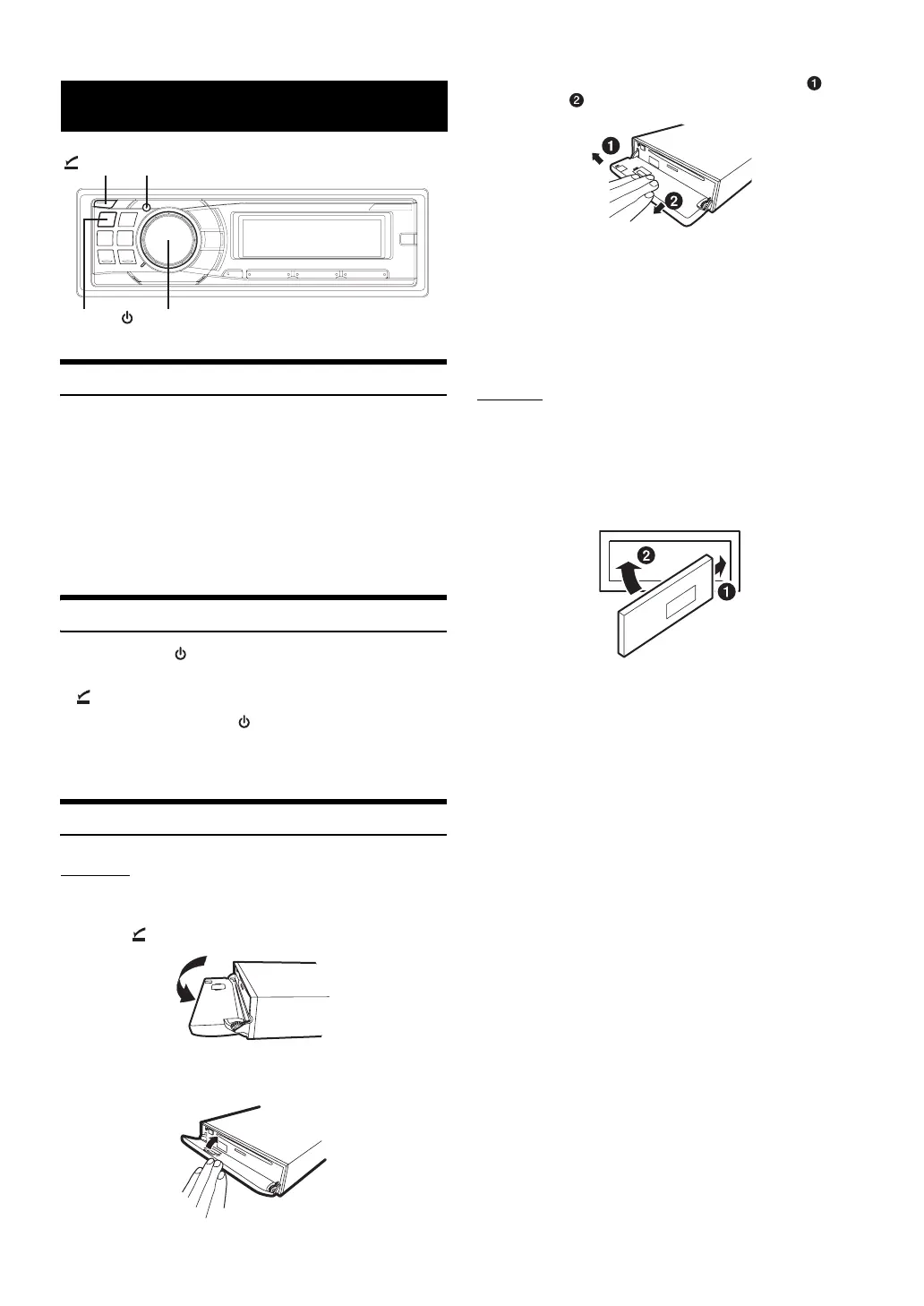

Alpine CDE-9880R User Manual

6-EN
Accessory List
• Head unit ............................................................................1
• Power cable ........................................................................1
• FULL SPEED
TM
Connection Cable
(CDE-9882Ri only)..............................................................1
• Mounting sleeve.................................................................1
• Carrying case.....................................................................1
• Rubber Cap ........................................................................1
• Hex Bolt ..............................................................................1
• Screw (M5 × 8)....................................................................4
• Owner’s Manual .......................................................... 1 set
Turning Power On and Off
Press SOURCE/ to turn on the unit.
• The unit can be turned on by pressing any other button except
(OPEN).
Press and hold SOURCE/ for at least 2 seconds to
turn off the unit.
• The first time power is turned on, the volume will start from level 12.
Detaching and Attaching the Front Panel
Detaching
1 Turn off the unit power.
2 Press (OPEN) to open the front panel.
To close the front panel, press the left side until it locks as
shown in the figure below.
3 Grasp the front panel firmly, slide to the left , and
then pull to remove.
• The front panel may become hot in normal usage (especially the
connector terminals on the back of the front panel). This is not a
malfunction.
• To protect the front panel, place it in the supplied carrying case.
• When detaching the front panel, do not apply excessive force as it
may result in malfunction.
• Do not leave the front panel open, or drive the car with the panel
open as it may result in an accident or malfunction.
Attaching
1 Insert the right side of the front panel into the main
unit. Align the groove on the front panel with the
projections on the main unit.
2 Push the left side of the front panel until it locks
firmly into the main unit.
• Before attaching the front panel, make sure that there is no dirt or
dust on the connector terminals and no foreign object between the
front panel and the main unit.
• Attach the front panel carefully, holding the sides of the front panel to
avoid pushing buttons by mistake.
Getting Started
SOURCE/
Rotary encoder
(OPEN)
MUTE

Alpine CDE-9880R Specifications

General

MP3 playback	Yes
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	30
Output power	200 W
Product color	Black
Frequency range	5 - 20000 Hz
Disc types supported	CD, CD-R, CD-RW
Equalizer bands quantity	2
Signal-to-Noise Ratio (SNR)	105 dB
Display type	LCD
File type	MP3, AAC, WMA
Key illumination color	Green
Number of optical discs	1 discs

Weight and Dimensions

Dimensions (WxDxH)	178 x 50 x 160 mm
