Alpine CDE-W233R User Manual

42-EN

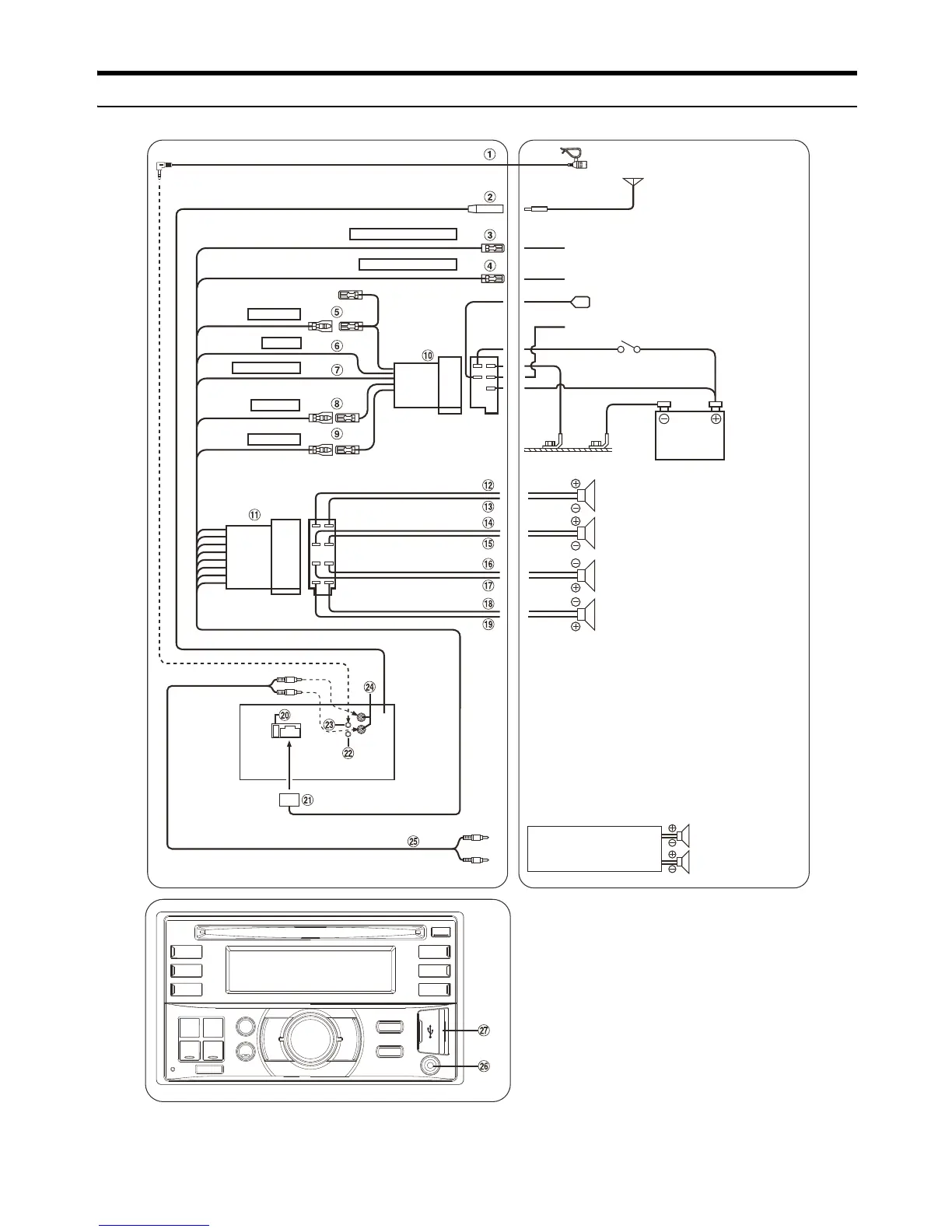

Connections
* When Subwoofer is OFF: Output is for Front speakers. When Subwoofer is ON: Output is for Subwoofer.
For details on how to set the Subwoofer to ON/OFF, refer to “Turning Subwoofer ON/OFF” on page 19.
AUDIO INTERRUPT IN
REMOTE TURN-ON
IGNITION
GND
POWER ANT
DIMMER
BATTERY
Microphone (Included) (CDE-W235BT only)
Antenna
To Vehicle phone (Not used for CDE-W235BT)
To amplier or equalizer
To power antenna
To the instrument cluster illumination lead
Ignition Key
(Pink/Black)
(Blue/White)
(Red)
(Black)
(Blue)
Amplier
Battery
Speakers
Rear Left
Front Left
Front Right
Rear Right
Speakers
Front or Subwoofers*
(Green)
(Green/Black)
(White)
(White/Black)
(Grey/Black)
(Grey)
(Violet/Black)
(Violet)
(Orange)
(Yellow)

Alpine CDE-W233R Specifications

General

Audio system	4.0
MP3 playback	Yes
DVD Audio playback	No
Playback disc formats	CD audio
Audio formats supported	AAC, CD-A, MP3, WMA
Image formats supported	Not supported
AM band range	531 - 1602 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 281 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	30
Impedance	4 Ω
Output power	200 W
RDS features	RT, TA
Product color	Multicolor
Volume control	Digital
Disc types supported	CD, CD-R, CD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Display type	LCD
Display digits	28 digits
Display number of lines	2 lines
Display number of colors	Monochrome
Digital audio optical out	0
Apple docking compatibility	iPad, iPod
Material	Metal, Plastic
File format system	FAT 16/32
Power requirements	11 - 16 VDC
Compatible products	iPod / iPhone / Nokia
Key illumination color	Multi
Number of optical discs	1 discs
Operating temperature (T-T)	-10 - 60 °C

Weight and Dimensions

Depth	160 mm
Width	178 mm
Height	100 mm
Weight	1600 g
Dimensions (WxDxH)	178 x 160 x 100 mm
