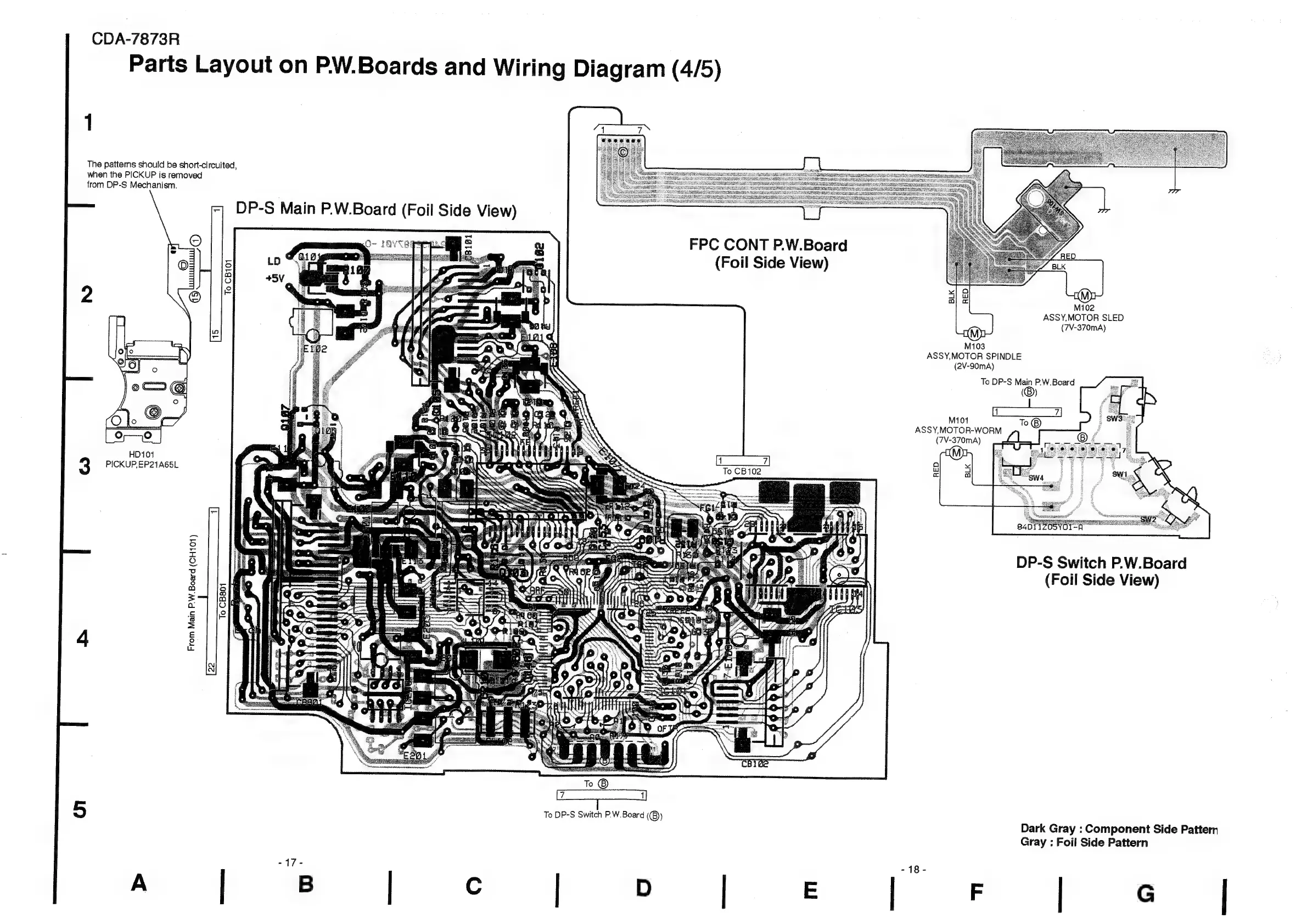

CDA-7873R
Parts
Layout
on
PW.Boards
and
Wiring
Diagram
(4/5)
The patterns should be short-circuited,
when the PICKUP is removed
trom DP-S Mechanism.
DP-S
Main
P.W.Board
(Foil
Side
View)
FPC CONT P.W.Board
(Foil Side View)
Mi02
ASSY,MOTOR SLED
(7V-370mA)
M103
ASSY,MOTOR SPINDLE
(2V-90mA)
To DP-S Main P.W.Board
(®)
M101
ASSY,MOTOR-WORM
(7V-370mA)
HD101
PICKUP,EP21A65L
DP-S Switch P.W.Board
(Foil Side View)
yor
I
From Main P.W.Board (CH101)
To CB801
To DP-S Switch P.W.Board (®))
Dark Gray : Component Side Pattern
Gray : Foil Side Pattern
-17-
-18-
A
|
B
Cc
|
D
|
E
F
G
