Alpine CDM-7859RB - Page 8

Parts
Layout
on
P.W.Boards
and
Wiring
Diagram
(3/4)
(CDM-7859RB/CDM-7858RB
Model
Only)

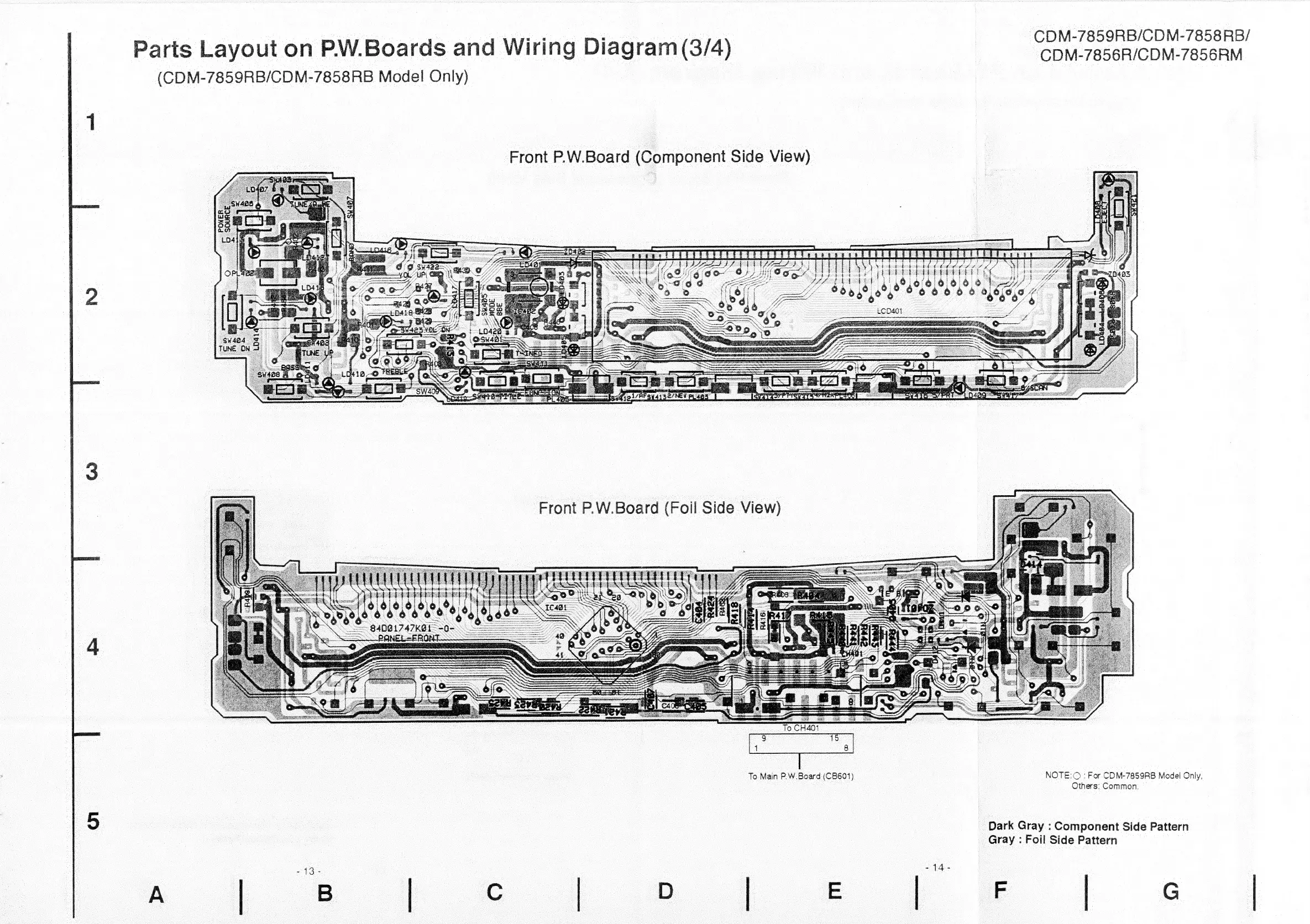

Front P.W.Board (Component Side View)
Front P.W.Board (Foil Side View)
To Main P.W. Board (CB601)
CDM-7859RB/CDM-7858RB/
CDM-7856R/CDM-7856RM
NOTE:© : For CDM-7859RB Model Only,
Others: Common.
Dark Gray : Component Side Pattern
Gray : Foil Side Pattern
