Jeep Wrangler
i509-WRA-JK 20220404v1
10/22

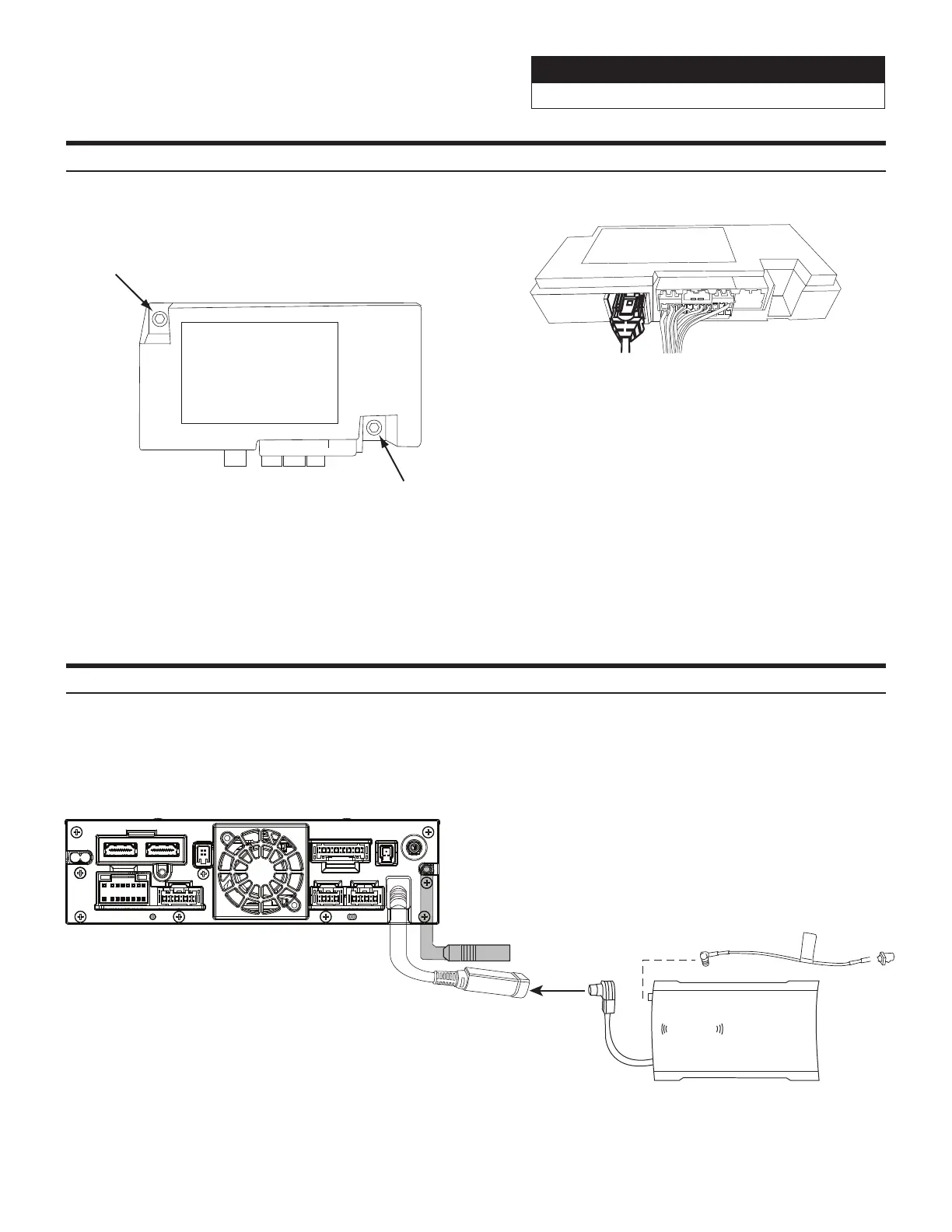

Removing the Uconnect® (only for vehicles with factory Uconnect®)
1 Remove the factory climate control panel. It is
clipped on and can be removed with a panel
removing tool. Extract the (2) 7mm bolts from
Uconnect® module.
3 Secure the Uconnect® module to the original
location using the 7mm bolts.
2 Disconnect the 24pin OEM connector.
4. NOTE: If Uconnect® module is not disconnected
the Uconnect® system will stay paired with
previously paired phones. The user’s phone may
connect to both Bluetooth devices simultaneously
resulting in unpredictable and potentially distracting
behavior. The feature is not retained by the i509 and
the OEM USB should not be used.
There is no way to integrate the factory SiriusXM tuner. Once the radio is removed, the factory SiriusXM is
removed. As the title states, SiriusXM requires a tuner sold separately. This diagram shows how to integrate the
antenna connection. For vehicles with factory SiriusXM connect the adapter to the factory SiriusXM antenna in the
radio cavity. The factory SiriusXM antenna is located on the passenger side B-pillar. For vehicles without factory
SiriusXM use the antenna that is included with the SXV300 SiriusXM Tuner.
Connecting A SiriusXM Module (Sold Separately)
SiriusXm
connect
PREOUT
USB
CAMERA
ANTENNA
MAIN
REMOTE
SXM
DISPLAY
EX KEY
GPS
OUT
IN
To Next Page
