Jeep Wrangler
i509-WRA-JK 20220404v1
11/22

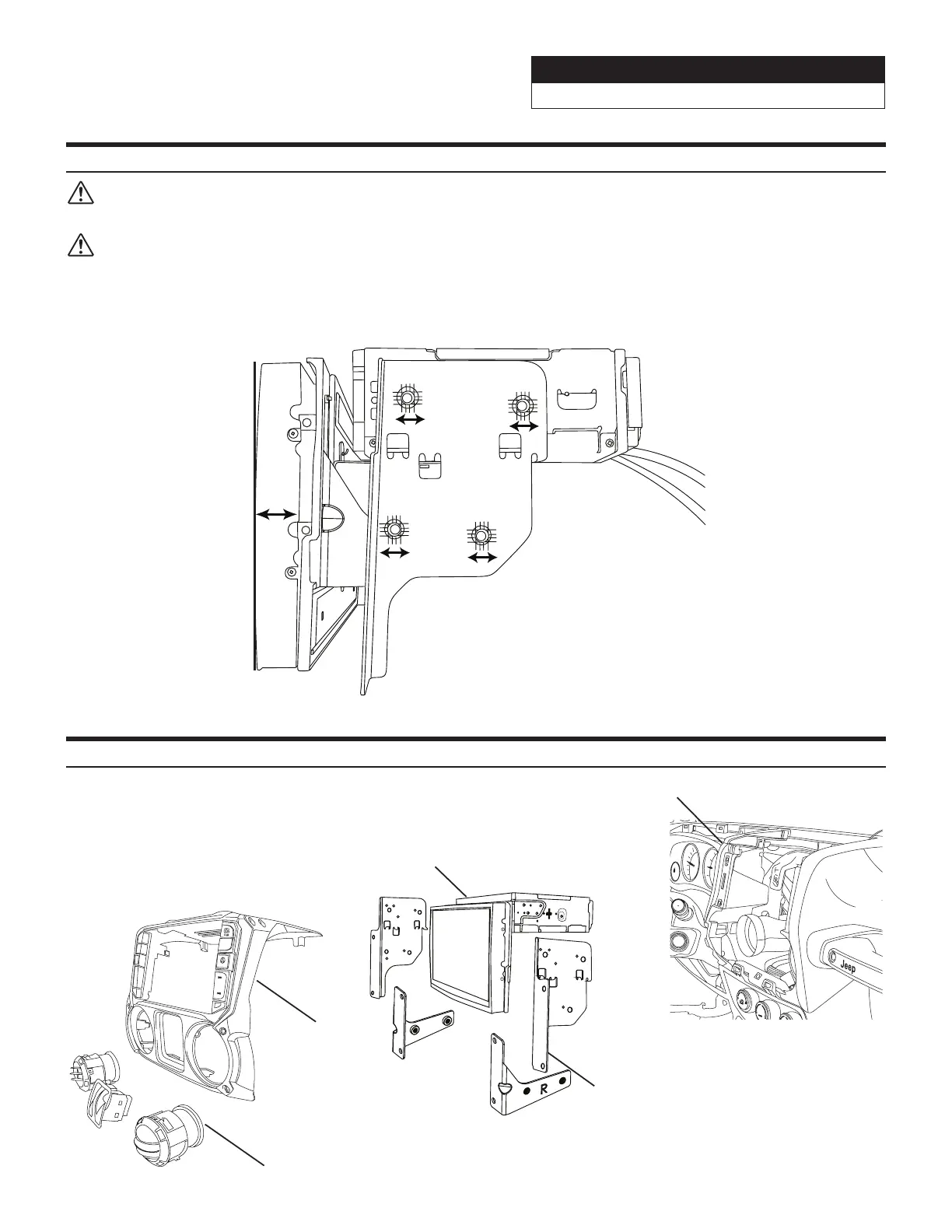

Mounting Brackets
DISCONNECT THE BATTERY BEFORE CONTINUING. FAILURE TO DO SO WILL DISABLE MANY
FEATURES.
IMPORTANT: During the research and development of this product it was discovered that mounting
tolerance may vary from the vehicle’s trim level to year built. We have added a 1mm tolerance to the
mounting brackets to compensate for such variance in mounting tolerance. Use the guides below as
reference if there are any required adjustments.
Adjust the rear bracket as needed when the top or bottom is protruding or not flushed.
Adjust the side brackets as needed when either side is protruding or not flushed.
Exploded-View Diagram
Dash Board
A
/C
i509-WRA
Radio Dash
Bezel
Factory Vents and Window
Switch Pod (not included)
i509 Source Unit
Side Mounting
Brackets
