Alpine i509 User Manual

90-EN

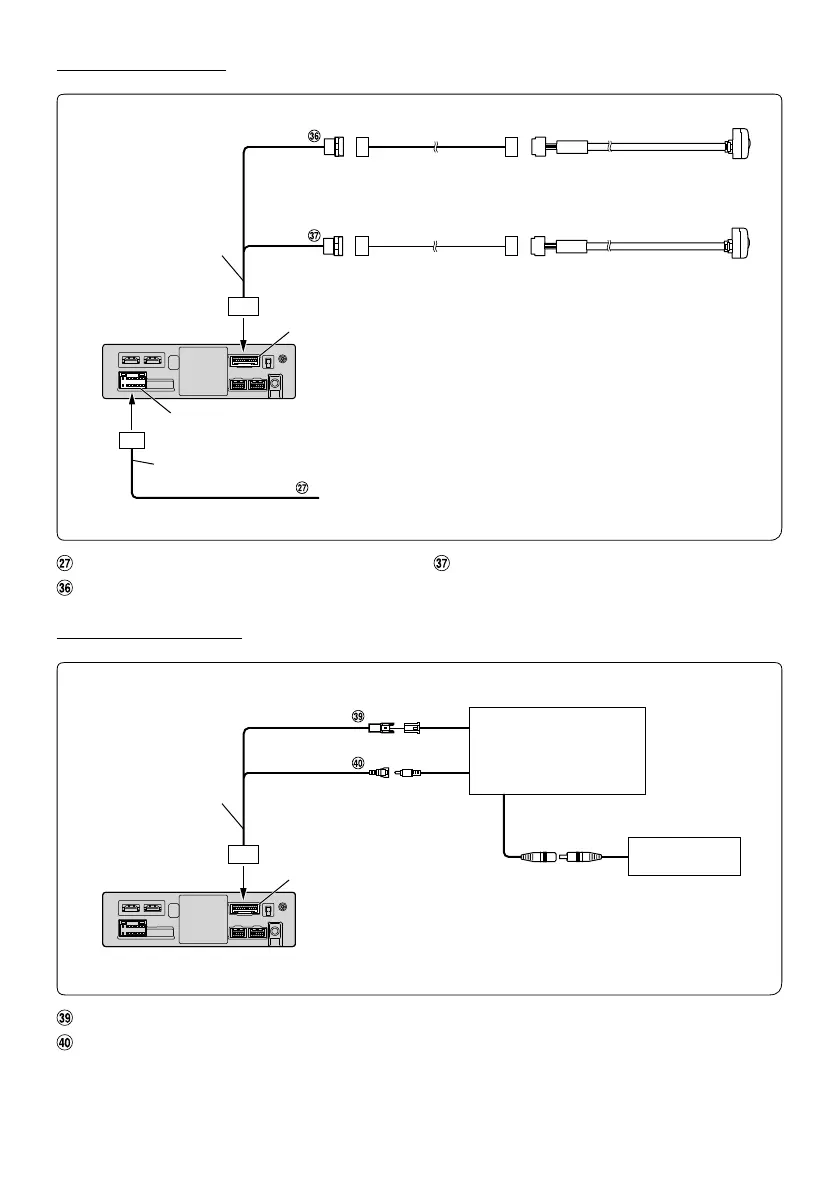

Connection of a Camera
CAMERA cable
Power Supply Connector
Power cable
CAMERA Connector
Reverse
(Orange/White)
Camera extension cable
(included with direct rearview camera)
Rear Camera (sold separately)
Front or Side Camera
(sold separately)
REAR CAMERA
FRONT CAMERA Camera extension cable
(included with direct frontview camera)
Connect to the plus side of the car’s reverse lamp.
Reverse Lead (Orange/White)
REAR CAMERA Input Connector
FRONT CAMERA Input Connector
Connection of a Dash Cam
CAMERA cable
CAMERA Connector
(Yellow)
Rear Camera
(sold separately)
Dash Cam
(sold separately)
LIN
Drive Recorder IN
LIN Connector
Drive Recorder Input Connector
