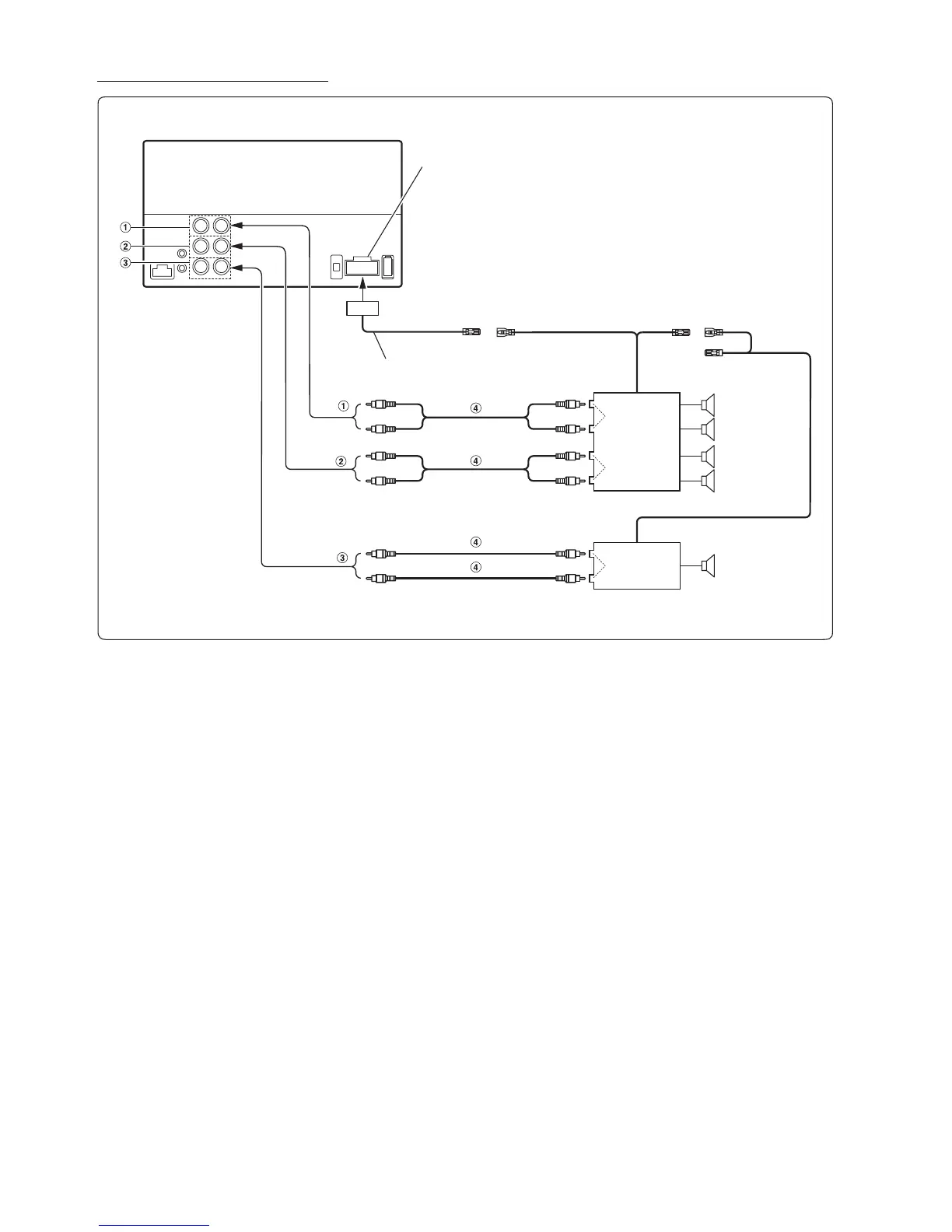

Connection of an External Amplifier
1 Front Output RCA Connectors
RED is right and WHITE is left.
2 Rear Output RCA Connectors
RED is right and WHITE is left.
3 Subwoofer RCA Connector
4 RCA Extension Cable (Sold separately)
Power Supply Connector
Amplifier 4 ch (Sold separately)
Input
Input
Front speaker
Rear speaker
REMO
(Blue/White)
Power Cable
Amplifier for subwoofer (Sold separately)
Input
Subwoofer
REMOTE ON
(Blue/White)
REMOTE ON
(Blue/White)
To Next Page
