34-EN

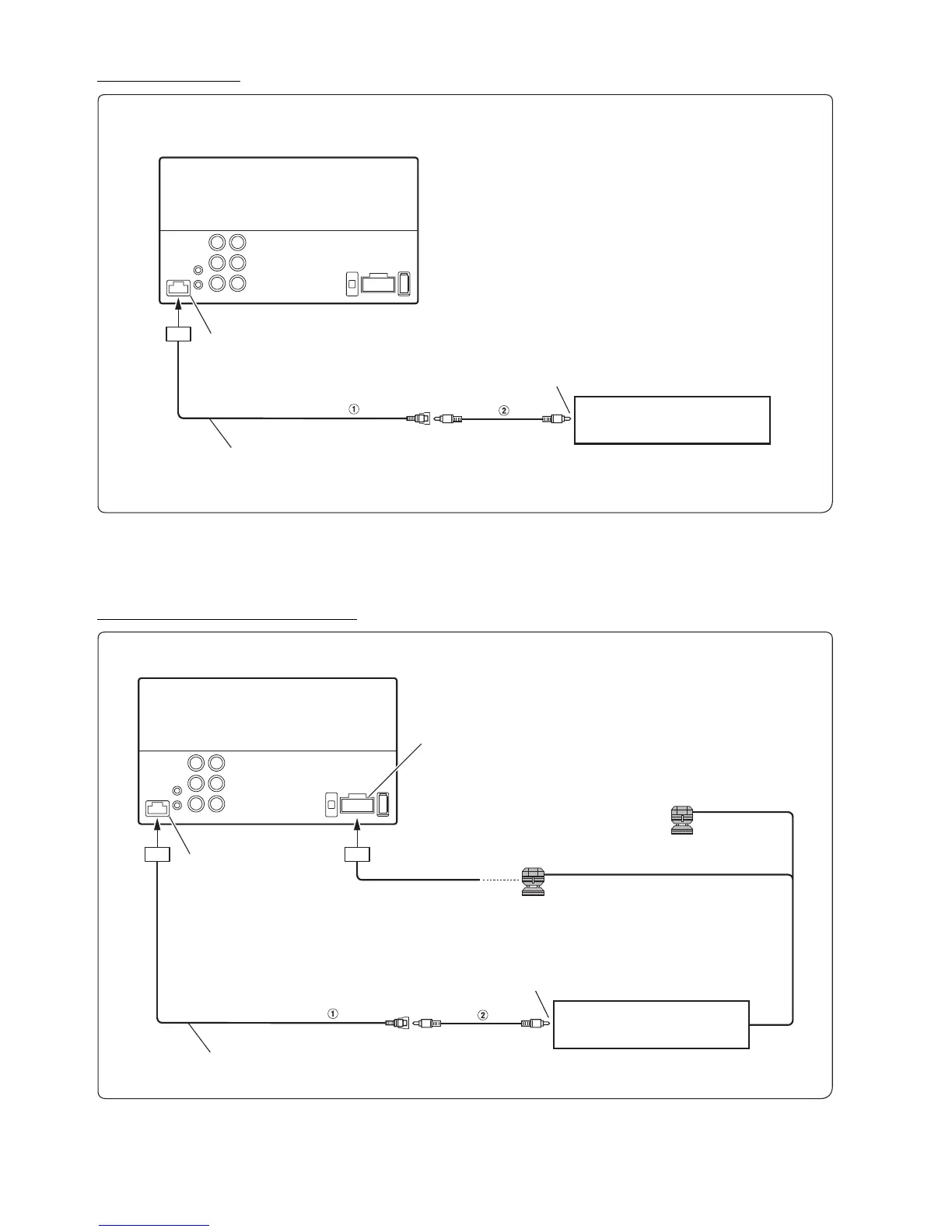

Connection of camera
1 CAMERA Input Connector
• When a rear camera is used, make sure REVERSE cable is connected
correctly.
2 RCA Extension Cable (sold separately)
Connection of HCE-C200F + HCE-C200R
1 CAMERA Input Connector
• When a rear camera is used, make sure REVERSE cable is connected
correctly.
2RCA Extension Cable (HCE-C200R included)
To Video Output terminal
Camera with RCA video output (sold
separately)
HCE-C105, etc.
AUX/CAMERA/REMOTE OUT Connector
CAMERA Cable
To Video Output Terminal
(Yellow)
Control Unit
To plus side of the back lamp
signal lead of the car.
Camera Control Lead
Power Supply Connector
AUX/CAMERA/REMOTE OUT
Connector
REVERSE
(Orange/White)
(Orange/Black)
CAMERA Cable
To Next Page
