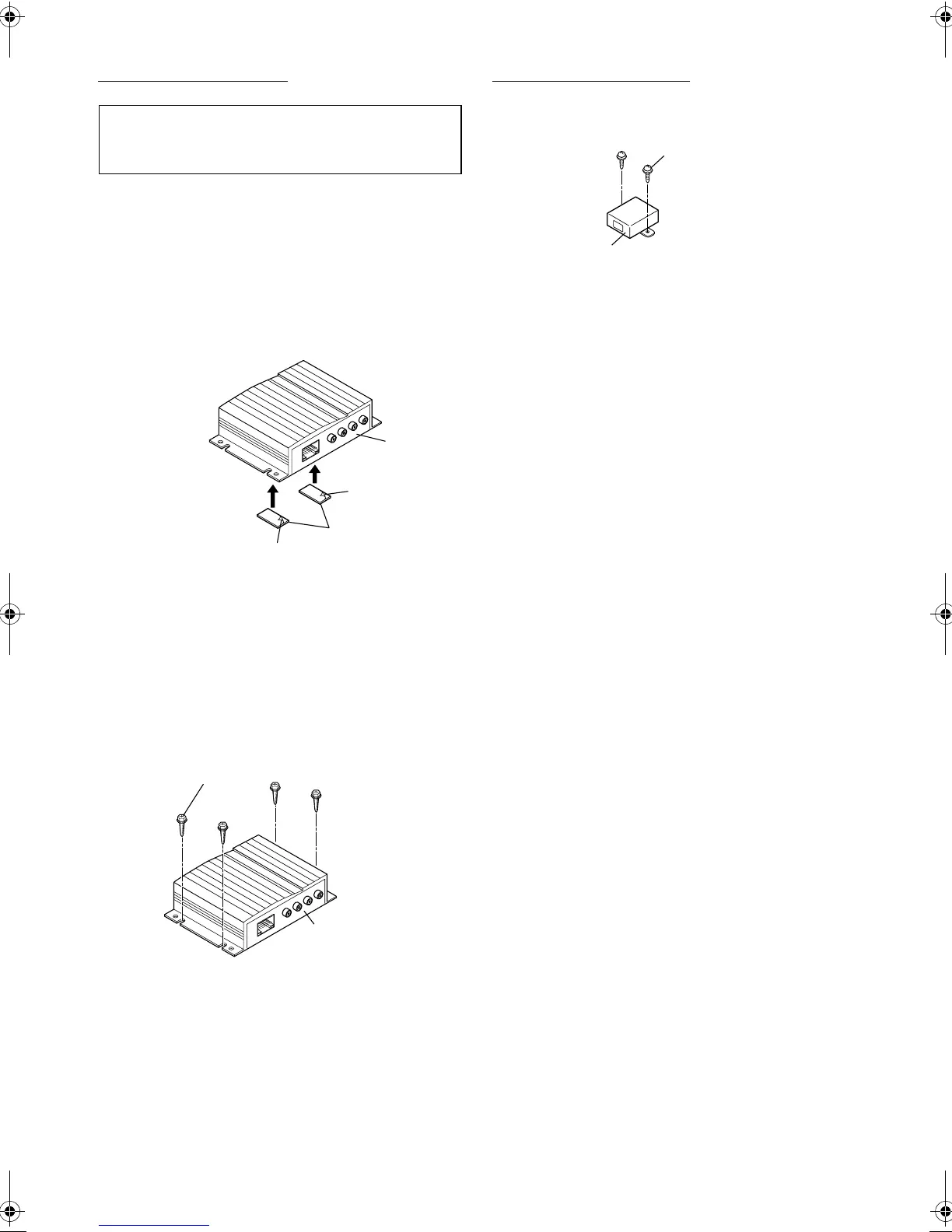

Installing the Power Amplifier
When mounting with Velcro fasteners
When mounting the Power Amplifier with the Velcro fasteners, be sure
to choose a flat location.
Do not hang the unit from the bottom of the dashboard or rear deck with
the Velcro fasteners.
1 Remove the Protective paper and attach two pieces
of Velcro fastener to the bottom of the Power
Amplifier.
2 Check the position, and then fix the Power Amplifier
to the floor carpet.
When mounting with Screws
When mounting the Power Amplifier with the screws, be sure to choose
a flat location.
When making holes, be careful not to scratch any pipes or wires.
1 Install the Power Amplifier on the floor with the
supplied hexagonal screw (M4 × 15).
Installing the DC/DC Converter
Install the DC/DC Converter on the floor with the
supplied flange-head tapping screws (M4 × 14).
This Power Amplifier is designed for use only with the IVA-D100R/
IVA-D100RB. If products other than IVA-D100R/IVA-D100RB are
connected to the supplied Power Amplifier, its specified
performance is not guaranteed.
Power
Amplifier
Protective paper
Velcro Fasteners
(Included)
Protective paper
Power Amplifier
Hexagonal screw (M4 × 15)
(Included)
DC/DC Converter
Flange-head tapping
screws (M4 × 14)
(Included)
