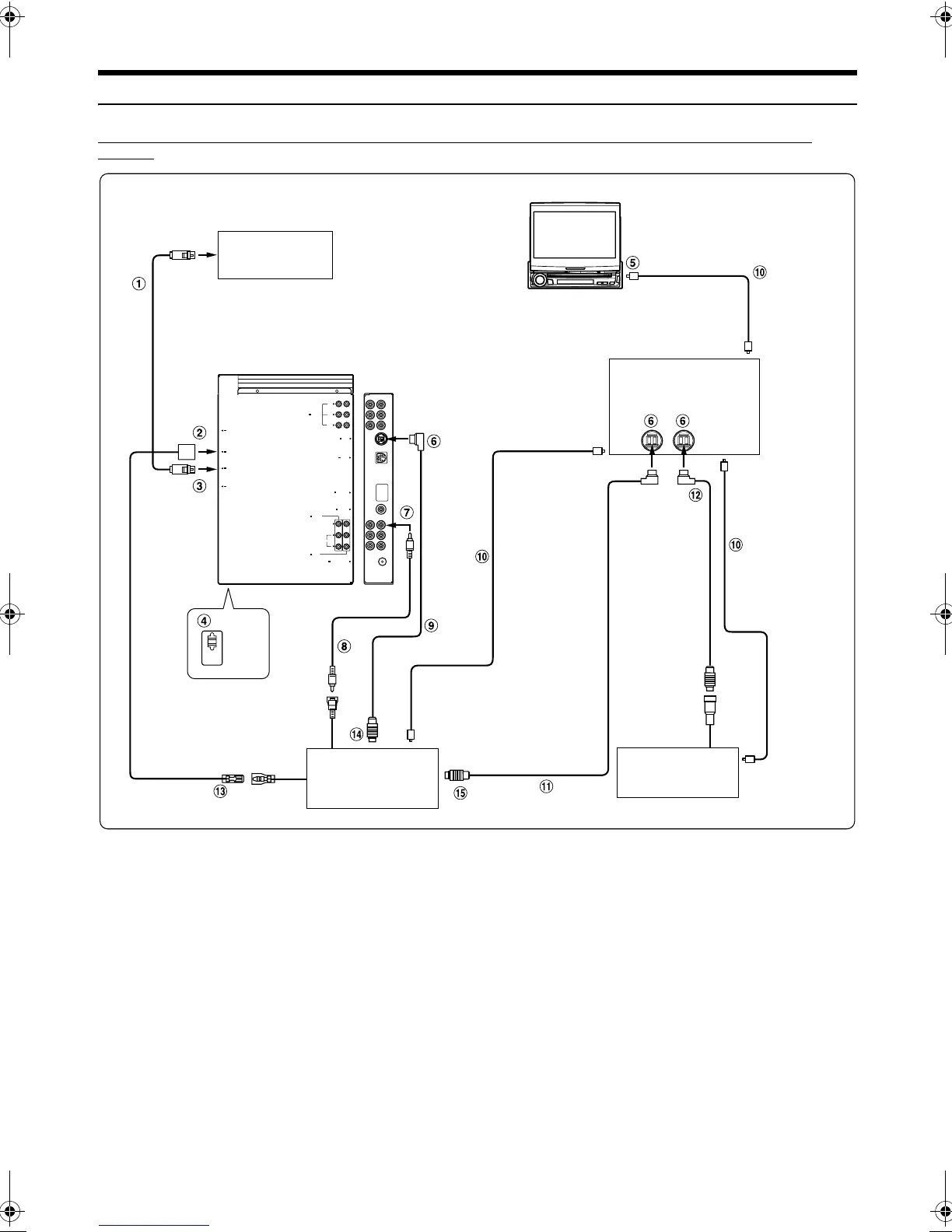

System Example
Connect the Ai-NET compatible audio processor (Fiber digital compatible), Navigation system, DVD player and
changer.
• When the fiber digital compatible product is connected, it is necessary to set the mode of this unit. Refer to “Setting the Digital Output” (page 35)
and set to ON. Then refer to “Optical Digital Input Selection for an External Audio Processor” (page 35) and switch the setting.
• * When connecting with PXA-H510 :
- Connect the fiber digital input terminal to the DVD.
- IVA-D310, DVA-5200, DVA-5205 or DVA-5210 cannot be connected simultaneously when fiber digital is in use.
• When the NVA-N751AS is connected for the Navigation System, use the RGB conversion cable KWE-503N (Sold separately).
Please observe the following when using Fiber Optic Cable.
• Do not coil the Fiber Optic Cable smaller than a 30 mm radius.
• Do not place anything on top of the Fiber Optic Cable.
DISPLAY OUT
NAVIGATION IN
REMOTE IN/ OUT
PRE IN/OUT
Ai-NET
FRONT
L
R
SUBW.
REAR
POWER SUPPLY
AUX OUT
AUX IN
VIDEO
AUDIO
R
L
RADIO ANTENNA IN
CAMERA IN
AV SELECTOR
EXT.OUT
NORM
EQ/DIV
Navigation system
(Sold Separately)
NVE-N852A/NVE-N871A
IVA-D310 Monitor
Fiber optic
cable
*Fiber digital Input terminal
(for head unit)
Audio Processor (Ai-NET)
(Fiber Digital compatible)
(Sold Separately)
IVA-D310 Tuner BOX
Fiber digital
Input terminal
(for DVD
Player)
Ai-NET
cable
Fiber digital
Input terminal
(for Changer)
**Fiber
optic cable
Ai-NET
cable
CD Changer
(Ai-NET)
(Sold Separately)
**Only connect fiber digital compatible CD Changer
DVD Video Player
(Ai-NET)
(DVA-5210 etc.)
(Sold Separately)
Fiber optic cable
REMOTE IN
REMOTE OUT
(White/Brown)
(White/Brown)
(Yellow)
Ai-NET cable
